| Swing Over Bed (mm) | 360 |
|---|---|
| Swing Over X-slide (mm) | 225 |
| Swing Over Gap (mm) | 520 |
| Between Centres (mm) | 750 |
| Bed Width (mm) | 190 |
| Spindle Nose | D1-4 |
| Speeds (no.) | 9 |
| Speed Range (rpm) | 82 – 2,000 |
| Spindle Bore (mm) | 40 |
| Spindle Taper | MT5 |
| Metric Threading (M) | 0.4 – 7.0 |
| Imperial Threading (tpi) | 4 – 56 |
| Tailstock Taper | MT3 |
| Tool Height (mm) | 16 |
| Motor (kW) | 2.25 |
| Voltage (V) | 415 |
| Weight Nett / Gross (kg) | 620 / 720 |
| Volume | 2.166cm |
| Packing Size L x W x H (mm) | 1900 x 760 x 1500mm |
Description
SKU : L--109295
Price per Unit
$12,900.00 (Exc GST)
$14,835.00 (Inc GST)

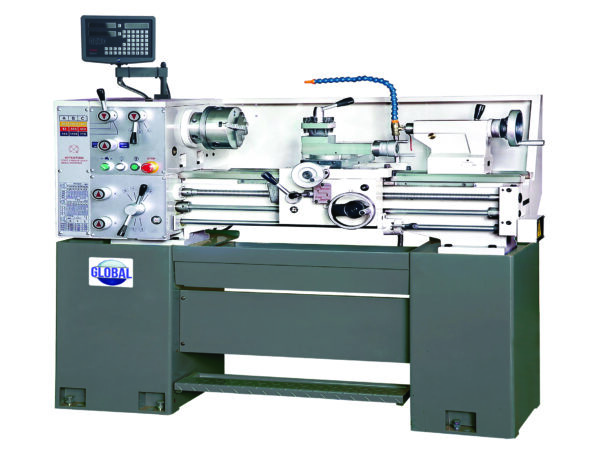

FEATURES:
* Induction hardened & precision ground V-way beds.
* Hardened & ground headstock gears.
* Cast from quality high tensile cast iron.
* Sino 2 axis digital readout.
* Coolant pump & tank system.
* Fitted with a work lamp & foot brake for added safety.
* Quickchange toolpost for speedy tool changing.
* Dual graduation thread dial.
* Gap bed for larger diameter work pieces.
* Manufactured in Taiwan.
| Weight | 720 kg |
|---|---|
| Dimensions | 1.9 × 0.76 × 1.5 cm |
