Hydraulic Guillotine

* Blade gap adjusting dial mounted on side of machine for convenient and accurate alteration for all your material thickness from 0.5 - 4mm. * This dial is designed so that a straightforward rotation clock or anti clockwise to achieve desired plate thickness. * Measurement on dial indicates and refers to actual blade gap distance in millimetres. * CONTROLLER ESTUN E21S. * Control unit mounted on swivel pendant arm. Transfer balls inserted into work table allowing material to be easily moved.

* This Benzel 4.0mm x L2500mm guillotine is the variable rake type * Heavy construction with Motorised Back gauge motor is driven with Invertor * Maximum back gauge travel is 900mm and comes with ball screw for total accuracy * This machine is fitted with the Estun E-245 controller for easy and effective cutting control * Fitted with photo sensor protection at the rear of this machine *

* This Benzel 4.0mm x L3200mm guillotine is the variable rake type * Heavy construction with Motorised Back gauge motor is driven with Invertor * Maximum back gauge travel is 900mm and comes with ball screw for total accuracy * This machine is fitted with the Estun E-245 controller for easy and effective cutting control * Fitted with photo sensor protection at the rear of this machine *

* This Benzel 6.0mm x L3200mm guillotine is the variable rake type * Heavy construction with Motorised Back gauge motor is driven with Invertor * Maximum back gauge travel is 900mm and comes with ball screw for total accuracy * This machine is fitted with the Estun E-245 controller for easy and effective cutting control * Fitted with photo sensor protection at the rear of this machine *

* This Benzel 6.0mm x L4200mm guillotine is a Swing Beam type * Fixed Rake 1.5 degs. * Heavy construction with Motorised Back gauge motor is driven with Invertor * Maximum back gauge travel is 900mm and comes with ball screw for total accuracy * This machine is fitted with the Estun E-10S controller for easy and effective cutting * Fitted with photo sensor protection at the rear of this machine

* All welded frame, highly ridgid, stress relieved * Equipped with 900mm motorised back gauge with precision ballscrews for accurate positioning * Control ststem is Estun E-21S * Rear safeted guards with safety light curtian fitted *

MODEL HSH 6MM X 4200 CONTROLLER Estun E-21S + INVERTOR SHEARING CAPACITY 6mm Mild Steel BLADE LENGTH 4200 mm RAKE

MODEL HSH 12MM X 3200 CONTROLLER Estun E-21S + INVERTOR SHEARING CAPACITY 12mm Mild Steel BLADE LENGTH 3200 mm RAKE

MODEL HSH 10X3200 MM CONTROLLER Estun E10S SHEARING CAPACITY 10 mm BLADE LENGTH 3200 mm RAKE ANGLE VARIABLE 1 Degree

MODEL HSH 16/3200 CONTROLLER Estun E-21S SHEARING CAPACITY 16mm BLADE LENGTH 3200mm RAKE ANGLE VARIABLE No MAX RAKE ANGLE 3.00

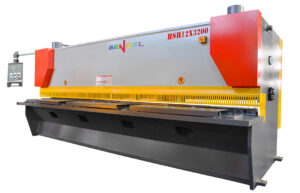

MODEL HSH 20 X 3200 CONTROLLER Estun E-21S SHEARING CAPACITY 20mm Mild Steel BLADE LENGTH 3200mm RAKE ANGLE VARIABLE YES

MODEL HSH 12MM X 4000MM CONTROLLER Estun E-21S + INVERTOR SHEARING CAPACITY 12mm Mild Steel BLADE LENGTH 4000 mm RAKE

MODEL HSH 4 x 2500 CONTROLLER Dalem SHEARING CAPACITY 4.0mm Mild Steel BLADE LENGTH 2500mm RAKE ANGLE VARIABLE No MAX

MODEL HSH 6 x 3200 CONTROLLER Dalem SHEARING CAPACITY 6mm Mild Steel BLADE LENGTH 3200mm RAKE ANGLE VARIABLE No MAX

MODEL QC11Y 12 X 3200 CONTROLLER Delem DAC360T SHEARING CAPACITY 12.0mm Mild Steel BLADE LENGTH 3200mm RAKE ANGLE VARIABLE Yes
