LATHE: GL-1860 460 X 1500MM 80MM BORE, 3 PHASE
Excl. GST: $23,900.00
Incl. GST: $27,485.00
Incl. GST: $27,485.00
LATHE: GLH-330 330 X 1000 X 38MM 1 PHASE (NEW)
Excl. GST: $8,900.00
Incl. GST: $10,235.00
Incl. GST: $10,235.00
Back in Stock Soon

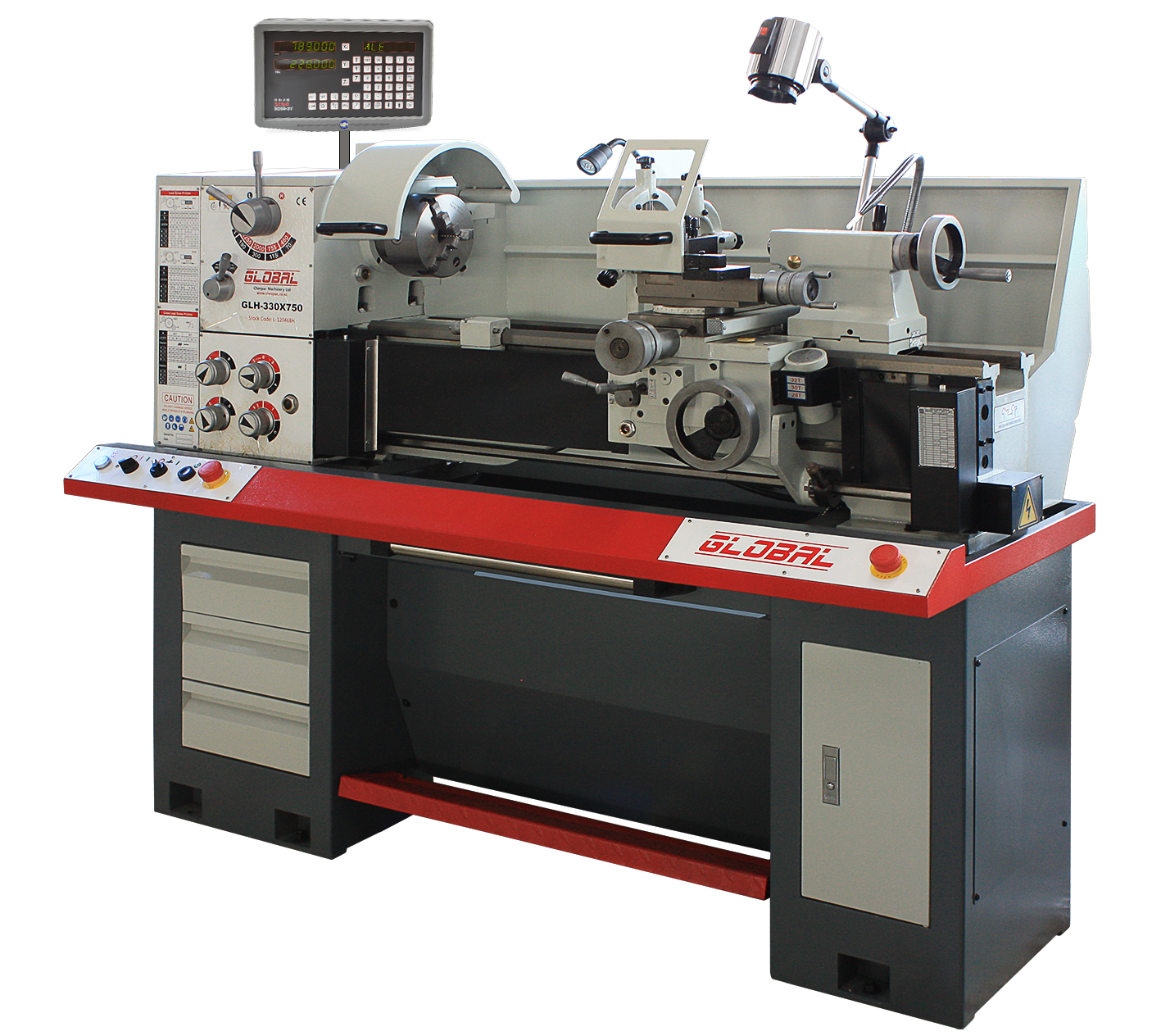

LATHE: GLH-330 330 X 750 X 38MM 1 PHASE (NEW)
Excl. GST: $9,400.00
Incl. GST: $10,810.00
* New Model
* Precision ground and supersonic frequency hardened bedways.
* The spindle is supported with precision roller bearings.
* Head stock gears are made of high quality steel ground and hardened.
* Sealed and easy operating feed box has various feeds and thread cutting functions.
* ASA D1-4 camlock spindle nose.
* Machine is fitted with foot brake & work lamp for extra safety.
* Short bed length and space saving for training institutions.
* Fitted with safety chuck guard.
* Emergency stop buttons both ends of chip tray
| Weight | 375 kg |
|---|---|
| Dimensions | 1.45 × 0.75 × 0.5 cm |
Description
| Swing Over Bed (mm) | 330 |
|---|---|
| Swing Over X-slide (mm) | 194 |
| Swing Over Gap (mm) | 430 |
| Between Centres (mm) | 750 |
| Bed Width (mm) | 170 |
| Spindle Nose | D1-4 |
| Speeds (no.) | 9 |
| Speed Range (rpm) | 90 – 1,800 |
| Spindle Bore (mm) | 38 |
| Spindle Taper | MT5 |
| Metric Threading (M) | 0.4 – 7.0 |
| Imperial Threading (tpi) | 4 – 56 |
| Tailstock Taper | MT3 |
| Tool Height (mm) | 16 |
| Motor (kW) | 1.5 |
| Voltage (V) | 230 |
| Weight Nett / Gross (kg) | 340 / 375 |
| Volume | 0.5438cm |
| Packing Size L x W x H (mm) | 1,600 x 800 x 1,400 |
Shipping & Delivery
Related products
LATHE: GL-1330 330 X 750MM 38MM X 750 38 BORE, 3 PHASE
SKU:
L--110304
* Induction hardened & precision ground V-way beds.
* Hardened & ground headstock gears.
* Adjustable auto stop mechanism for longitudinal travel.
* Sino 2 axis digital readout.
* Coolant pump & tank system.
* Large range of speeds and thread cutting options.
* Fitted with a work lamp & foot brake for added safety.
* Italian style quickchange toolpost.
* Gap bed for larger diameter work pieces.
* Independent leadscrew & feed rod.
LATHE: WM-330BV 330 X 1000 X 51.0MM BORE V/SPEED 1 PHASE
SKU:
L--120000
* The WM-330BV is variable speed with frequency inverter.
* The D1-5 spindle comes with a 51.0mm bore.
* Comes with gap bed for those larger diameter workpieces.
* Automatic feed and thrading are fully interlocked.
* Inductioned hardened and precision ground V bedways.
* Hardened and precision ground headstock gears.
* Fitted with independent leadscrew and feed shaft
LATHE: WM330 330 X 750 X 38MM 1 PHASE
SKU:
L--120467
* Precision ground and supersonic frequency hardened bedways.
* The spindle is supported with precision roller bearings.
* Head stock gears are made of high quality steel ground and hardened.
* Sealed and easy operating feed box has various feeds and thread cutting functions.
* ASA D1-4 camlock spindle nose.
* Machine is fitted with foot brake & work lamp for extra safety.
* Short bed length and space saving for training institutions.
* Fitted with safety chuck guard.
LATHE: L-330A 300 X 910 X 38MM BORE, 1 PHASE
SKU:
L--120500
LATHE: BL-336D 300 X 900 X 38MM BORE DRO, 1 PHASE
SKU:
L--120513
* Induction hardened & precision ground V-way beds.
* D1-4 Spindle is supported by high quality taper rolling bearing
* Automatic feed and threading are fully interlocked.
* Coolant pump & tank system.
* Fitted with a work lamp & foot brake for added safety.
* Quickchange toolpost for speedy tool changing.
* Gap bed for larger diameter work pieces.
* Independent leadscrew & feed rod.
* Carriage mounted spindle control lever.
* Tailstock can be offset for turning tapers.
LATHE: WM 210V 210 X 400 X 20MM BORE 1 PHASE
SKU:
L--165185
* Compact lathe with variable speed control.
* Easy to read digital readout speed display.
* Induction hardened & precision ground bedways.
* Forward/reverse & emergency stop switches.
* Tailstock can be offset for turning tapers.
* Transparent toolpost guard.
* Spindle supported by high precision bearings.
* Adjustable slideway gibs.
* Ideal for hobbyists and small workshops.
* Stand is sold seperately.
LATHE: SHOPTURN-280G 280 X 650 X 26MM BORE G/HEAD 1 PHASE
SKU:
L--165278
* Compact lgeared Head Lathe with 12 speed precision ground gears
* Induction hardened & precision ground bedways.
* Headstock is gear driven in oil bath.
* Forward/reverse & emergency stop switches.
* Tailstock can be offset for turning tapers.
* Covered leadscrews & limit switches for safety.
* Metric & imperial threading dial indicator.
* Extra wide bedway for more capacity.
* Ideal for hobbyists and small workshops.
* Stand is sold seperately.
LATHE: WM-290V-F 290 X 700 X 38MM BORE V/SPEED DC MTR
SKU:
L--165288
* The WF290V-F bench lathe is fitted with a delta inverter and viariable speed control.
* Easy to read digital readout speed display.
* Induction hardened & precision ground bedways.
* Forward/reverse & emergency stop switches.
* Tailstock can be offset for turning tapers.
* Covered leadscrews & limit switches for safety.
* Longitudinal and cross feeds.
* Automatic feed & threading are fully interlocked.
* Fitted with quickchange toolpost.
* Ideal for hobbyists and small workshops.
* Stand is sold seperately.
