TOGGLE CLAMPS
TOGGLE CLAMP: GH-101-A VERT
SKU:
TC-200000
TOGGLE CLAMP: GH-101-B VERT
SKU:
TC-200020
TOGGLE CLAMP: GH-102-B VERT
SKU:
TC-200040
TOGGLE CLAMP: GH-12130 VERT
SKU:
TC-200058
TOGGLE CLAMP: GH-12265 VERT
SKU:
TC-200059
TOGGLE CLAMP: GH-101-D VERT
SKU:
TC-200060
TOGGLE CLAMP: GH-101-D1 VERT
SKU:
TC-200080

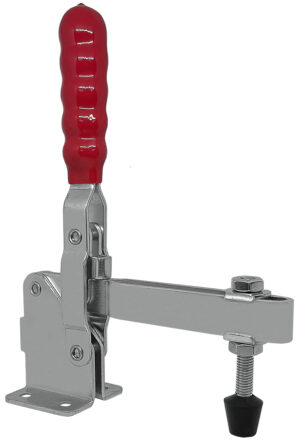

TOGGLE GLAMP: GH-12205 VERT
SKU:
TC-200165
TOGGLE CLAMP: GH-101-J VERT
SKU:
TC-200180
TOGGLE CLAMP: FL-12002B VERT OR GH-11502-B
SKU:
TC-200190
TOGGLE CLAMP: GH-200-W HORZ
SKU:
TC-200200
TOGGLE CLAMP: GH-200-WL HORZ
SKU:
TC-200220
TOGGLE CLAMP: GH-200-WH HORZ
SKU:
TC-200240
TOGGLE CLAMP: GH-220-WH HORZ
SKU:
TC-200260
TOGGLE CLAMP: GH-200-WLH HORZ
SKU:
TC-200280
TOGGLE CLAMP: GH-220-WLH HORZ
SKU:
TC-200300

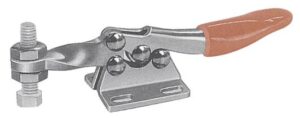

TOGGLE CLAMP: GH-201-A HORZ
SKU:
TC-200320
TOGGLE CLAMP: GH-201-AL HORZ
SKU:
TC-200360
TOGGLE CLAMP: GH-201-B HORZ
SKU:
TC-200380
TOGGLE CLAMP: GH-201-BSS HORZ STAINLESS STEEL
SKU:
TC-200382
TOGGLE CLAMP: GH-204-G HORZ
SKU:
TC-200460
TOGGLE CLAMP: GH-301-A HORZ PUSH TYPE
SKU:
TC-200540
* The GH-301A clamp is suitable for light duty operations
* Each clamp is supplied with pressed steel base
* Close tolerances between the base and plunger allow these clamps to be used for pin locating gauges as well as clamping devices
* Plunger locks in extended or retracted position
* These clamps are supplied with adjustable end screw for fine adjustment
* The GH-301A clamp is supplied with red vinyl hand grip
* Holding capacity is 45kg
* Stroke is 18.0mm with handle locking in horizontal position
* This is a small clamp o/a length is 65.0mm with three hole mounting base
TOGGLE CLAMP: GH-301-B HORZ PUSH TYPE
SKU:
TC-200546
Description:
* The GH-301-B Fast clamp quick release hand tool, 45kg holding capacity push pull
Quick clip is the use of leverage, linkage mechanism, such as the principle of self-locking through steel stamping
Specification
* Model: GH-301-B
* Material: HCS / High Carbon Steel
* Type: Push pull type
* Quantity: 1pc
* Holding Capacity: 45kg
* Handle Opens: 190°
* Plunger Stroke: 16mm
* Spindle Supplied: M4x20
* Quantity: 1pc
* Usage: Toggle Clamp
* DIY Supplies: Metalworking
* Suitable for: Wide machine tools, for production needs to be fixed workpiece machining industries.
TOGGLE CLAMP: GH-302F HORZ PUSH TYPE
SKU:
TC-200580
* The GH-302F clamp is suitable for light medium duty operations
* Each clamp is supplied with a pressed steel base
* Close tolerances between the base and plunger allow these clamps to be used for pin locating gauges as well as clamping devices
* These clamps are supplied with adjustable end screw for fine adjustment
* The GH-302F clamp is supplied with red vinyl hand grip
* Holding capacity is 136kg
* Stroke is 25.0mm with handle locking in a 45deg position
TOGGLE CLAMP: GH-303-E HORZ PUSH TYPE
SKU:
TC-200600
* * The GH-303E clamp is suitable for light medium or heavy duty operations
* Each clamp is supplied with a pressed steel base
* Close tolerances between the base and plunger allow these clamps to be used for pin locating gauges as well as clamping devices
* These clamps are supplied with adjustable end screw for fine adjustment
* The GH-303E clamp is supplied with red vinyl hand grip
* Holding capacity is 454kg
* Stroke is 25.0mm with handle locking in a 45deg position
T

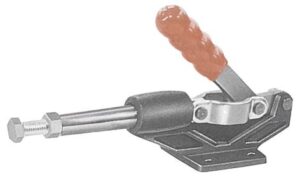

TOGGLE CLAMP: GH-304-CM HORZ PUSH TYPE
SKU:
TC-200620
* The GH-304-CM is a horizontal push clamp
* Cast base with 4 mounting holes
* handle sits at 45 degrees when in the locked position
* The plunger has a threaded end and is supplied with end screw for fine adjustment
* This clamp is supplied with red vinyl hand grip
* Holding capacity 227kg
Very solid clamp and is highly recomended for horizontal clamping
TOGGLE CLAMP: GH-305-C HORZ PUSH TYPE
SKU:
TC-200640
The GH-305E is a horizontal push clamp
* Cast base with 4 mounting holes
* handle sits at 90 degrees when in the locked position
* The plunger has a threaded end and is supplied with end screw for fine adjustment
* This clamp is supplied with red vinyl hand grip
* Holding capacity 227kg
Very solid clamp and is highly recomended for horizontal clamping
TOGGLE CLAMP: GH-304-E HORZ PUSH TYPE
SKU:
TC-200660
The GH-304E is a horizontal push clamp
* Cast base with 4 mounting holes
* handle sits at 45 degrees when in the locked position
* The plunger has a threaded end and is supplied with end screw for fine adjustment
* This clamp is supplied with red vinyl hand grip
* Holding capacity 386kg *
Very solid clamp and is highly recomended for horizontal clamping
