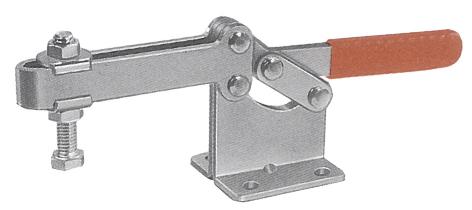

TOGGLE CLAMP: GH-204-GBLH HORZ
Excl. GST: $38.00
Incl. GST: $43.70
* This clamp is supplied with spindle assembly and red plastic hand grip * Holding capacity 630kg *
| Weight | 1.3 kg |
|---|---|
| Dimensions | 0.2 × 0.08 × 0.06 cm |
In stock
Description
| DESCRIPTION | Toggle Clamp |
|---|---|
| MODEL | GH-204-GBLH |
| TYPE | Horizontal Handle When Lock |
| ARM LENGTH | 150mm |
| CLAMPING FORCE | 630Kg |
| WEIGHT NETT/GROSS | 1.298/1.300kg |
| VOLUME | 0.0010cm |
| BASE MEASUREMENT | L83.0mm x W70.0mm |
| BASE HOLE MEASUREMENTS | L57.0mm Centres W51.0mm Centres |
| BASE TO ARM | 71.0mm |
