| MODEL | APK-35 |
|---|---|

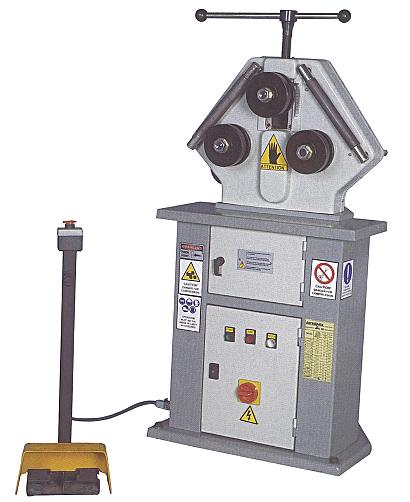

| TYPE | Profile Bending Machine |
| ROLL DIAMETER | 155mm |
| SHAFT DIAMETER | 35.0mm |
| BENDING SPEED | 2.1M/Min |
| CAPACITY ROUND SOLID | 35.0mm dia (800 Min Dia) |
| CAPACITY PIPE | 70 x 2.0mm (1200 Min Dia) |
| CAPACITY SQUARE SOLID | 35 X 35.0mm (1200 Min Dia) |
| CAPACITY RECT SOLID | 120 X 15.0mm (750 Min Dia) |
| CAPACITY ANGLE IRON | 50 X 5.0mm (1200 min Dia) |
| CAPACITY SQUUARE BOX | 60 X 60 X 3.0mm |
| MOTOR | 1.5Kw |
| WEIGHT NETT | 320kg |
| VOLUME | 0.9308cm |
| PACKING SIZE | 730 X 850 X 1500 |
- You cannot add that amount of "SECTIONAL ROLL MACH: G76B 16-76 ROUND & SQUARE TUBE" to the cart because there is not enough stock (0 remaining).
Description
SKU : SRM131665
Price per Unit
$6,105.00 (Exc GST)
$7,020.75 (Inc GST)
FEATURES:
* 2 Rolls are motor driven.
* Machine suitable for doing different profiles such as Round Square Rectangular Angle iron Chennel and T-section.
* Can be used in vertical and horizontal position.
* Havy duty metal fabricated stand.
* Electrical system to CE standard.
| Weight | 320 kg |
|---|---|
| Dimensions | 0.73 × 0.85 × 1.5 cm |
