| Swing Over Bed (mm) | 360 |
|---|---|
| Swing Over X-slide (mm) | 215 |
| Swing Over Gap (mm) | 560 |
| Between Centres (mm) | 750 |
| Bed Width (mm) | 250 |
| Spindle Nose | D1-5 |
| Speeds (no.) | 8 |
| Speed Range (rpm) | 70 – 2000 |
| Spindle Bore (mm) | 42 |
| Spindle Taper | MT5 |
| Metric Threading (M) | 0.5 – 6.0 |
| Imperial Threading (tpi) | 4 – 56 |
| Tailstock Taper | MT3 |
| Motor (kW) | 3.75 |
| Voltage (V) | 415 |
| Weight Nett / Gross (kg) | 900 / 1,100 |
| Volume | 2.4516cm |
| Packing Size L x W x H (mm) | 1955 x 760 x 1450mm |
LATHE: JESSEY PRINCE 1330 (TAIWAN)
$24,000.00

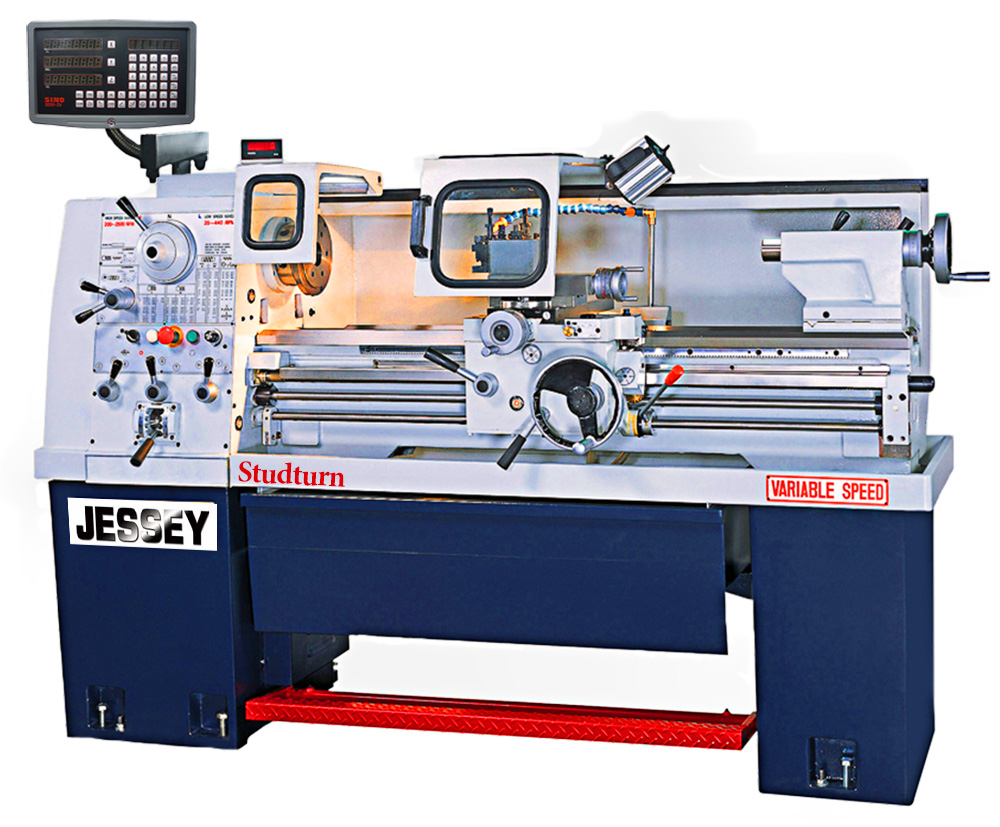

LATHE: JESSEY STUDTURN 1440 (TAIWAN)
$21,000.00
Description
SKU : L--110140
Price per Unit
$20,000.00 (Exc GST)
$23,000.00 (Inc GST)
FEATURES:
* Rigid construction beds are induction hardened and precision ground.
* Harden and ground spindle & gears in headstock for high speed running with low noise.
* Optional two-speed motor with 16 speeds, 35 – 2000rpm.
* Optional variable speed motor, 35 – 2500rpm.
* Smooth, easy speed change selection.
* Feed rod fitted with an overload clutch for safety.
* Comprehensive range of metric, imperial, diametral & modular threads.
* Fitted with 2 axis digital readout & quickchange toolpost.
* Made in Taiwan.
| Weight | 1000 kg |
|---|---|
| Dimensions | 1.955 × 0.76 × 1.65 cm |
Specifications
Description
Reviews (0)
Shipping & Delivery
