| MODEL | HSH 4MM X 2500 |
|---|---|
| CONTROLLER | Estun E-21S + INVERTOR |
| SHEARING CAPACITY | 4mm Mild Steel |
| BLADE LENGTH | 2500 mm |
| RAKE ANGLE VARIABLE | 1 to 2.5 degree |
| MAX RAKE ANGLE | 2.5 Degree |
| SHEET SUPPORT | YES |
| HOLDDOWN CLAMPS | 12pcs |
| HOLDING FORCE | 10 bar |
| BACK GAUGE LENGTH | 900 mm |
| MOTOR | 5.5 Kw |
| LENGTH | 4840 mm |
| WIDTH | 2320 mm |
| HEIGHT | 1620 mm |
| WEIGHT NETT/GROSS | 5800kg |
| VOLUME | 18.1907cm |
Description
SKU : SRH132215
Price per Unit
$23,500.00 (Exc GST)
$27,025.00 (Inc GST)
FEATURES:
* This Benzel 4.0mm x L2500mm guillotine is the variable rake type
* Heavy construction with Motorised Back gauge motor is driven with Invertor
* Maximum back gauge travel is 900mm and comes with ball screw for total accuracy
* This machine is fitted with the Estun E-245 controller for easy and effective cutting control
* Fitted with photo sensor protection at the rear of this machine *
| Weight | 5800 kg |
|---|---|
| Dimensions | 4.84 × 2.32 × 1.62 cm |
Specifications
Description
Reviews (0)
Shipping & Delivery
Related products
HYDRAULIC GUILLOTINE: CNC 12MM X 3200MM VARIABLE RAKE
SKU:
SRH132250
HYDRAULIC GUILLOTINE: HSH 12MM X 3200MM VARIABLE RAKE
SKU:
SRH132227
HYDRAULIC GUILLOTINE: HSH 6MM X 4200MM VARIABLE RAKE
SKU:
SRH132226

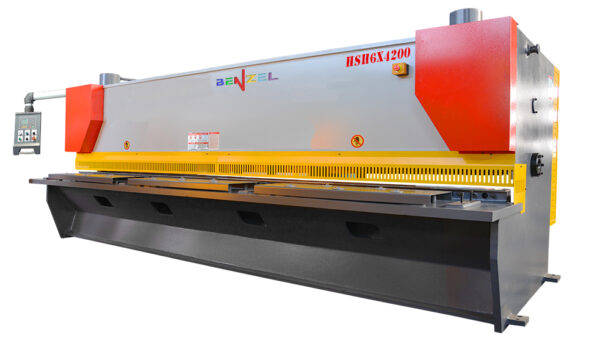

HYDRAULIC GUILLOTINE: BENZEL 6MM X 4200MM Swing Beam
