HYDRAULIC GUILLOTINE: HSH 6MM X 4200MM VARIABLE RAKE
Excl. GST: $42,000.00
Incl. GST: $48,300.00
Incl. GST: $48,300.00
HYDRAULIC GUILLOTINE: BENZEL 10MM X 3200MM
Excl. GST: $45,000.00
Incl. GST: $51,750.00
Incl. GST: $51,750.00

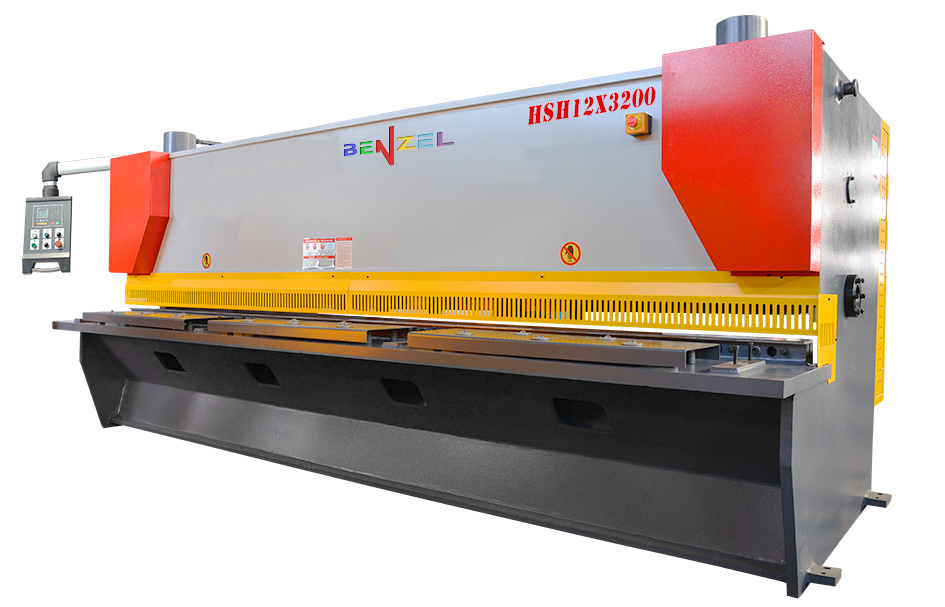

HYDRAULIC GUILLOTINE: HSH 12MM X 3200MM VARIABLE RAKE
Excl. GST: $57,000.00
Incl. GST: $65,550.00
| Weight | 12000 kg |
|---|---|
| Dimensions | 4.5 × 2.45 × 1.6 cm |
Description
| MODEL | HSH 12MM X 3200 |
|---|---|
| CONTROLLER | Estun E-21S + INVERTOR |
| SHEARING CAPACITY | 12mm Mild Steel |
| BLADE LENGTH | 3200 mm |
| RAKE ANGLE VARIABLE | 1 to 2.5 degree |
| MAX RAKE ANGLE | 2.5 Degree |
| SHEET SUPPORT | OPTIONAL |
| NO HOLDDOWN | 12 |
| OIL TANK CAPACITY | 300 L |
| BACK GAUGE LENGTH | 900 mm |
| MOTOR | 18.5 Kw |
| LENGTH | 3945 mm |
| WIDTH | 3050 mm |
| HEIGHT | 2100 mm |
| WEIGHT NETT/GROSS | 12,000 Kg G.W. |
| VOLUME | 17.640cm |
Shipping & Delivery
Related products
HYDRAULIC GUILLOTINE: BENZEL 4MM X 2500MM
SKU:
SRH132211
* Blade gap adjusting dial mounted on side of machine for convenient and accurate alteration for all your material thickness from 0.5 - 4mm
* This dial is designed so that a straightforward rotation clock or anti clockwise to achieve desired plate thickness
* Measurement on dial indicates and refers to actual blade gap distance in millimetres
* Controller: Estun E21S. Control unit mounted on swivel pendant arm
* Transfer balls inserted into work table allowing material to be easily moved
HYDRAULIC GUILLOTINE: BENZEL 6MM X 2500MM
SKU:
SRH132213
* Blade gap adjusting dial mounted on side of machine for convenient and accurate alteration for all your material thickness from 0.5 - 4mm.
* This dial is designed so that a straightforward rotation clock or anti clockwise to achieve desired plate thickness.
* Measurement on dial indicates and refers to actual blade gap distance in millimetres.
* CONTROLLER ESTUN E21S.
* Control unit mounted on swivel pendant arm. Transfer balls inserted into work table allowing material to be easily moved.
HYDRAULIC GUILLOTINE: HSH 4MM x 2500MM VARIABLE RAKE
SKU:
SRH132215
* This Benzel 4.0mm x L2500mm guillotine is the variable rake type
* Heavy construction with Motorised Back gauge motor is driven with Invertor
* Maximum back gauge travel is 900mm and comes with ball screw for total accuracy
* This machine is fitted with the Estun E-245 controller for easy and effective cutting control
* Fitted with photo sensor protection at the rear of this machine *
HYDRAULIC GUILLOTINE: BENZEL 4MM X 4000MM HSH
SKU:
SRH132221
* This Benzel 4.0mm x L4000mm guillotine is the swing beam type
* Heavy construction with Motorised Back gauge motor is driven with Invertor
* Maximum back gauge travel is 900mm and comes with ball screw for total accuracy
* This machine is fitted with the Estun E-215 controller for easy and effective cutting control
* Fitted with photo sensor protection at the rear of this machine
HYDRAULIC GUILLOTINE: BENZEL 6MM X 4200MM Swing Beam
SKU:
SRH132224
* This Benzel 6.0mm x L4200mm guillotine is a Swing Beam type
* Fixed Rake 1.5 degs.
* Heavy construction with Motorised Back gauge motor is driven with Invertor
* Maximum back gauge travel is 900mm and comes with ball screw for total accuracy
* This machine is fitted with the Estun E-10S controller for easy and effective cutting
* Fitted with photo sensor protection at the rear of this machine
HYDRAULIC GUILLOTINE: HSH 6MM X 4200MM VARIABLE RAKE
SKU:
SRH132226
HYDRAULIC GUILLOTINE: CNC 4MM X 2500MM VARIABLE RAKE
SKU:
SRH132244
HYDRAULIC GUILLOTINE: CNC 6MM X 3200MM VARIABLE RAKE
SKU:
SRH132246
