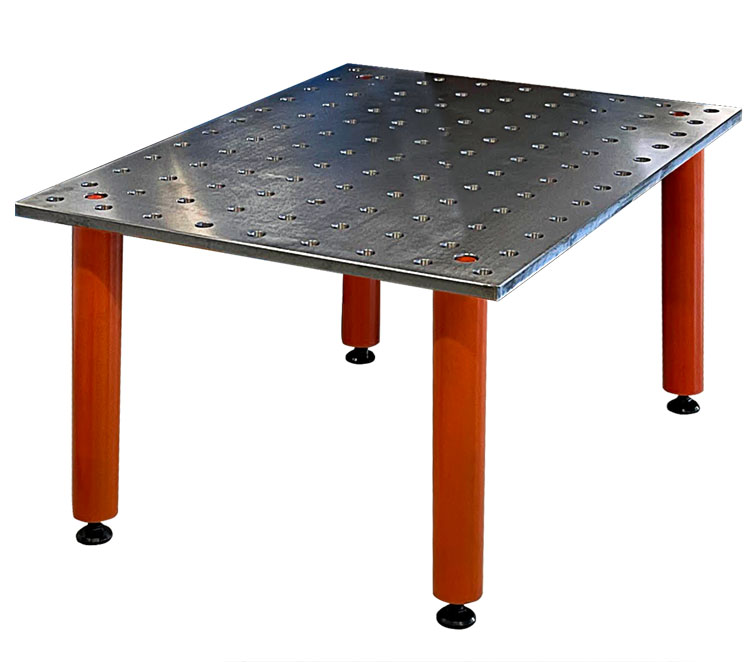

| DESCRIPTION | Welding Table |
|---|---|
| MEASUREMENTS | A:1000mm B:1000mm C:100mm |
| TABLE THICKNESS | 25.0mm |
| SURFACE FINISH | Special Composite Coating |
| SURFACE HARDNESS | HV>600 Core HRC28-35 |
| MATERIAL | Pre-hardened Die Steel |
| HOLE DIAMETER | D28.0mm |
| WEIGHT NETT/GROSS | |
| VOLUME | 0.1815cm |
Description
SKU : WLT20001170
Price per Unit
$5,300.00 (Exc GST)
$6,095.00 (Inc GST)
FEATURES:
* Diimensional assembly worktable D28 series, on the high precision table, every
50mm/100mm interval distributes the D28mm circular hole * These holes can be used to
connect the various function localization module and the fixture, the work board thickness
is about 25mm * The workbench working board is the independent installation, Detachable,
flexible and can be used both sides *
* Working plate made of hardened die steel, specially coated on surface, hardness HV ≥ 600
Table accuracy: flatness ≤ 0.1mm/㎡, verticality ≤ 0.1mm *
* Table is ribbed underneath to prevent distorsion *
| Weight | 3134 kg |
|---|---|
| Dimensions | 1.1 × 1.1 × 0.15 cm |
Specifications
Description
Reviews (0)
Shipping & Delivery
