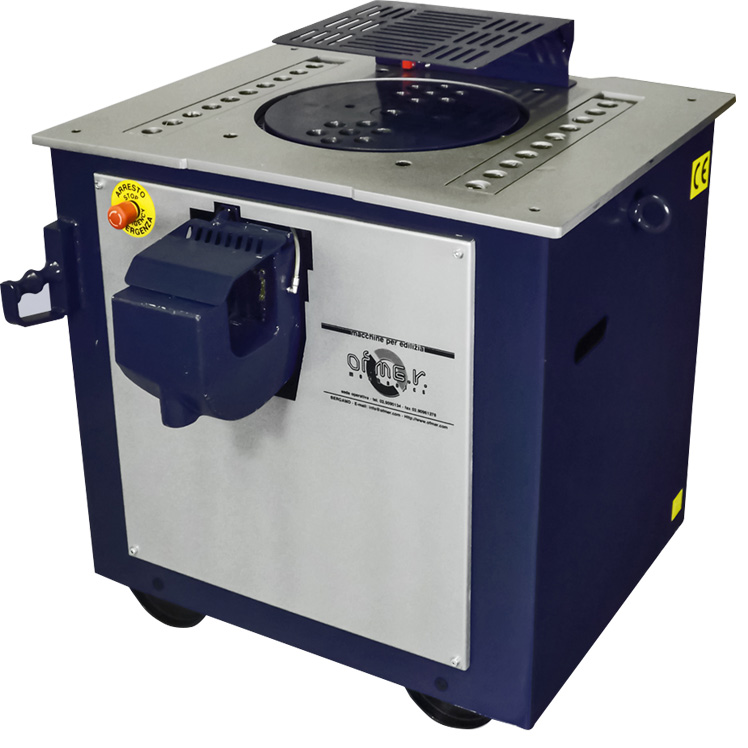

DESCRIPTION: | Combination Bender + Cutter |
---|---|
MODEL | TP40 / 46 |
BENDING CAPACITY R=65 kg/mm² | Ø38 mm Rebar — 1 Ø Ø28 mm Rebar — 2 Ø |
Ø22 mm Rebar — 3 Ø | |
CUTTING CAPACITY | Ø32 mm Rebar — 1 Ø |
Ø22 mm Rebar — 2 Ø | Ø18 mm Rebar — 3 Ø |
MOTOR RATING | 5.5 Hp / 4 kw |
VOLTAGE | 380v 3 Phase |
OTHER ACCESSORIES | |
WEIGHT NETT/GROSS | 640/ 647kg |
VOLUME | 1.323cm |
PACKING L X W X H | L 1,050mm X W 1,200 X H 1,050 |
Description
SKU : BBR131262
Price per Unit
$11,900.00 (Exc GST)
$13,685.00 (Inc GST)
FEATURES:
* Ofmer has been in this market for the past ten years
* Evo by Ofmer is the result of the latest building technologies
* The reduction gearbox and the cutting arm form a monobloc in spheroidal cast iron
* The total absence of welding gives the product considerable strength and sealing.
* All these units are standardly produced with a wide turning plate
* This permits to obtain large curving radii, and that allows to perform the “double bending”
* The self-breaking motor installed on all of these machines are made in Italy
* Motors are designed to optimize and enhance the processing capacity of each unit
* All the electrical components, of the best available brands.
Weight | 647 kg |
---|---|
Dimensions | 1.05 × 1.2 × 0.9 cm |
