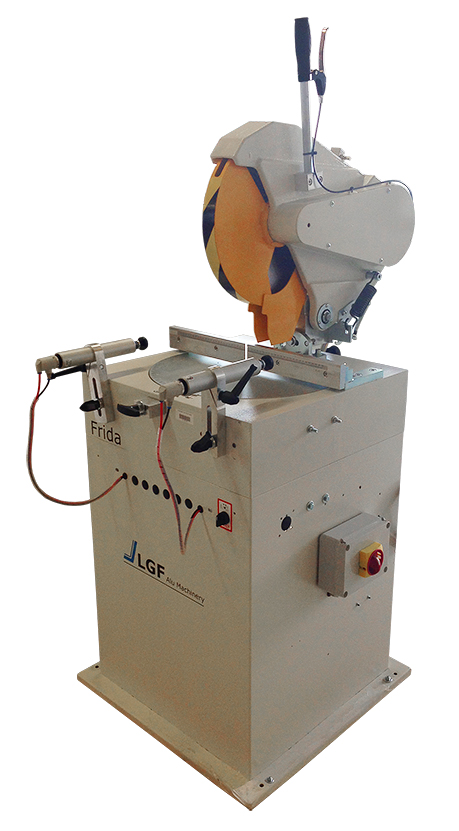

| Description | Compound Mitre Cut Off Saw |
|---|---|
| Brand | Frida |
| Blade Ø (mm) | 400 |
| Bore Ø (mm) | 30 |
| Max Cut 90° (mm) | 195 x 105 |
| Max Cut 45° (mm) | 130 x 105 |
| Voltage (V) | 415 |
| Motor Power (kW) | 1.5 |
| Weight (kg) | 180kg |
| Volume (cm) | 1.1641 |
Description
SKU : ALU301100
Price per Unit
$9,499.00 (Exc GST)
$10,923.85 (Inc GST)
FEATURES:
* High quality Italian machine.
* Cutting off with manual downstroke of the blade.
* Rotating table between 80° and -80°, easy setting to any angle.
* Tilting head from 45° to -45° using mechanical blocking system.
* Horizontal pneumatic clamping system with rubber pads.
* Spray mist lubrication.
* Air filter and air gun.
| Weight | 180 kg |
|---|---|
| Dimensions | 0.85 × 0.83 × 1.65 cm |
Specifications
