| Table Size (mm) | 800 x 240 |
|---|---|
| Drilling Capacity (mm) | 40 |
| Travel X-axis (mm) | 565 |
| Travel Y-axis (mm) | 190 |
| Swing (mm) | 430 |
| Max Nose to Table (mm) | 470 |
| Spindle Taper | MT4 |
| Quill Stroke (mm) | 120 |
| Quill Diameter (mm) | 75 |
| Column Diameter (mm) | Dovetail |
| Speeds (no.) | 6 |
| Speed Range (rpm) | 75 – 1600 |
| Table Slot (mm) | 14 |
| Motor (kW) | 1.1 |
| Voltage (V) | 230 |
| Weight Nett / Gross (kg) | 300kg |
| Volume (m³) | 2.8224 |
| Stand Volume (m³) | 0.166 |
| Stand Weight (kg) | 40 |
| Packing Size L x W x H | 1280 x 1050 x 28224mm |
Description
SKU : MD-330287
Price per Unit
$7,915.00 (Exc GST)
$9,102.25 (Inc GST)

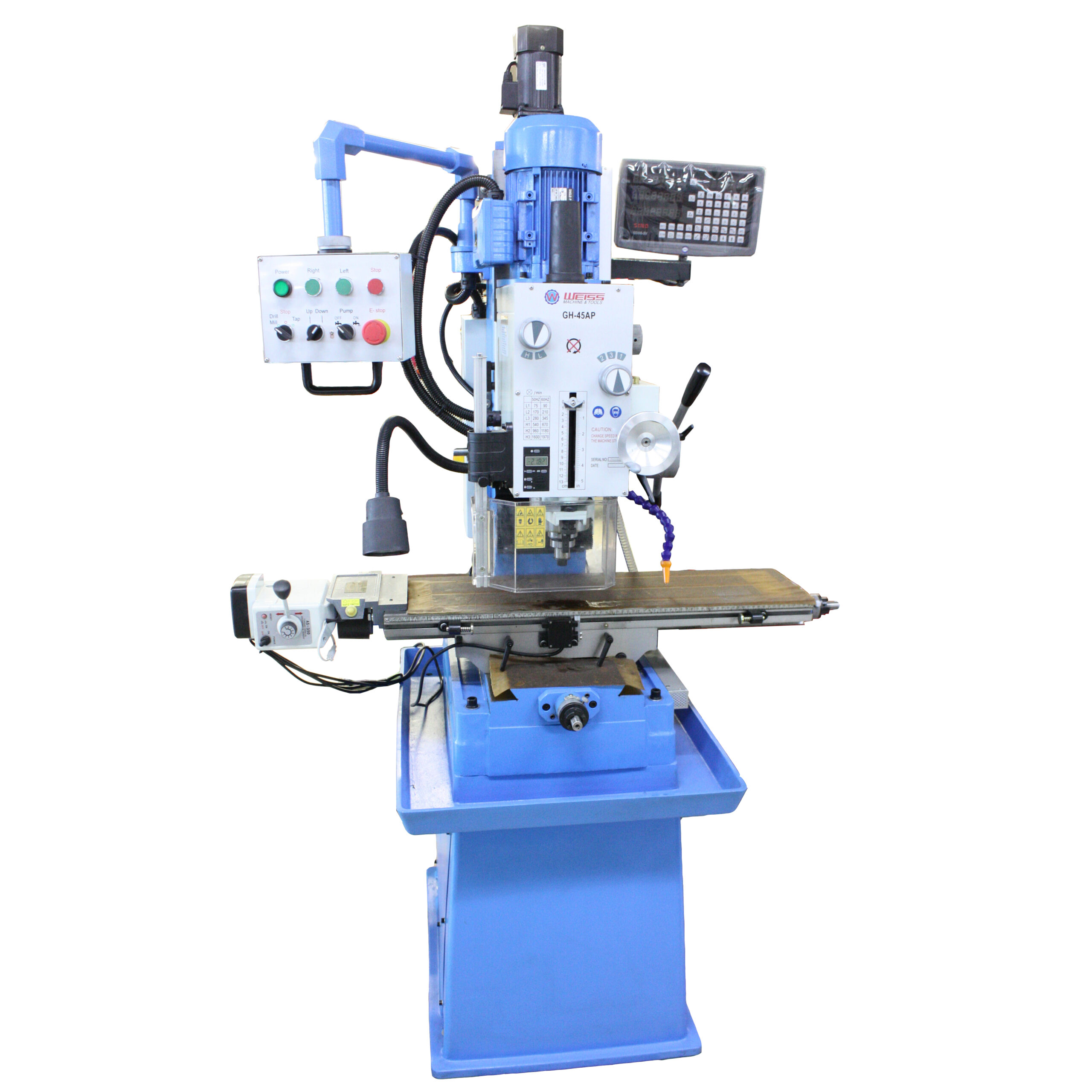

FEATURES:
* This Mill/Drill has a 800x240mm table which is hardened and precision ground
* Head tilts 90 Deg` left & right with graduations for accurate settings
* Spindle is suported with Heavy Duty taper roller bearing for long service life
* Micro downfeed with positive spindle lock
* Ridgid verticle column for chatter free milling
* Adjustable table gibs
* Solid cast stand for stability
* Fittited with coolant system
* Comes with 3 axis DRO including quill travel
* this model has power freed to quill
| Weight | 300 kg |
|---|---|
| Dimensions | 1.28 × 1.05 × 2.1 cm |
Specifications
Description
Reviews (0)
Shipping & Delivery
Related products
MILL/DRILL: ZX-40APC COLUMN TYPE WEISS
SKU:
MD-330380
* The ZX-40APC is a robust column type mill driill.
* Head can be rotated 360° and can be tilted to 45°.
* Equipped with power downfeed on the quill and a MT4 spindle taper.
* The compound table makes this a very verisatile machine.
* Coolant system with reservoir built into the base of the machine.
MILL/DRILL: ZX-40BPC COLUMN WEISS
SKU:
MD-330382
* The ZX-40APC is a robust column type mill driill.
* Head can be rotated 360° and can be tilted to 45°.
* Equipped with power downfeed on the quill and a MT4 spindle taper.
* The compound table makes this a very verisatile machine.
* Coolant system with reservoir built into the base of the machine.

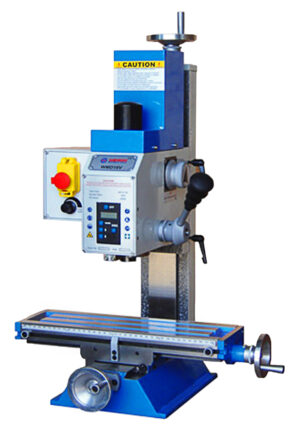

MILL/DRILL: WBM-16A V/SPEED BRUSHLESS MOTOR WEISS
SKU:
MD-330396
* Compact milling & drilling machine with variable speed control.
* Brushless motor provides more power & less maintenance.
* Motor control board manufactured in the U.S.A.
* Digital displays for both speed & depth.
* Geared head for greater torque & quiet running.
* Head is raised & lowered on the dovetail column using a handwheel.
* Spindle is supported by high speed taper roller bearings.
* Fine down feed adjustment.
* Heads can be tilted ±90°.
* These models are ideal for hobbyists and small workshops.
MILL/DRILL: WMD-20L V/SPEED WEISS
SKU:
MD-330400
* Compact milling & drilling machine with variable speed control.
* Brushless motor provides more power & less maintenance.
* Motor control board manufactured in the U.S.A.
* Digital displays for both speed & depth.
* Geared head for greater torque & quiet running.
* Head is raised & lowered on the dovetail column using a handwheel.
* Spindle is supported by high speed taper roller bearings.
* Fine down feed adjustment.
* Heads can be tilted ±90°.
* These models are ideal for hobbyists and small workshops.
MILL/DRILL: WBM-20L V/SPEED BRUSHLESS MOTOR WEISS
SKU:
MD-330402
* The WMD20L is a compact milling & drilling machine with a variable speed control offering speeds from 0 to 2250rpm with a turn of a dial.
* This machine features the new brushless motor which offers more torque than the old model.
* Spindle is supported by high speed taper roller bearings.
* The geared head provides greater torque and quite running.
* Head is raised by handwheel on column with dovetail ways.
* Head can be tilted to 90°.
* This is an ideal machine for modelmakers or any small workshop.

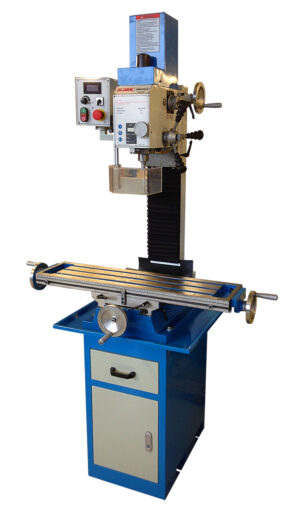

MILL DRILL: WMD-30L 1.5kW WEISS
