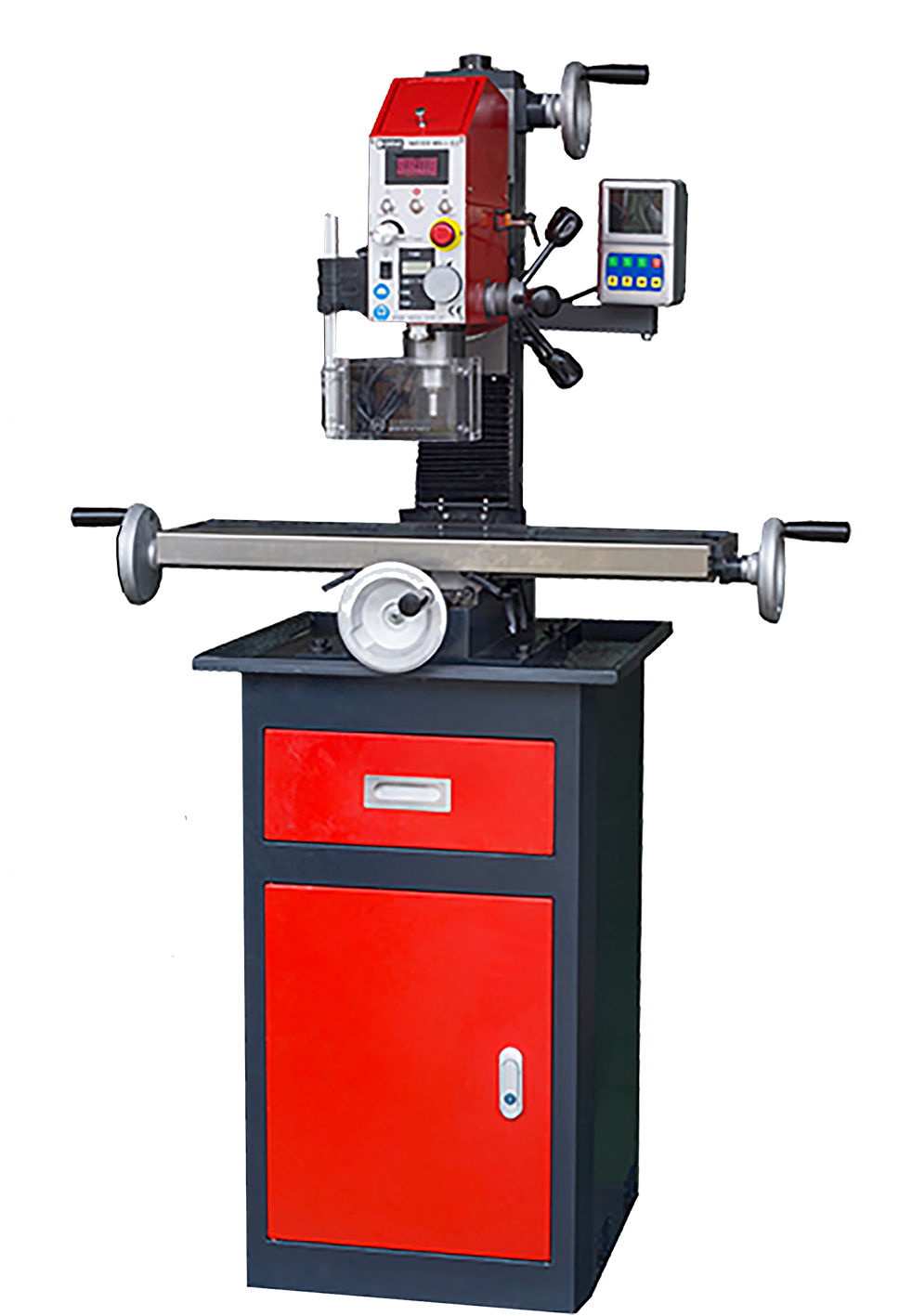

| DESCRIPTION | Milling/Drilling Machine |
|---|---|
| MODEL | E2 |
| TABLE SIZE | 485 |
| MAX DRILLING CAPACITY | 25.0mm |
| END MILLING CAPACITY | 16.0mm |
| FACE MILLING CAPACITY | 63.0mm |
| CROSS TRAVEL | 140mm |
| LONGITUDINAL TRAVEL | 485mm |
| SPINDLE TRAVEL | 75.0mm |
| SPINDLE TAPER | MT3 |
| T-SLOT | 3 x 12.0mm |
| SPINDLE SPEEDS | Variable |
| SPEED RANGE | 100-2500rpm |
| DISTANCE – SPINDLE TO COLUMN | 160mm |
| DISTANCE – SPINDLE TO TABLE | 370mm |
| HEAD TILF – LEFT, RIGHT | +90 Deg |
| MOTOR | Brushless 1100w 230v 1 Phase |
| WEIGHT NETT/GROSS | 155kg |
| VOLUME | 0.5059cm |
Description
SKU : MD-330200
Price per Unit
$5,200.00 (Exc GST)
$5,980.00 (Inc GST)
FEATURES:
* This New E2 machine incorporates most milling functions as well as the normal drilling operations.
* Rigid and durable construction.
* The table is hardened and ground to provide a hard wearing surface.
* A good size compound table allows accurate movement in X & Y direction.
* Fitted with variable speed motor for easy speed change and smooth running.
* This machine is also available with power feed.
| Weight | 155 kg |
|---|---|
| Dimensions | 0.73 × 0.77 × 0.9 cm |
Specifications
Description
Reviews (0)
Shipping & Delivery
Related products
MILL/DRILL: TPC-25 1HP 1PH WEISS
SKU:
MD-330258

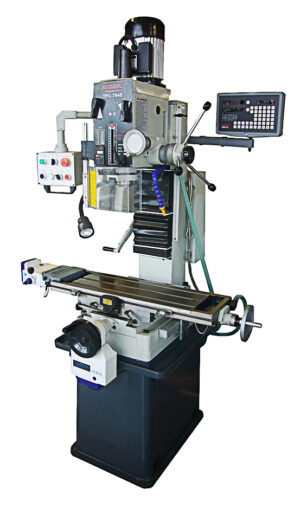

MILL/DRILL: TPC-32 1.5HP 1PH WEISS
SKU:
MD-330260

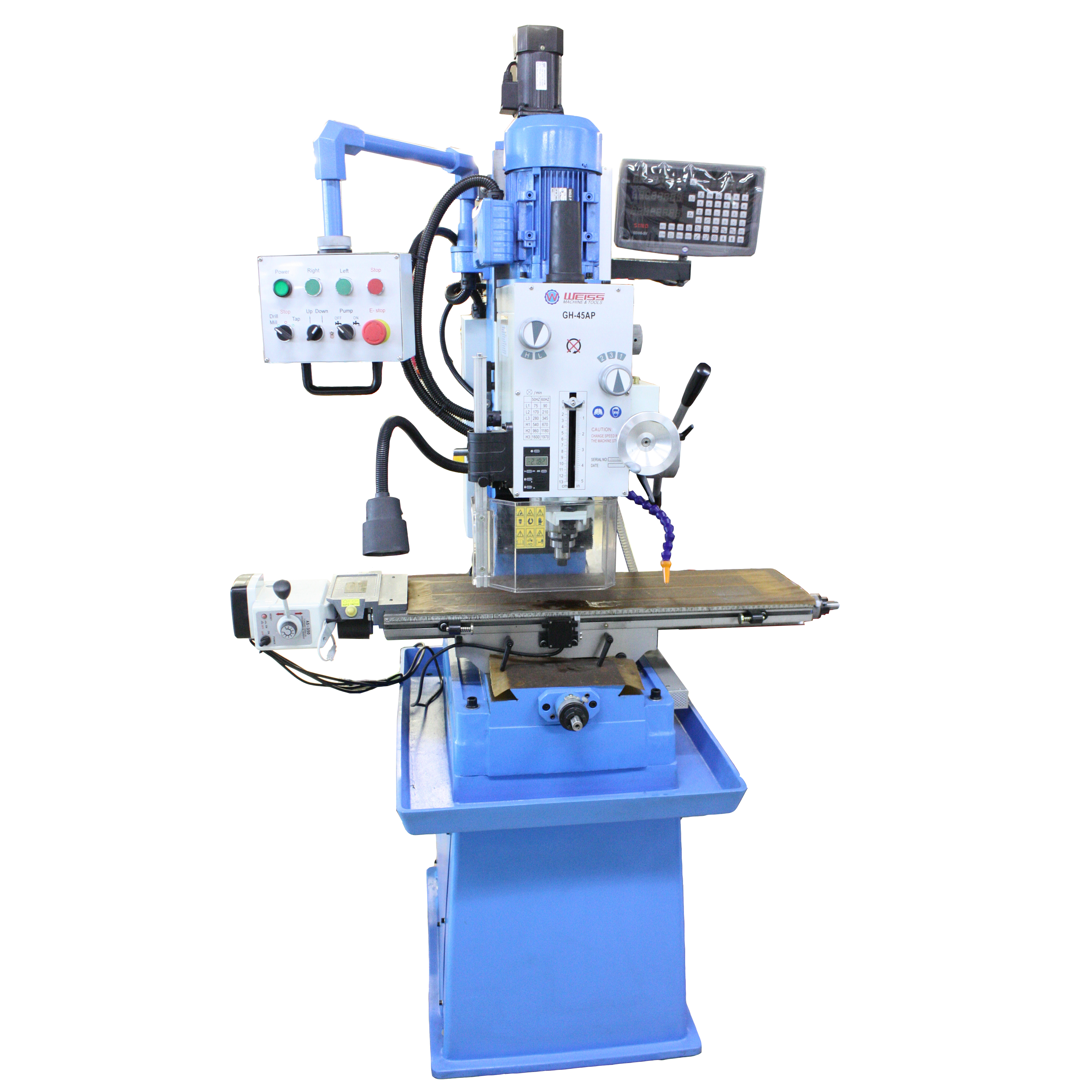

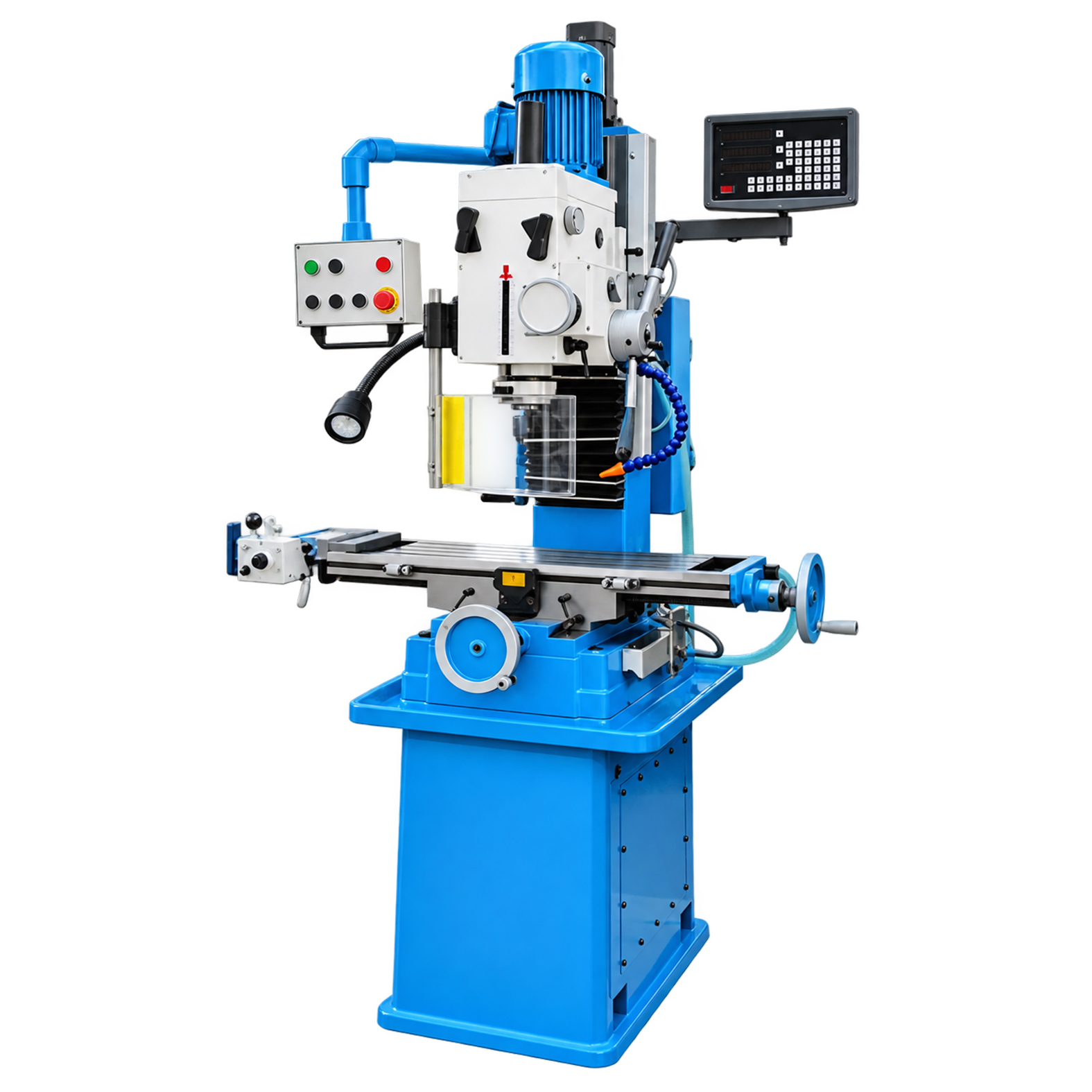

MILL/DRILL: GH-45A DRO P/FEED CAST BASE WEISS
SKU:
MD-330286
* This Mill/Drill has a 800x240mm table which is hardened and precision ground
* Head tilts 90 Deg` left & right with graduations for accurate settings
* Spindle is suported with Heavy Duty taper roller bearing for long service life
* Micro downfeed with positive spindle lock
* Ridgid verticle column for chatter free milling
* Adjustable table gibs
* Solid cast stand for stability
* Fittited with coolant system
* Comes with 3 axis DRO
* Including DRO for quill travel
* Auto feed on quill
MILL/DRILL: WBM-16A V/SPEED BRUSHLESS MOTOR WEISS
SKU:
MD-330396
* Compact milling & drilling machine with variable speed control.
* Brushless motor provides more power & less maintenance.
* Motor control board manufactured in the U.S.A.
* Digital displays for both speed & depth.
* Geared head for greater torque & quiet running.
* Head is raised & lowered on the dovetail column using a handwheel.
* Spindle is supported by high speed taper roller bearings.
* Fine down feed adjustment.
* Heads can be tilted ±90°.
* These models are ideal for hobbyists and small workshops.
MILL/DRILL: WBM-20L V/SPEED BRUSHLESS MOTOR WEISS
SKU:
MD-330402
* The WMD20L is a compact milling & drilling machine with a variable speed control offering speeds from 0 to 2250rpm with a turn of a dial.
* This machine features the new brushless motor which offers more torque than the old model.
* Spindle is supported by high speed taper roller bearings.
* The geared head provides greater torque and quite running.
* Head is raised by handwheel on column with dovetail ways.
* Head can be tilted to 90°.
* This is an ideal machine for modelmakers or any small workshop.
MILL/DRILL: WM-25VL V/SPEED BRUSHLESS MTR P/FEED WEISS
SKU:
MD-330410
* The WMD25L is a compact milling & drilling machine with a variable speed control offering speeds from 0 to 2250rpm with a turn of a dial.
* This machine features a brushless motor which offers consistant torque at all speeds.
* Spindle is supported by high speed taper roller bearings.
* Head is raised by handwheel on column with dovetail ways.
* Head can be tilted to 90°.
* This is an ideal machine for modelmakers or any small workshop
* Fitted with table power feed
MILL DRILL: WMD-30V 1.5HP 1PH WEISS
SKU:
MD-330422
* The WMD30V is a compact milling & drilling machine with a variable speed control offering speeds from 0 to 2250rpm with a turn of a dial.
* This machine features a brushless motor which offers consistant torque at all speeds.
* Spindle is supported by high speed taper roller bearings.
* The geared head provides greater torque and quite running.
* Head is raised by handwheel on column with dovetail ways.
* Head can be tilted to 90°.
* This is an ideal machine for modelmakers or any small workshop.

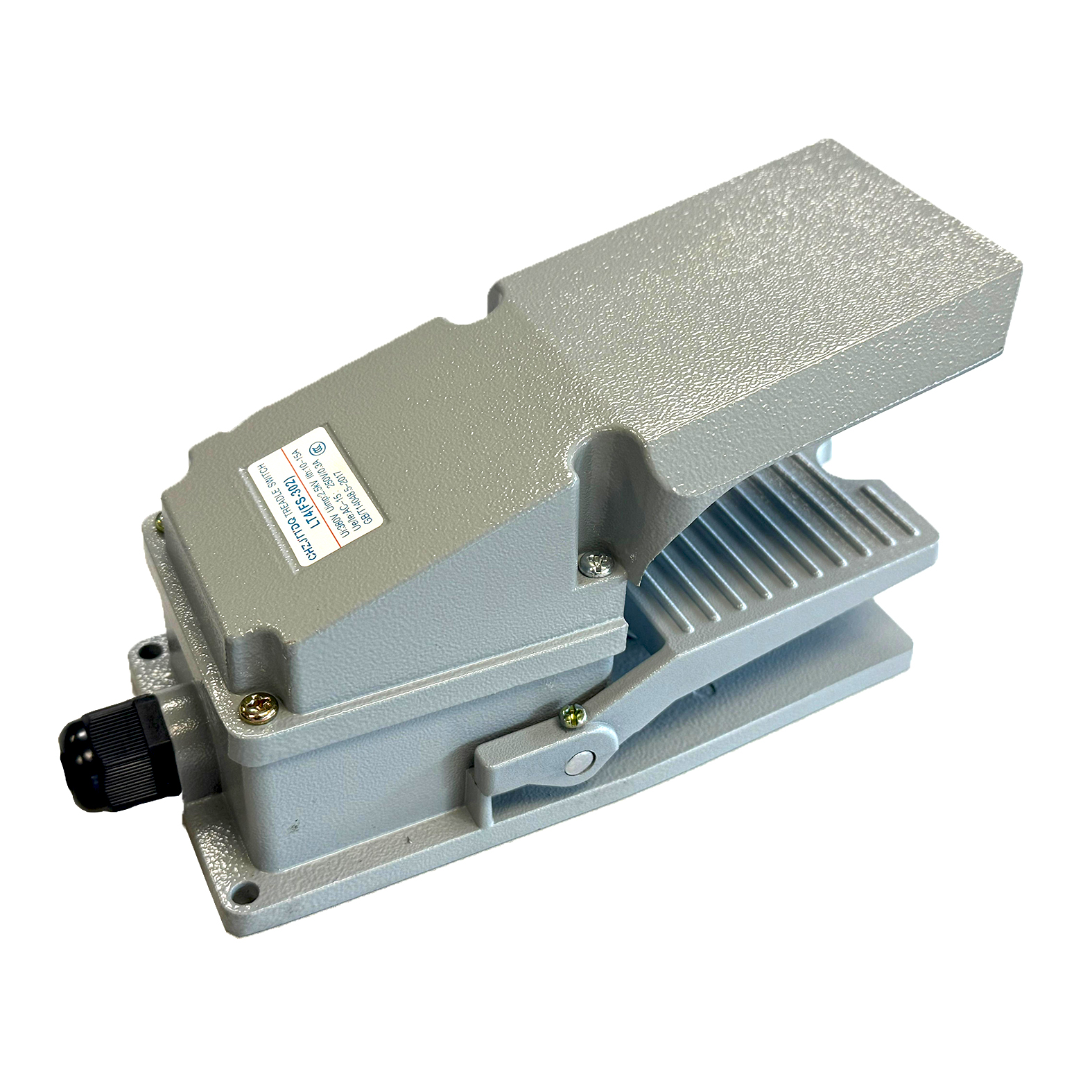

FOOT SWITCH: SUIT VM25L & VM32L
