| Swing Over Bed (mm) | 240 |
|---|---|
| Swing Over X-slide (mm) | 135 |
| Swing Over Gap (mm) | N/A |
| Between Centres (mm) | 600 |
| Bed Width (mm) | 132 |
| Spindle Nose | Threaded |
| Lathe Speeds (no.) | Variable |
| Lathe Speeds (rpm) | 50 – 2,000 |
| Milling Speeds (no.) | Variable |
| Milling Speeds (rpm) | 50 – 2,250 |
| Spindle Bore (mm) | 26 |
| Metric Threading (M) | 0.2 – 3.5 |
| Imperial Threading (tpi) | 8 – 56 |
| Tailstock Taper | MT2 |
| Spindle Taper (Mill) | MT2 |
| Lathe Motor (kW) | 1.5 |
| Mill Motor (kW) | 0.6 |
| Voltage (V) | 230 |
| Weight Nett / Gross (kg) | 250 / 260 |
| Volume (m³) | 0.96 |
Description
SKU : L--120480
Price per Unit
$0.00 (Exc GST)
$0.00 (Inc GST)
FEATURES:
* Variable speed controls on both lathe & milling head.
* Induction hardened & precision ground bedways.
* Powerful 1.5kW lathe motor
* Large 38mm spindle bore.
* Fine down feed adjustment of the milling head.
* Milling head can be tilted ±90°.
* Fitted with a digital readout & quickchange toolpost.
* Stand is sold seperately.
| Weight | 260 kg |
|---|
Specifications
Description
Reviews (0)
Shipping & Delivery
Related products

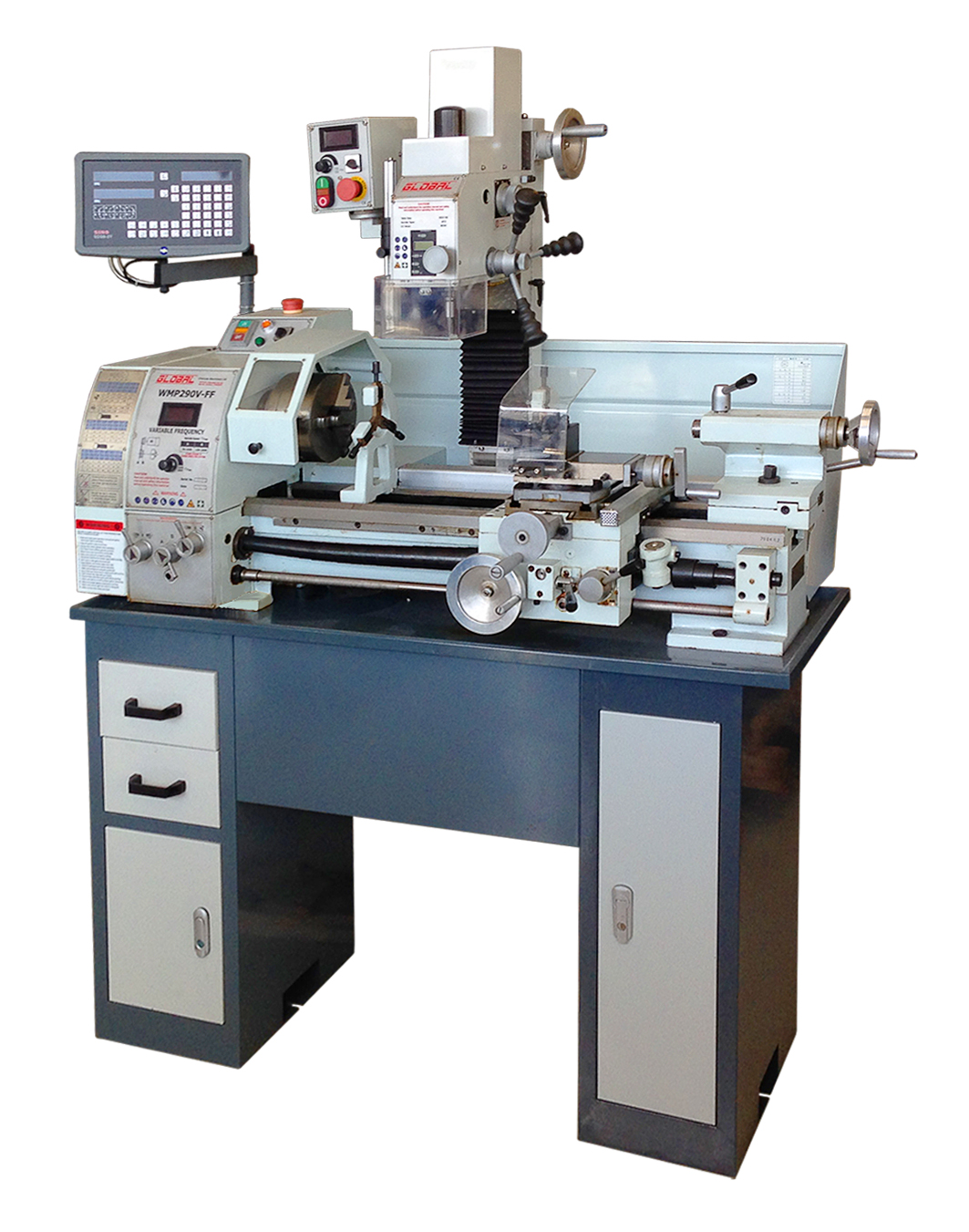

LATHE/MILL: WMP290V-F V/SPD 1 PHASE
SKU:
L--120482
* Variable speed controls on both lathe & milling head.
* Induction hardened & precision ground bedways.
* Powerful 1.5kW lathe motor
* Large 38mm spindle bore.
* Fine down feed adjustment of the milling head.
* Milling head can be tilted ±90°.
* Fitted with a digital readout & quickchange toolpost.
* Stand is sold seperately.
