| Swing Over Bed (mm) | 660 |
|---|---|
| Swing Over X-slide (mm) | 420 |
| Swing Over Gap (mm) | 870 |
| Between Centres (mm) | 3,000 |
| Bed Width (mm) | 405 |
| Spindle Nose | D1-8 |
| Speeds (no.) | 12 |
| Speed Range (rpm) | 36 – 1,600 |
| Spindle Bore (mm) | 105 |
| Spindle Taper | MT5 |
| Metric Threading (M) | 1 – 14 |
| Imperial Threading (tpi) | 2 – 28 |
| Tailstock Taper | MT5 |
| Tool Height (mm) | 20 |
| Motor (kW) | 9 |
| Voltage (V) | 415 |
| Weight Nett / Gross (kg) | 4,200 / 4,500 |
| Volume (m³) | 7.18 |
| Packing Size L x W x H (mm) |
Description
SKU : L--120442
Price per Unit
$27,766.00 (Exc GST)
$31,930.90 (Inc GST)
FEATURES:
* Supersonic frequency hardened bedways.
* Hardened & ground headstock gears.
* Triple headstock spindle bearings.
* 105mm spindle bore for turning large shafts.
* Fitted with a powerful 9kW motor.
* No gear changing required to cut metric & imperial threads.
* Fitted with Sino 2 axis digital readout, taper turning attachment & quickchange toolpost.
| Weight | 4500 kg |
|---|
Specifications
Description
Reviews (0)
Shipping & Delivery
Related products
LATHE: GL-3040 CHUCK 1600MM WITH 4PC JAWS
SKU:
L--110181
LATHE: GL-3040 OPEN SUPPORT STANDING LATHE
SKU:
L--110182
LATHE: GL-3040 FACE PLATE 300mm
SKU:
L--110210
LATHE: LA-560 560 X 1100 X 80MM BORE (TAIWAN)
SKU:
L--110250
LATHE: CWA61100 1000 X 8000 X 105MM BORE
SKU:
L--120156
* This CWA61100 lathe offers precision ground & supersonic frequency hardened bedways.
* Double wall structure provides super rigidity and accuracy.
* Extra large 105mm spindle bore.
* Optimised design of the main drive.
* Precision ground headstock gears.
* Machine operation does not require gear changes.
* This lathe can turn up to 200 kinds of metric, whitworth, module & DP threads.
* Auto stop device and footbrake offer quick & effective stopping.

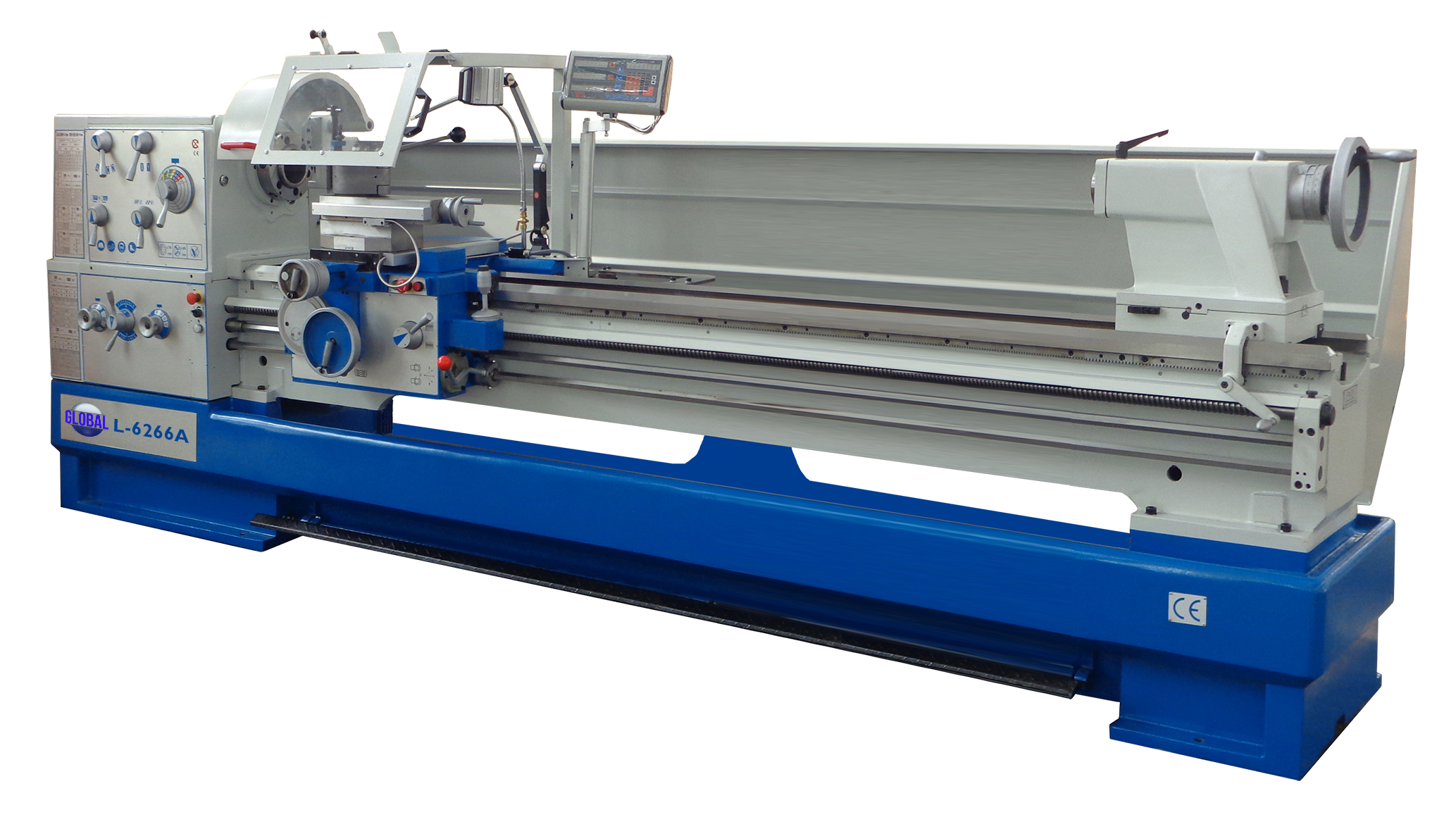

LATHE: L-6266A 660 X 3000 X 105MM BORE
