| Swing Over Bed (mm) | 360 |
|---|---|
| Swing Over X-slide (mm) | 224 |
| Swing Over Gap (mm) | 502 |
| Between Centres (mm) | 1,000 |
| Bed Width (mm) | 187 |
| Spindle Nose | D1-4 |
| Speeds (no.) | 8 |
| Speed Range (rpm) | 70 – 2,000 |
| Spindle Bore (mm) | 38 |
| Spindle Taper | MT5 |
| Metric Threading (M) | 0.1 – 7.0 |
| Imperial Threading (tpi) | 4 – 112 |
| Tailstock Taper | MT3 |
| Tool Height (mm) | 16 |
| Motor (kW) | 1.5 |
| Voltage (V) | 230 |
| Weight Nett / Gross (kg) | 600 / 700 |
| Volume (m³) | 2.1825 |
| Packing Size L x W x H (mm) | 1,940 x 750 x 1,500 |
Description

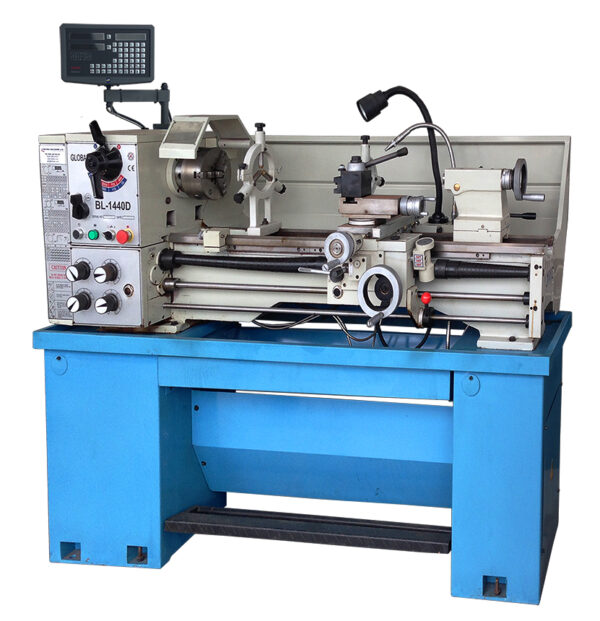

SKU : L--120518
Price per Unit
$6,900.00 (Exc GST)
$7,935.00 (Inc GST)
FEATURES:
* Induction hardened & precision ground V-way beds.
* Spindle supported by high quality taper roller bearings.
* Sino 2 axis digital readout.
* Coolant pump & tank system.
* Large range of speeds and thread cutting options.
* Fitted with a work lamp & foot brake for added safety.
* Quickchange toolpost for speedy tool changing.
* Gap bed for larger diameter work pieces.
* Carriage mounted spindle control lever.
* Auto feed & threading fully interlocked.
* Tailstock can be offset for turning tapers.
* This lathe is available with an imperial leadscrew, indent only.
