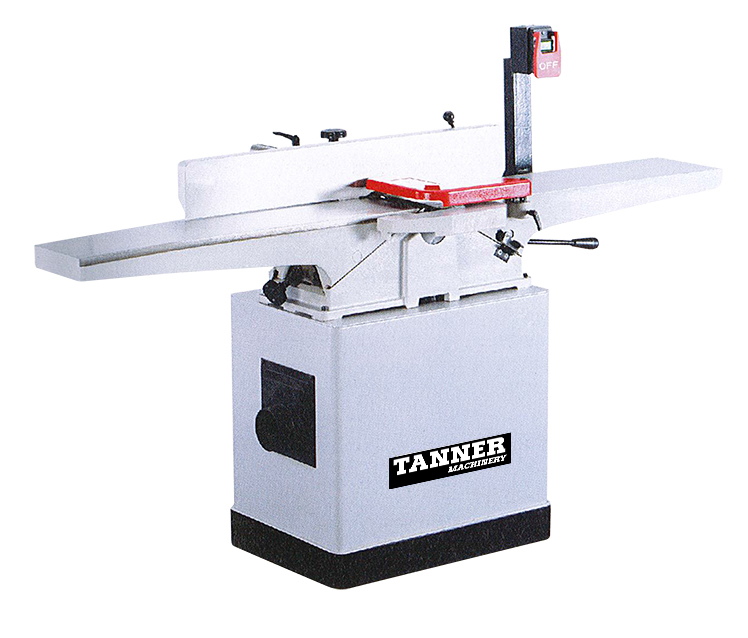

JOINTER: TANNER TPC-8 8″ 1PH TABLE 1832MM
$1,595.00
* This Professional model 8″ jointer comes with a powerful 2hp single phase motor
* Large 1800mm table
* Four knife cutterhead running at 4800rpm to give a smooth finish to the workpiece
* The fence is adjusted by rack and pinion for accuracy and speed
* Fence can be tilted to 45 degrees in both directions
* Fully enclosed steel cabinet with dust connecter built-in
* Comes with English sliding guard (not shown in picture)
* Controls are on a central mount for convenience and safety
* Infeed table is adjusted by leaver action
| Weight | 208 kg |
|---|---|
| Dimensions | 1.85 × 0.45 × 0.3 cm |
Description
| Cutting Width (mm) | 203 |
|---|---|
| DESCRIPTION | Jointer 8″ |
| MODEL | TPC-8 |
| Max Cutting Depth (mm) | 12.7 |
| Table Length (mm) | 1,800 |
| Cutter Head (mm) | 75 |
| Knives (no.) | 4 |
| Blade Size (mm) | 205 x 20 x 3 |
| Speed (rpm) | 4,800 |
| Motor (kW) | 1.5 |
| Voltage (V) | 240 |
| Dimensions L x W x H (mm) | 1,910 x 450 x 300mm |
| Volume (m³) | 0.2498 |
| Weight (kg) | 208 |
| Stand Dimensions L x W x H (mm) | 655 x 455 x 615 |
| Satnd Volume (m³) | 0.18 |
| Stand Weight (kg) | 50 |
| Total Volume | 0.44m³ |
