JOINTER: TANNER TPC-6 6" 1 PH TABLE 1210MM O/STAND
Excl. GST: $995.00
Incl. GST: $1,144.25
Incl. GST: $1,144.25
JOINTER: TANNER TPC-6 6" 1 PH TABLE 1535MM
Excl. GST: $1,190.00
Incl. GST: $1,368.50
Incl. GST: $1,368.50
JOINTER: TANNER TPC-6 6″ 1 PH TABLE 1210MM C
Excl. GST: $1,295.00
Incl. GST: $1,489.25

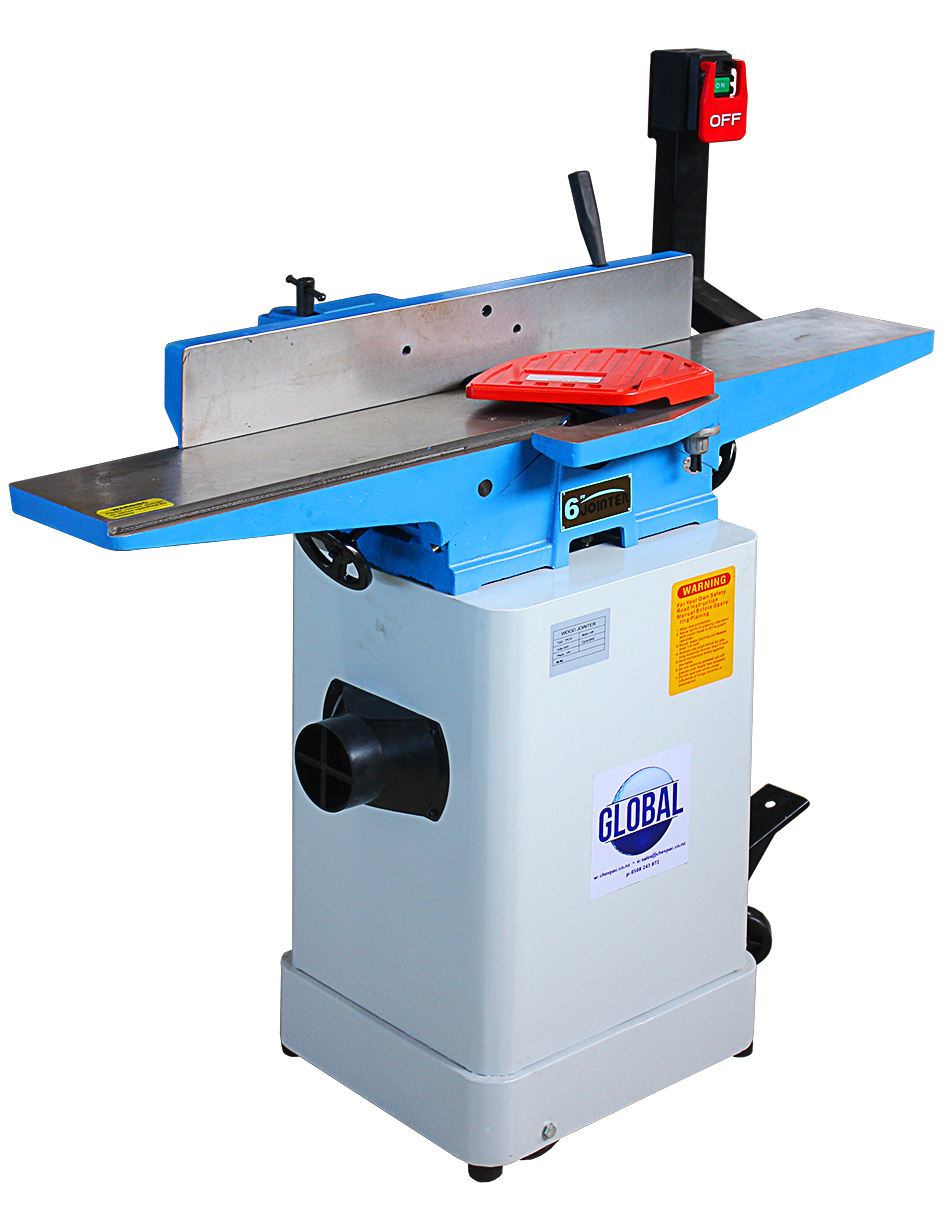

* This TPC-6 comes with powerful 1hp motor.
* Cutterhead is 65mm in diameter.
* Fitted with three knives and runs at 4,400rpm to ensure a smooth finish on the workpiece.
* The fence is equiped with a tilt scale which is clear and easy to read.
*Fence can be tilted to 45° in both directions.
* Fully enclosed delux stand with built-in dust connecter for easy hook-up.
* The machine comes with English type sliding guard.
* Castor wheels for mobility.
| Weight | 84 kg |
|---|---|
| Dimensions | 1.4 × 0.495 × 0.275 cm |
Description
| DESCRIPTION | Jointer 6″ |
|---|---|
| MODEL | TPC-6 |
| Cutting Width (mm) | 153 |
| MAx Cutting Depth (mm) | 13 |
| Cutting Capacity (mm) | 12.7 |
| Table Size L x W (mm) | 245 x 1,210 |
| Cutter Ø (mm) | 65 |
| Knives (no.) | 3 pcs |
| Blade Size L x W x H (mm) | 154 x 16.5 x 2.7 |
| Speed (rpm) | 4,400 |
| Motor (kW) | 0.75 |
| Voltage (V) | 230 |
| Weight Nett / Gross (kg) | 82 / 84kg |
| Volume (m³) | 0.1906 |
Shipping & Delivery
Related products
JOINTER: TANNER MB502 6″ 1 PHASE
SKU:
BZ-330120
JOINTER: TANNER TPC-6 6″ 1 PH TABLE 1210MM O/STAND
SKU:
BZ-330134
* The W0109 is the standard 6" jointer in the Tanner range
* Closed in stand
* Fitted with the English guard (Not shown in this photo )
* Infeed table features cast-iron support ledge for rabbeting operations
* Fence size 98 x 740mm
* Fence tilt to 45 degrees
* Rebate 13 x 152mm
* Fitted with no-volt overload switch
JOINTER: TANNER TPC-6 6″ 1 PH TABLE 1535MM
SKU:
BZ-330138
* This W0106F Tanner jointer is the profecional model
* Extra long table (1535mm) for finish accuracy of the workpiece
* Upstand controls for easy operation
* Delux closed in stand
* Dust chute with 4" dust port for efficient dust and chip extraction
* Fence size 124 x 889mm
* Fence tilt to 45 degrees
* Fitted with english type guard ( not shown in this photo )
* Rebate cap i13 x 152mm
JOINTER: TANNER TPC-12 12″ 1PH 3HP TABLE 2110MM
SKU:
BZ-331400
* The Tanner W0101 jointer is a heavy constructed machine
* Comes with rack and pinion fence adjustment
* The fence is 1200mm long with positive stops on 90 degrees and 45 degrees
* Fence can tilti both in and out
* The heavy all steel cabinet offers the machine stability and rigidity
* The price represents very good value for this size machine
* Conveniently positioned magnetic switch is placed high above the table in full operator view for quick access
JOINTER: TANNER TPC-12 12″ 3HP 3PH TABLE 2110MM
SKU:
BZ-331410
* The TPC-12-3 is a heavy constructed machine with lever action for table rise and fall
* The fence is 1200mm long with positive stops on 90ø and 45ø tilting both in and out
* The heavy all steel cabinet offers the machine stability and rigidity
* The price represents very good value for this size machine
JOINTER: TANNER MB-524M 16″ 3HP 3KW TABLE 2500MM S/HEAD
SKU:
BZ-331420
* The MB-524 is a heavy constructed machine with lever action for table rise and fall
* The fence is 1200mm long with positive stops on 90ø and 45ø tilting both in and out
* The heavy all steel cabinet offers the machine stability and rigidity
* Fitted with english type guard
* The price represents very good value for this size machine
