JOINTER: TANNER MB-524 16" 3HP 3KW TABLE 2500MM S/HEAD
Excl. GST: $6,500.00
Incl. GST: $7,475.00
Incl. GST: $7,475.00
SPIRAL CUTTER HEAD: 8" MODEL WITH CARBIDE INSERTS
Excl. GST: $995.00
Incl. GST: $1,144.25
Incl. GST: $1,144.25

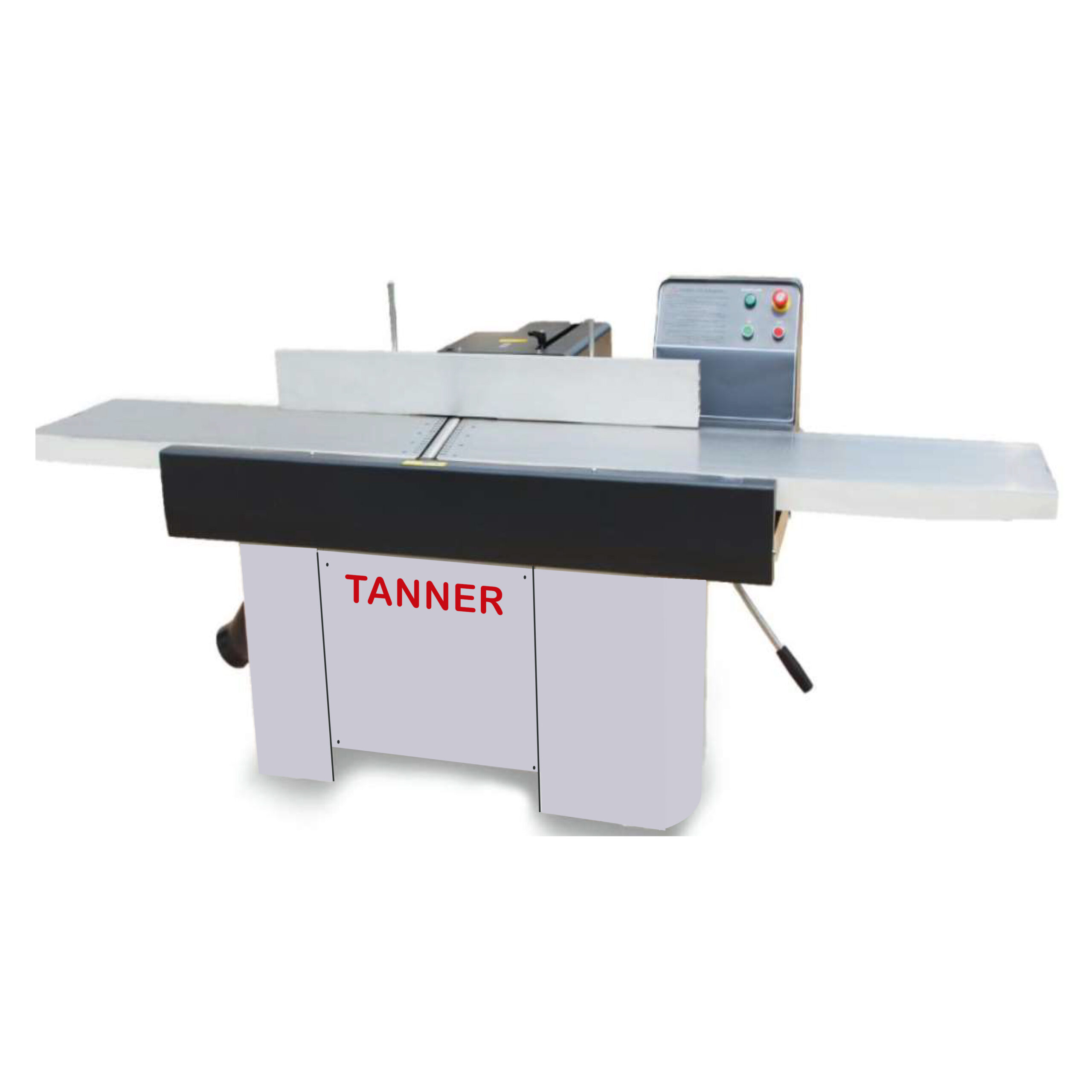

JOINTER: TANNER MB-524M 16″ 3HP 3KW TABLE 2500MM S/HEAD
Excl. GST: $7,690.00
Incl. GST: $8,843.50
* The MB-524 is a heavy constructed machine with lever action for table rise and fall
* The fence is 1200mm long with positive stops on 90ø and 45ø tilting both in and out
* The heavy all steel cabinet offers the machine stability and rigidity
* Fitted with english type guard
* The price represents very good value for this size machine
| Weight | 350 kg |
|---|---|
| Dimensions | 2.6 × 0.66 × 0.8 cm |
Description
| DESCRIPTION | Jointer 16″ 3hp |
|---|---|
| MODEL | MB5524M |
| CUTTING WIDTH | 410mm |
| MAX CUTTING DEPTH | 4.0mm |
| LENGTH OF TABLE | 2500mm |
| CUTTER HEAD | Spiral HelicalHead |
| INSERTS | |
| CUTTER HEAD DIAMETER | 80.0mm |
| SPEED | 5700rpm |
| MOTOR | 3kw 3 Phase |
| WEIGHT NETT/GROSS | 275/350kg |
| VOLUME | 1.3728cm |
| STAND VOLUME | Included |
| PACKING L X W X H | 2600 x 660 x 800mm |
Shipping & Delivery
Related products
JOINTER: TANNER MB502 6″ 1 PHASE
SKU:
BZ-330120
JOINTER: TANNER TPC-6 6″ 1 PH TABLE 1535MM
SKU:
BZ-330130
JOINTER: TANNER TPC-8 8″ 1PH TABLE 1832MM
SKU:
BZ-330140
* This Professional model 8" jointer comes with a powerful 2hp single phase motor
* Large 1800mm table
* Four knife cutterhead running at 4800rpm to give a smooth finish to the workpiece
* The fence is adjusted by rack and pinion for accuracy and speed
* Fence can be tilted to 45 degrees in both directions
* Fully enclosed steel cabinet with dust connecter built-in
* Comes with English sliding guard (not shown in picture)
* Controls are on a central mount for convenience and safety
* Infeed table is adjusted by leaver action
JOINTER: TANNER TPC-8 8″ 1PH TABLE 1340MM C
SKU:
BZ-330150
* This TPC-8 comes with powerful 2hp motor.
* Cutterhead is 65mm in diameter.
* Fitted with three knives and runs at 4,400rpm to ensure a smooth finish on the workpiece.
* The fence is equiped with a tilt scale which is clear and easy to read.
*Fence can be tilted to 45° in both directions.
* Fully enclosed delux stand with built-in dust connecter for easy hook-up.
* The machine comes with English type sliding guard.
* Castor wheels for mobility.
JOINTER: TANNER TPC-12 12″ 1PH 3HP TABLE 2110MM
SKU:
BZ-331400
* The Tanner W0101 jointer is a heavy constructed machine
* Comes with rack and pinion fence adjustment
* The fence is 1200mm long with positive stops on 90 degrees and 45 degrees
* Fence can tilti both in and out
* The heavy all steel cabinet offers the machine stability and rigidity
* The price represents very good value for this size machine
* Conveniently positioned magnetic switch is placed high above the table in full operator view for quick access
JOINTER: TANNER TPC-12 12″ 3HP 3PH TABLE 2110MM
SKU:
BZ-331410
* The TPC-12-3 is a heavy constructed machine with lever action for table rise and fall
* The fence is 1200mm long with positive stops on 90ø and 45ø tilting both in and out
* The heavy all steel cabinet offers the machine stability and rigidity
* The price represents very good value for this size machine
SPIRAL CUTTER HEAD: 8″ MODEL WITH CARBIDE INSERTS
SKU:
BZ-331520
TORX COUNTERSING SCREW: M5 X 12.0MM SPIRAL C/ HEAD
SKU:
BZ-331540
