JOINTER: TANNER TPC-12 12" 1PH 3HP TABLE 2110MM
Excl. GST: $4,600.00
Incl. GST: $5,290.00
Incl. GST: $5,290.00

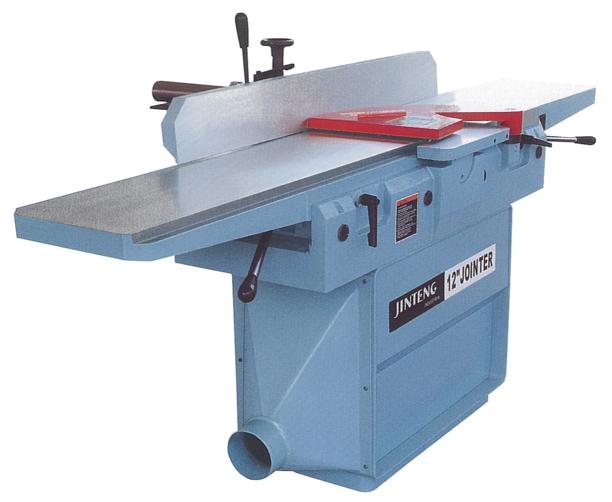

JOINTER: TANNER MB-523 12" 3HP 3PH TABLE 2000MM S/HEAD
Excl. GST: $5,950.00
Incl. GST: $6,842.50
Incl. GST: $6,842.50
JOINTER: TANNER TPC-12 12″ 3HP 3PH TABLE 2110MM
Excl. GST: $4,950.00
Incl. GST: $5,692.50
* The TPC-12-3 is a heavy constructed machine with lever action for table rise and fall
* The fence is 1200mm long with positive stops on 90ø and 45ø tilting both in and out
* The heavy all steel cabinet offers the machine stability and rigidity
* The price represents very good value for this size machine
| Weight | 470 kg |
|---|---|
| Dimensions | 2.2 × 0.755 × 1.03 cm |
Description
| DESCRIPTION | Jointer 12″ 3hp |
|---|---|
| MODEL | TPC-12 |
| CUTTING WIDTH | 305mm |
| MAX CUTTING DEPTH | 20.0mm |
| LENGTH OF TABLE | 2120mm |
| CUTTER HEAD | 95.0mm |
| KNIVES | 4 Pcs |
| BLADE SIZE | 305 X 29 X 3.0mm |
| SPEED | 4980rpm |
| MOTOR | 3Hp 3 Phase |
| WEIGHT NETT/GROSS | 450 / 470kg |
| VOLUME | 1.7108cm |
| STAND VOLUME | Included |
Shipping & Delivery
Related products
JOINTER: TANNER TPC-6 6″ 1 PH TABLE 1535MM
SKU:
BZ-330130
JOINTER: TANNER TPC-6 6″ 1 PH TABLE 1210MM O/STAND
SKU:
BZ-330134
* The W0109 is the standard 6" jointer in the Tanner range
* Closed in stand
* Fitted with the English guard (Not shown in this photo )
* Infeed table features cast-iron support ledge for rabbeting operations
* Fence size 98 x 740mm
* Fence tilt to 45 degrees
* Rebate 13 x 152mm
* Fitted with no-volt overload switch
JOINTER: TANNER TPC-6 6″ 1 PH TABLE 1535MM
SKU:
BZ-330138
* This W0106F Tanner jointer is the profecional model
* Extra long table (1535mm) for finish accuracy of the workpiece
* Upstand controls for easy operation
* Delux closed in stand
* Dust chute with 4" dust port for efficient dust and chip extraction
* Fence size 124 x 889mm
* Fence tilt to 45 degrees
* Fitted with english type guard ( not shown in this photo )
* Rebate cap i13 x 152mm
JOINTER: TANNER TPC-8 8″ 1PH TABLE 1832MM
SKU:
BZ-330140
* This Professional model 8" jointer comes with a powerful 2hp single phase motor
* Large 1800mm table
* Four knife cutterhead running at 4800rpm to give a smooth finish to the workpiece
* The fence is adjusted by rack and pinion for accuracy and speed
* Fence can be tilted to 45 degrees in both directions
* Fully enclosed steel cabinet with dust connecter built-in
* Comes with English sliding guard (not shown in picture)
* Controls are on a central mount for convenience and safety
* Infeed table is adjusted by leaver action
JOINTER: TANNER TPC-8 8″ 1PH TABLE 1340MM C
SKU:
BZ-330150
* This TPC-8 comes with powerful 2hp motor.
* Cutterhead is 65mm in diameter.
* Fitted with three knives and runs at 4,400rpm to ensure a smooth finish on the workpiece.
* The fence is equiped with a tilt scale which is clear and easy to read.
*Fence can be tilted to 45° in both directions.
* Fully enclosed delux stand with built-in dust connecter for easy hook-up.
* The machine comes with English type sliding guard.
* Castor wheels for mobility.
JOINTER: TANNER MB-523 12″ 3HP 3PH TABLE 2000MM S/HEAD
SKU:
BZ-331412
* The MB-523 is a heavy constructed machine with lever action for table rise and fall
* The fence is 1200mm long with positive stops on 90ø and 45ø tilting both in and out
* The heavy all steel cabinet offers the machine stability and rigidity
* Fitted with english type guard
* The price represents very good value for this size machine
JOINTER: TANNER MB-524M 16″ 3HP 3KW TABLE 2500MM S/HEAD
SKU:
BZ-331420
* The MB-524 is a heavy constructed machine with lever action for table rise and fall
* The fence is 1200mm long with positive stops on 90ø and 45ø tilting both in and out
* The heavy all steel cabinet offers the machine stability and rigidity
* Fitted with english type guard
* The price represents very good value for this size machine
