Knife Grinders

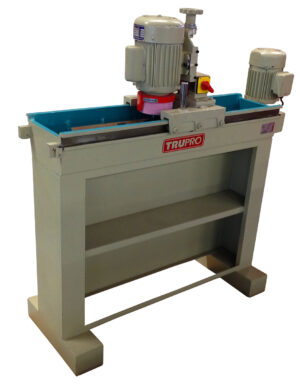

* Main frame is cast iron well ribbed to provide rigid suport to the grinding Table carriage to ensure vibration free grinding. * Blade Fixture sits at a 40° angle with slotted plate for clamping, * Motor Grinding Head has a +/- 5° angle adjustment, Max rake angle is between 35° to 45° grinding angle. * Slideway guides consist of hardened and tempered steel strips to assure wear resistance * Carriage is a one peice casting and slides on water tight sealed bearing with eccentric adjustment to take up play between guide and carriage * Coolant is directed to the grinding area by means of a impeller on the end of the grinding spindle

* Main frame is well ribbed to support the grinding carriage for vibration free grinding * Slideways are hardened & tempered steel strips to assure wear resistance * carriage is a one piece casting traveling on water tight sealed bearings with eccentric adjustment to take up play between guide and carriage * Coolant is directed to the grinding area by means of a impeller on the end of the grinding spindle * The grinding head can be tilted 6ø

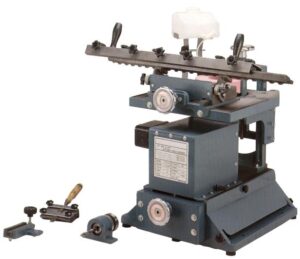

* Casting iron construction durable machine stable revolution * T-Thread screw and ball thrust bearing prescise operation * High medium and low grinding ratation speeds * Choice of dry and wey grinding * Surface and inside edge grinding * Diamond dresser tools to dress the precision of grinding wheel * Chisel support to grind variety of chisels * Grinding drill bits attachement can grind drill bits precisely * Able to serve a variety of grinding methods with work plate detached

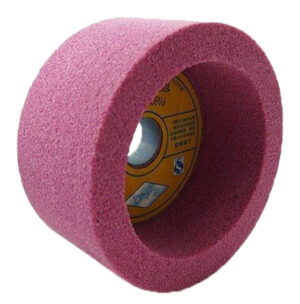

* This grinding wheel is to suit the YES-246 grinding machine *

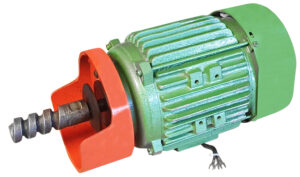

* This motor is to suit the YE-246 knife grinder * Has spiral lift chanels on end of shaft
