TUBE BENDER SPARES

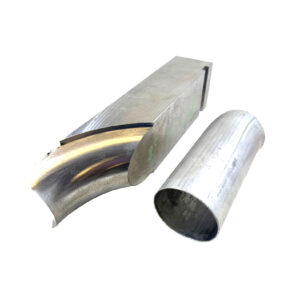

Description Wiper Die MODEL NCB-1– TO SUIT NCB100 Tube Bender SIZES 68.3mm x 1.4wt WEIGHT NETT/GROSS 7kg VOLUME 0.0050cm

Description Wiper Die MODEL NCB100 FORMERS SIZES 79.3mm x 1.7wt WEIGHT NETT/GROSS 8 kg VOLUME 0.0058cm

Description Wiper Die MODEL NCB100 FORMERS SIZES 109.8 x .0wt WEIGHT NETT/GROSS 8 kg VOLUME 0.0072cm

* This is the floor stand to suit the Bramley tube bender * Fitted with side bars to mount spare formers * Heavy base with 4 holddown holes *

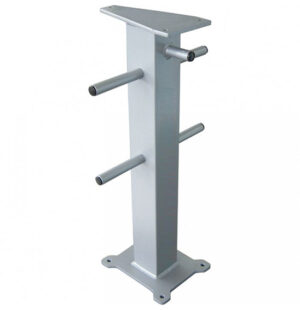

* This is the floor stand to suit the Tanner tube bender * Fitted with side steel pegs to mount a range of formers for convenient storage and accesability * Heavy construction with solid base with 4 predrilled mounting holes *

* For use with machines CR223/42 CR223/35 *

* For use with machines CR223/42 CR223/35 *

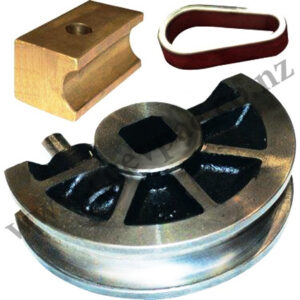

* The former set consits of the following and is to suit 25.4mm OD tube: Former 168082A Rollers x 2 168784 Ring 186084 Block 168784 * When using block the max wall thickness is 1.2mm * When using the rollers max wall thickness is 2.omm *

* This former set is to suit 31.8mm OD tube and consists of the following: Former 168008 Rollers 168055B x 2 Ring 168069 Block 168782 * When using the block in steel tube the max wall thickness is 1.2mm * When using the rollers the max wall thickness is 2.0mm *

* This former set is for 38.1mm tube and consists of the following * Former 168005 Rollers 168056A Ring 168070 Block 168782 * When using the block the max wall thickness is 1.2mm in steel tube * When using the rollers the maximum wall thickness is 2.0mm *

* This 50.8mm former set come with the following: Former 168087 Rollers 168088 x 2 Ring 168089 Block 168087 * When using the block max wall thickness is 1.6mm * When using the rollers max wall thickness is 2.5mm *
