EDM MACHINES

* Light small portable compct design * High speed & high efficiency and low cost * Simple operation easy remove broken taps * Dielectric - using ordinary tap water as a machine dielectric liquid * Using any brass bar as electrode * Removal of taps will not damage the threads * Auto feed 30deg both left and right depth setting selectable arcing timer Auto retract Alarm messages Depth arrival over-tempreture *

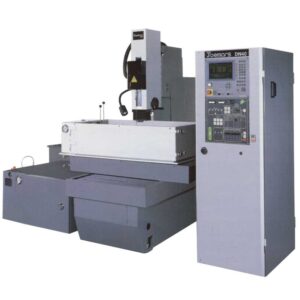

* The Joemars DNC42 is specially designed for drilling hard materials such as hardened steel aaloys & tungston carbide in ranges of 0.2mm-3.0 mm * This CNC EDM drill is a production drilling machine controlled by a Heidenhain controller *The newly developed sparking cercuits are special to the DNC42 EDM super drills to enhance machine speed excellent flushing lower wear & higher accuracy*

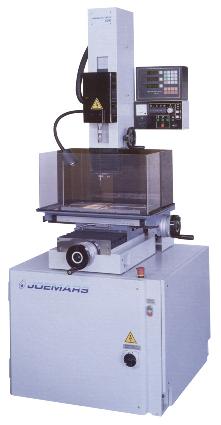

* The Joemars JM325D is specially designed for drilling hard materials such as hardened steel alloys and tungstan carbide in ranges of 0.2mm - 3.0mm * The newly developed sparking cercuits are special to the JM325D & JM528D EDM Super Drills to enhance machining speed excellent flushing lower wear & higher accuracy *

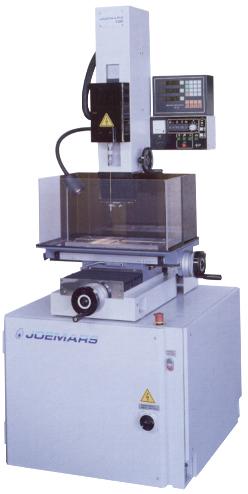

* The Joemars JM528D is specialy designed for drilling hard materials such as hardened steel alloys and tungstan carbide in ranges of 0.2mm - 3.0mm * The newly developed sparking cercuits are special to the JM235D &JM528D Super Drills to enhance machining speed excellent flushing lower wear & higher accuracy *

* The Joemars JM325DZ is fitted with the Fuzzy Logic control system * Easy to learn and operate - new operator can learn operation and be confident in only a few hours * Includes 3 axis DRo system: X Y axis use linear scale Z axis uses encoder * Five kinds of alarm indicators: will light up apon depth arrival Arcing Low Dielectric level For safety and on short electrode * Anti hitting system for electrode * Using 'MOSFET' sparking circuits suitable for tungsten carbide hardened steel etc

* The Joemars JM528DZ is fitted with the Fuzzy Logic control system * Easy to learn and operate - new operator can learn the operation and be confident in only a few hours * Includes 3 axis DRO system: X Y axis use linier scales Z axis uses encoder * Five kinds of alarm indicators: will light up apon depth arrival arcing low dielectrics Anti hitting system for electrodes * Using 'MOSFET' sparking circuits suitable for tungsten carbide hardened steel etc.

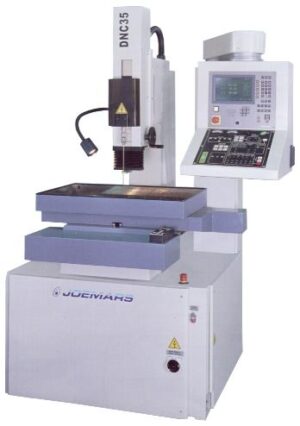

* The Joemars CNC DNC35 Drilling EDM machine comes with arm type movable control panel design for operator comfort * Stainless steel work table ensures stability * Half submerged work table increases the performance of machining * The Heidenhain TNC310 controller holds 100 sets of machining memories * 6 Kinds of machining parameters * Five kinds of alarm indicators * RS-232-C/V.24 interface * Plus many other fuctions *

CAPACITY OF TANK WORK TABLE 900 X 650 X 255mm TRAVEL X 450mm TRAVEL Y 450mm TRAVEL U / V

CAPACITY OF TANK – WORK TABLE 750 X 650 X 255mm TRAVEL X 450mm TRAVEL Y 300mm SPINDLE HEADSTOCK TRAVEL

CAPACITY OF TANK WORK TABLE 1100 X 800 X 355mm TRAVEL X 650mm TRAVEL Y 400mm SPINDLE HEADSTOCK TRAVEL –

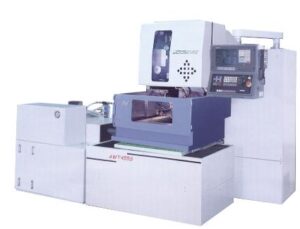

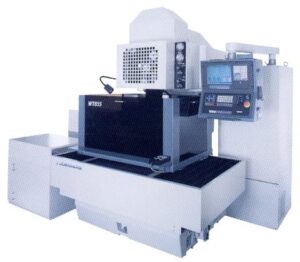

*Special upper / lower wire guide assembly, providing high-speed automatic wire threading in water and accuracy machining. *Simple and reliable Automatic Threading Device, applies high precision accuracy and easy for operator's maintenance. *Special anti-leaking system of low arm and work-tank, keeping axes movement smoothly. *Special cooling system for low arm, providing high accuracy required while machining. Hardened Stainless work-table enhances surface rigidity and well-support for work-piece. FEATURES OF AUTOMATIC WIRE THREADING A. Directly thread wire in submerged condition, saving the time and raising the working efficiency. B. Wire threading at break point is achievable. C. Upper water jet system achieves automatic wire threading with a thick workpiec

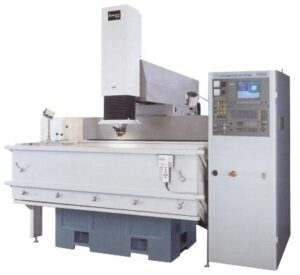

CAPACITY OF TANK 4000Ltrs WORK TABLE 2240 X 1050mm TRAVEL X 2000mm TRAVEL Y 1000mm TRAVEL Z 550mm SPINDLE HEADSTOCK

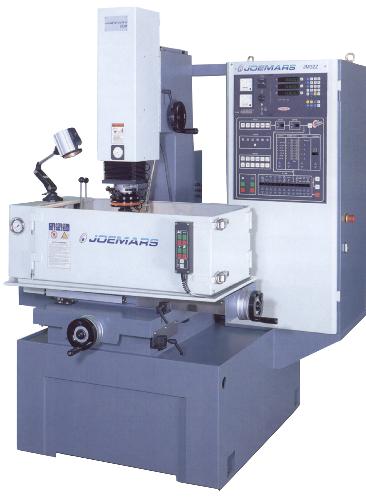

* The Joemars JM32Z (compact) has a maximum metal removal rate of 390mm3/min * Best surface roughness 0.25umRa * Electrode wear ratio 0.2% * Fiotted with new Fuzzy Logic control concept which holds 50 job numbers * 12 Kinds of machining parameters and 9600 sets of machining parameters *

* The Joemars JM430 + AZ50R + D430 pack is specially designed for drilling hard materials such as hardened steels, alloys and tungstan carbide in ranges of 0.2mm-3.0mm * Featurs Fuzzy logic control, 75amps, DRO

CAPACITY OF TANK 340 Litres WORK TABLE 650 x 400mm TRAVEL X 400mm TRAVEL Y 300mm SPINDLE HEADSTOCK TRAVEL 230

NEW ZNC PROGRAMABLE FOR AUTO MACHINING FROM ROUGH TO FINE FINISHING.

FUZZY LOGIC CONTROL 75AMPS DRO
