COLD CUT SAWS
CUT OFF SAW: LC1230 12″ MAKITA TCT BLADE
SKU:
COM105100
CUT OFF SAW: LC1230 355MM EUROBOOR TCT BLADE
SKU:
COM105110
CUT OFF SAW: THOMAS 250 TECHNICS 240V 1 PHASE
SKU:
COM105210
Manual disc miter saw 250 TECHNICS: practical, safe and easy to handle, suitable for cutting metal profiles and solid material.
Version with 250 mm HSS blade capacity with the possibility of cutting from 0 ° up to 45 ° left and right.
Handle with dead man control to start or stop the movement of the blade.
Quick locking vice complete with anti-burr bracket.
Lubrication-cooling device by means of a pump with jet break valve and filter.
Cutting cycle
Adjustment of the vice and locking of the material to be cut by means of a handwheel.
Manual descent of the disc holder head by means of a lever with maintained action switch. Manual head return.

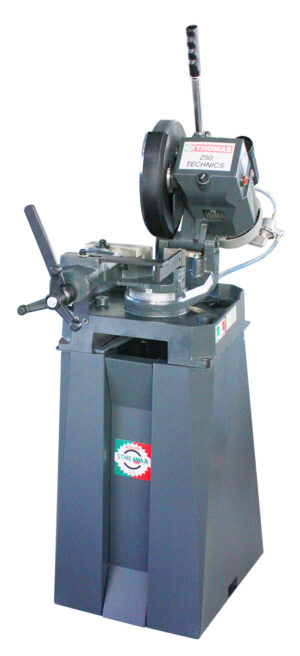

CUT OFF SAW: THOMAS 250 TECHNICS 415V 3 PHASE
SKU:
COM105212
Manual disc miter saw 250 TECHNICS: practical, safe and easy to handle, suitable for cutting metal profiles and solid material.
Version with 250 mm HSS blade capacity with the possibility of cutting from 0 ° up to 45 ° left and right.
Handle with dead man control to start or stop the movement of the blade.
Quick locking vice complete with anti-burr bracket.
Lubrication-cooling device by means of a pump with jet break valve and filter.
Cutting cycle
Adjustment of the vice and locking of the material to be cut by means of a handwheel.
Manual descent of the disc holder head by means of a lever with maintained action switch. Manual head return .

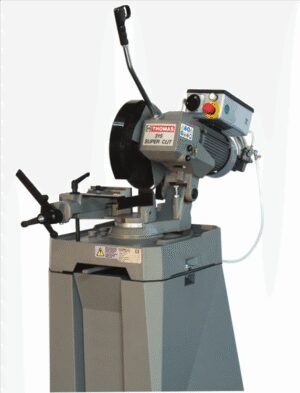

CUT OFF SAW: THOMAS 315 SUPER CUT 240V 1 PHASE
SKU:
COM105215
Robust cast-iron bench.
Vice and cutting head in cast-iron providing high stability and vibration free cutting.
Reduction unit running in oil bath with hardened worm screw and bronze gear.
Coolant liquid with mechanical pump and crucible.
Blade disc 315 mm.
Two way miter cutting (from 0° to 45° right and left).
Single speed 41 rpm monophase motor.
Quick lock vice with anti-burr clamping
CUT OFF SAW: THOMAS 315 SUPER CUT 415V 3 PHASE
SKU:
COM105217
Robust cast-iron bench.
Vice and cutting head in cast-iron providing high stability and vibration free cutting.
Reduction unit running in oil bath with hardened worm screw and bronze gear.
Coolant liquid with mechanical pump and crucible.
Blade disc 315 mm.
Two way miter cutting (from 0° to 45° right and left).
Two cutting speeds threephase motor
Quick lock vice with anti-burr clamping

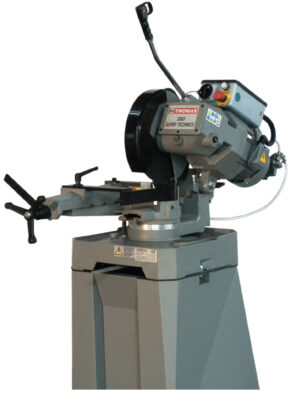

CUT OFF SAW: THOMAS 350 SUPER TECHNICS 415V 3 PHASE
SKU:
COM105220
Robust cast-iron bench.
Vice and cutting head in cast-iron providing high stability and vibration free cutting.
Reduction unit running in oil bath with hardened worm screw and bronze gear.
Coolant liquid with mechanical pump and crucible.
Double mitre manual circular saw for solid materials and profiles (construction steels in general).
Blade disc 350 mm.
Two way miter cutting (from 0° to 45° right and left).
Two cutting speeds threephase motor.
Low revolution motor 22/44 rpm low cutting speed for stainless steel and hard metal.
Quick lock vice with anti-burr clamping
CUT OFF SAW: THOMAS 350 SUPER TECHNICS INVERTER.
SKU:
COM105222
Robust cast-iron bench.
Vice and cutting head in cast-iron providing high stability and vibration free cutting.
Reduction unit running in oil bath with hardened worm screw and bronze gear.
Coolant liquid with mechanical pump and crucible.
Double mitre manual circular saw for solid materials and profiles (construction steels in general).
Blade disc 350 mm.
Two way miter cutting (from 0° to 45° right and left).
Two cutting speeds INVERTER for variable blade speeds from 20 to 105 m/min).
Low revolution motor 22/44 rpm low cutting speed for stainless steel and
hard metal.
Quick lock vice with anti-burr clamping
CUT OFF SAW: THOMAS 350 SUPER TECHNICS INVERTOR Hyd Vice
SKU:
COM105224
Manual disc miter saw 250 TECHNICS: practical, safe and easy to handle, suitable for cutting metal profiles and solid material.
Version with 250 mm HSS blade capacity with the possibility of cutting from 0 ° up to 45 ° left and right.
Handle with dead man control to start or stop the movement of the blade.
Quick locking vice complete with anti-burr bracket.
Lubrication-cooling device by means of a pump with jet break valve and filter.
Cutting cycle
Adjustment of the vice and locking of the material to be cut by means of a handwheel.
Manual descent of the disc holder head by means of a lever with maintained action switch. Manual head return .
THOMAS 315 SUPER CUT: MOBILE BLADE GUARD # AHB80051
SKU:
COM105270
THOMAS 350 SUPER TECHNICS: MOBILE BLADE GUARD #160C0063
SKU:
COM105280
CUT OFF SAW: CS235 235MM 1PH PORTABLE
SKU:
COM105390
* The 235mm Super Cut portable cold saw is an ideal small machine for site work or small workshop
* Can cut 0-45 del left with maximum cutting capacity of 67.0mm
* Light weight (20kg ) with powerful 1500w DC motor
* Safety features include moror protectors - one controlling the amps, the other controlling the tempreture of the motor
* Start button is inside the operating handle
* Comes wilth coolant system
CUT OFF SAW: CS275 275MM 1PH
SKU:
COM105400
CUT OFF SAW: CS275 275MM 3PH
SKU:
COM105410
CUT OFF SAW: CS315 315MM 1PHASE TAIWAN MAKE
SKU:
COM105415
* Sturdy construction and heavy cast stands.
* Push button operation.
* Long handle provides plenty of torque.
* Swivel head with quick action lever.
* Uniquie central tensioning vice: 4 way guide system with individual clamping jaws.
* Removable coolant tank with powerful pump.
* Angular scale for the precise cutting of angles.
CUT OFF SAW: CS315 315MM 3PH
SKU:
COM105420
* Sturdy construction and heavy cast stands.
* Two cutting speeds.
* Push button operation.
* Long handle provides plenty of torque.
* Swivel head with quick action lever.
* Uniquie central tensioning vice: 4 way guide system with individual clamping jaws.
* Removable coolant tank with powerful pump.
* Angular scale for the precise cutting of angles.
CUT OFF SAW: CS315SA 315MM 3PH Automatic
SKU:
COM105422
CUT OFF SAW: CS350 350MM 3 PHASE
SKU:
COM105430
CUT OFF SAW: CS350SA 350MM AUTO DOWNFEED 3ph
SKU:
COM105432
CUT OFF SAW: PIPE 2″ CAPACITY FOR STAINLESS
SKU:
COM105450
CUT OFF SAW: SUPERCUT 60.0MM CAPACITY IN TUBE
SKU:
COM105460
* This cut off saw was designed as a light weight portable type saw for cutting pipe or square section up to 60.0mm in both 45 & 90deg
* Cuts 45deg left
* Vairiable speed DC motor with speeds range of 35 - 85rpm
* Motor has two protectors ( one controlling the amps and other controlling the tempreture
* Has anti-rest safety fuction
CUT OFF SAW: BMDO 100XS CNC BEKAMAK
SKU:
COM105465
• Mass production in continuous operation is done by BMDO 100 XS when producing cut-off pieces of steel and non-ferrous metals with a material cross-section up to a diameter of 100 mm.
• BMDO 100 XS is designed to be used with TCT circular saw blade in order to cut solid bars in high speed and excellent precise.
• It is also suitable for HSS blades to cut tubes.
• With the Standard 800mm stroke servo feeding and 6 meters automatic loader, BMDO 100XS CNC is perfect for large-scale productiono cut tubes.
