ROTARY TABLES

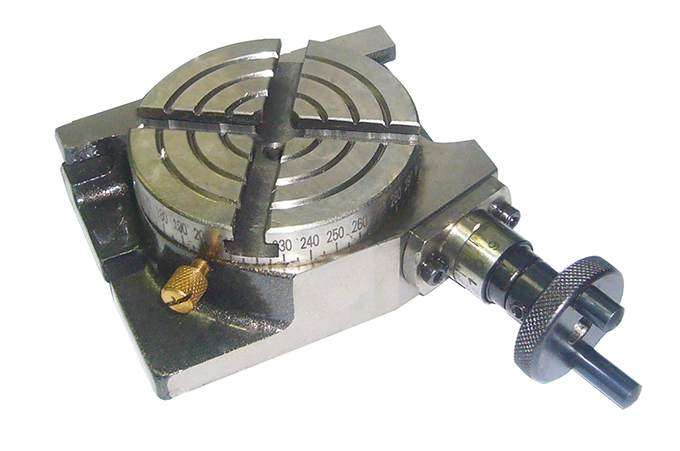

* This is the smallest rotary table available * Can be used both horizontal and verticle * Ideal size for model engineers etc *

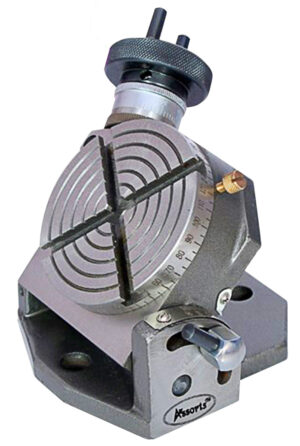

* This is the smallest Tilting rotary table available * Designed for small milling machines * This table tilting range from 0 - 90 Degrees * Table diameter is 75.0mm * Worm gear ratio 36:1 = 1 handle rotation increase table by 10 degrees * This table can be used in verticle and hoizontal position * Ideal size for model engineers etc

* This 3 horizontal/verticle rotary table comes complete with 3 3 jaw chuck *

* This 4 rotary table can be used both horizontal and verticle * Idea size for model makers etc * Mounting plate is available for 3 jaw chuck *

* This 4" Tilting rotary table is a very versitile unit * Tilting range is 0 - 90 Degrees with positive locking * Table diameter is 100mm * Worm gear ratio 1:36 = 1 rotation will increase by 10 degrees * Graduated indexing dial to 360 derees * Centre height in verticle = 66.0mm approx Hand wheel is graduated in 10 min divisions and can be set at zero * Comes with tee slots in table * Can be bolted in verticle or horizontal position

* Table is made from high density Meehanite casting with ground finish * Tested by Heidenhain electronic testing equipment to ensure the utmost quality * Spindle end is supported by taper roller bearings to ensure stablity under cutting conditions * Worm is hardened and ground and has a ratio of 90:1 * The worktable is graduated to the full 360ø so that one turn of the handle moves the table through 4ø * Micro collar is graduated in steps of 1' min and vernier scale makes settings down to 10 seconds possible * These rotary tables are popular for their excellent performance practical design and affordable cost * Widely used for circular cutting work angle setting boring * This model comes complete with 3 jaw chuck

* This 4" rotary table is a very versitile unit * Table diameter is 100mm * Worm gear ratio 1:36 = 1 rotation will increase by 10 degrees * Graduated indexing dial to 360 derees * Centre height in verticle = 66.0mm approx Hand wheel is graduated in 10 min divisions and can be set at zero * Comes with 3 tee slots in table * This rotary table comes with 100mm 3 jaw chuck in seperate package * Chuck is on backing plate and can be removed

* Table is made from high density Meehanite casting with ground finish * Tested by Heidenhain electronic testing equipment to ensure the utmost quality * Spindle end is supported by taper roller bearings to ensure stablity under cutting conditions * Worm is hardened and ground and has a ratio of 90:1 * The worktable is graduated to the full 360ø so that one turn of the handle moves the table through 4ø * Micro collar is graduated in steps of 1' min and vernier scale makes settings down to 10 seconds possible * These rotary tables are popular for their excellent performance practical design and affordable cost * Widely used for circular cutting work angle setting boring

* Homge rotary tables are made in Taiwan * This company is renown for their accuracy and overall quality * This Rotary Table is fitted with a 4" slotted face plate * This is to fit T-Slot nuts for fixing a workpiece * Can be used both horizontal and verticle making it a very versitile indexing fixtureTW

* Table is made from high density Meehanite casting with ground finish * Tested by Heidenhain electronic testing equipment to ensure the utmost quality * Spindle end is supported by taper roller bearings to ensure stablity under cutting conditions * Worm is hardened and ground and has a ratio of 90:1 * The worktable is graduated to the full 360ø so that one turn of the handle moves the table through 4ø * Micro collar is graduated in steps of 1' min and vernier scale makes settings down to 10 seconds possible * These rotary tables are popular for their excellent performance practical design and affordable cost * Widely used for circular cutting work angle setting boring

* Homge Rotary Tables are made from high density Meehanite casting with ground finish * Tested by Heidenhain electronic testing equipment to ensure the utmost quality * Spindle end is supported by taper roller bearings to ensure stablity under cutting conditions * Worm is hardened and ground and has a ratio of 90:1 * The worktable is graduated to the full 360ø so that one turn of the handle moves the table through 4ø * Micro collar is graduated in steps of 1' min and vernier scale makes settings down to 10 seconds possible * These rotary tables are popular for their excellent performance practical design and affordable cost * Widely used for circular cutting work angle setting boring

* these Alto Rotary Tables are made from high density Meehanite casting with ground finish * Worm is hardened and ground and has a ratio of 90:1 * The worktable is graduated to the full 360ø so that one turn of the handle moves the table through 4ø * Micro collar is graduated in steps of 1' min and vernier scale makes settings down to 10 seconds possible * These rotary tables are popular for their excellent performance practical design and affordable cost * Widely used for circular cutting work angle setting boring * Tilting table model for versitility

* Homge Rotary Tables are made from high density Meehanite casting with ground finish * Tested by Heidenhain electronic testing equipment to ensure the utmost quality * Spindle end is supported by taper roller bearings to ensure stablity under cutting conditions * Worm is hardened and ground and has a ratio of 90:1 * The worktable is graduated to the full 360ø so that one turn of the handle moves the table through 4ø * Micro collar is graduated in steps of 1' min and vernier scale makes settings down to 10 seconds possible * These rotary tables are popular for their excellent performance practical design and affordable cost * Widely used for circular cutting work angle setting boring

* Table is made from high density Meehanite casting with ground finish * Tested by Heidenhain electronic testing equipment to ensure the utmost quality * Spindle end is supported by taper roller bearings to ensure stablity under cutting conditions * Worm is hardened and ground and has a ratio of 90:1 * The worktable is graduated to the full 360ø so that one turn of the handle moves the table through 4ø * Micro collar is graduated in steps of 1' min and vernier scale makes settings down to 10 seconds possible * These rotary tables are popular for their excellent performance practical design and affordable cost * Widely used for circular cutting work angle setting boring

* Table is made from high density Meehanite casting with ground finish * Tested by Heidenhain electronic testing equipment to ensure the utmost quality * Spindle end is supported by taper roller bearings to ensure stablity under cutting conditions * Worm is hardened and ground and has a ratio of 90:1 * The worktable is graduated to the full 360ø so that one turn of the handle moves the table through 4ø * Micro collar is graduated in steps of 1' min and vernier scale makes settings down to 10 seconds possible * These rotary tables are popular for their excellent performance practical design and affordable cost * Widely used for circular cutting work angle setting boring

* Table is made from high density Meehanite casting with ground finish * Tested by Heidenhain electronic testing equipment to ensure the utmost quality * Spindle end is supported by taper roller bearings to ensure stablity under cutting conditions * Worm is hardened and ground and has a ratio of 90:1 * The worktable is graduated to the full 360ø so that one turn of the handle moves the table through 4ø * Micro collar is graduated in steps of 1' min and vernier scale makes settings down to 10 seconds possible * These rotary tables are popular for their excellent performance practical design and affordable cost * Widely used for circular cutting work angle setting boring

* VERTEX tables are manufactured in Taiwan * Table is made from high density Meehanite casting with ground finish * Tested by Heidenhain electronic testing equipment to ensure the utmost quality * Spindle end is supported by taper roller bearings to ensure stablity under cutting conditions * Worm is hardened and ground and has a ratio of 90:1 * The worktable is graduated to the full 360ø * One turn of the handle moves the table through 4ø * Micro collar is graduated in steps of 1'min and vernier scale makes settings down to 10 S' * These rotary tables are popular for their excellent performance practical design & cost * Widely used for circular cutting work angle setting boring *

* Table is made from high density Meehanite casting with ground finish * Tested by Heidenhain electronic testing equipment to ensure the utmost quality * Spindle end is supported by taper roller bearings to ensure stablity under cutting conditions * Worm is hardened and ground and has a ratio of 90:1 * The worktable is graduated to the full 360ø so that one turn of the handle moves the table through 4ø * Micro collar is graduated in steps of 1'min and vernier scale makes settings down to 10 seconds possible * These rotary tables are popular for their excellent performance practical design and affordable cost * Widely used for circular cutting work angle setting boring *

* Table is made from high density Meehanite casting with ground finish * Tested by Heidenhain electronic testing equipment to ensure the utmost quality * Spindle end is supported by taper roller bearings to ensure stablity under cutting conditions * Worm is hardened and ground and has a ratio of 90:1 * The worktable is graduated to the full 360ø so that one turn of the handle moves the table through 4ø * Micro collar is graduated in steps of 1' min and vernier scale makes settings down to 10 seconds possible * These rotary tables are popular for their excellent performance practical design and affordable cost * Widely used for circular cutting work angle setting boring

* Table is made from high density Meehanite casting with ground finish * Tested by Heidenhain electronic testing equipment to ensure the utmost quality * Spindle end is supported by taper roller bearings to ensure stablity under cutting conditions * Worm is hardened and ground and has a ratio of 90:1 * The worktable is graduated to the full 360ø so that one turn of the handle moves the table through 4ø * Micro collar is graduated in steps of 1'min and vernier scale makes settings down to 10 seconds possible * These rotary tables are popular for their excellent performance practical design and affordable cost * Widely used for circular cutting work angle setting boring * Controller has three wires, one of them is for powercord conected to DC 24W - 48V. Motor should be conected to 4 pin aviation socket and motor encoder should be connected to the 6 pin aviation conector

* Table is made from high density Meehanite casting with ground finish * Tested by Heidenhain electronic testing equipment to ensure the utmost quality * Spindle end is supported by taper roller bearings to ensure stablity under cutting conditions * Worm is hardened and ground and has a ratio of 90:1 * The worktable is graduated to the full 360ø so that one turn of the handle moves the table through 4ø * Micro collar is graduated in steps of 1'min and vernier scale makes settings down to 10 seconds possible * These rotary tables are popular for their excellent performance practical design and affordable cost * Widely used for circular cutting work angle setting boring * Controller has three wires, one of them is for powercord conected to DC 24W - 48V. Motor should be conected to 4 pin aviation socket and motor encoder should be connected to the 6 pin aviation conector

* Table is made from high density Meehanite casting with ground finish * Tested by Heidenhain electronic testing equipment to ensure the utmost quality * Spindle end is supported by taper roller bearings to ensure stablity under cutting conditions * Worm is hardened and ground and has a ratio of 90:1 * The worktable is graduated to the full 360ø so that one turn of the handle moves the table through 4ø * Micro collar is graduated in steps of 1'min and vernier scale makes settings down to 10 seconds possible * These rotary tables are popular for their excellent performance practical design and affordable cost * Widely used for circular cutting work angle setting boring * Controller has three wires, one of them is for powercord conected to DC 24W - 48V. Motor should be conected to 4 pin aviation socket and motor encoder should be connected to the 6 pin aviation conector

* Table is made from high density Meehanite casting with ground finish * Tested by Heidenhain electronic testing equipment to ensure the utmost quality * Spindle end is supported by taper roller bearings to ensure stablity under cutting conditions * Worm is hardened and ground and has a ratio of 90:1 * The worktable is graduated to the full 360ø so that one turn of the handle moves the table through 4ø * Micro collar is graduated in steps of 1'min and vernier scale makes settings down to 10 seconds possible * These rotary tables are popular for their excellent performance practical design and affordable cost * Widely used for circular cutting work angle setting borin

* Table is made from high density Meehanite casting with ground finish * Tested by Heidenhain electronic testing equipment to ensure the utmost quality * Spindle end is supported by taper roller bearings to ensure stablity under cutting conditions * Worm is hardened and ground and has a ratio of 90:1 * The worktable is graduated to the full 360ø so that one turn of the handle moves the table through 4ø * Micro collar is graduated in steps of 1'min and vernier scale makes settings down to 10 seconds possible * These rotary tables are popular for their excellent performance practical design and affordable cost * Widely used for circular cutting work angle setting boring

* Small precision tilting rotary table for small workpieces * Tilting range is from 0-90ø from horizontal to vertical position * worm is hardened and ground * The ratio is 90:1

* Small precision tilting rotary table for small workpieces * Tilting range is from 0-90ø from horizontal to vertical position * worm is hardened and ground * The ratio is 90:1 *

* Compact unit with wide range of uses * Tilting range 0-90ø from horizontal to verticle position * Worm is hardened and ground * Ratio is 90:1 * The work table is graduated a full 360ø so that one turn of the handle moves through 4ø *

* Tilting range is 0-90ø from horizontal to vertical position * Worm is hardened and ground * The ratio is 90:1 * The work table is graduated a full 360ø so that one turn of the handle is 4ø *

DESCRIPTION VUT-250 TYPE Tilting Rotary Table CENTRE HEIGHT 155 mm HEIGHT VERTICAL T-SLOT SIZE 12.0mm WEIGHT NETT/GROSS 93 Kgs VOLUME

DESCRIPTION TSK-12 12″ TYPE Tilting Rotary Table HEIGHT HORIZONTAL 175mm HEIGHT VERTICAL 380mm T-SLOT SIZE 14.0mm WEIGHT NETT/GROSS 145kg VOLUME

* Will fit 6 Vertex rotary tables by removing handwheel *

* Will fit 6 Vertex rotary tables by removing handwheel *

* Fits Vertex 8 rotary table by removing handwheel *

* Will fit 10 12 and 14 Vertex rotary tables *

* This set of dividing plates is to suit the old type of rotary table *

DESCRIPTION Dividing Plates TYPE DP-3 Indexing NUMBER OF PLATES DIAMETER TO SUIT HV-16 Rotary Table WEIGHT NETT/GROSS 4.424/4.426kg VOLUME 0.0029cm

* This set of dividing plates will fit model TSK-10 *

* This Tailstock is suitable for the Vertex 8 & 10 Rotary tables and also the CC CS-6 8 Indexing fixtures * These tailstocks can also be used for other types of indexing fixtures *
