DIVIDING HEADS

* Hardened and ground spindle * Phosphor-bronze worm gear is helcally cut * The ratio between worm and worm gear is 40:1 * The swivel head can be locked in any angle from 10ø below horizontal to 90ø * All models have threaded spindle nose and 24 hole dividing plate with easy conversions to fast direct indexing on numbers 2 3 4 6 8 12 and 24 * The threaded back plate supplied with this dividing head can be used for mounting a three or four jaw chuck.

* Hardened and ground spindle * Phosphor-bronze worm gear is helcally cut * The ratio between worm and worm gear is 40:1 * The swivel head can be locked in any angle from 10ø below horizontal to 90ø * All models have threaded spindle nose and 24 hole dividing plate with easy conversions to fast direct indexing on numbers 2 3 4 6 8 12 and 24 * The threaded back plate supplied with this dividing head can be used for mounting a three or four jaw chuck

* This threaded back plate is to suit the Homge BS-0 dividing head

* This centre is to suit the Homge BS-0 dividing head

* Dividing head can divide in any angle by the direct indirect or different methods * The ratio between the worm and the worm gear is 40:1 * The spindle is hardened and ground and rigidly supported in taper roller bearings * The swivel head can be locked in any angle from 10ø below horizontal to 90ø vertical -precision fitting to base assures smooth rotation * All models have threaded spindle nose and 24 hole dividing plate with easy conversionto fast direct indexing on numbers 2 3 4 6 8 12 and 24. * Easy indexing of all numbers from 2 to 50 and many numbers from 52 to 380 and for spiral cutting * Accurate precision little back lash fine appearance and strong structure assure smoth rotation 1. UNIVERSAL Dividing Head can divide in any angle by the direct, in-direct, or different methods. The ratio between the warm and the warm gear is 40:1. 2. Hardened and ground spindle is rigidly held in a taper roller bearing. Worm is hardened and ground also. 3. The swivel head can be locked of any angle from 10˚ below horizontal to 90˚ vertical-precision fitting to base assures smooth rotation. 4. All models have threaded spindle nose and 24 hole dividing plate with easy conversion to fast direct indexing on numbers 2,3,4,6,8,12, and 24. 5. Easy indexing of al numbers from 2 to 50 and many numbers from 52 of 380. Model BS-2 is also equipped for different indexing for all numbers from 2 to 380, and for spiral cutting. 6. Accurate precision, little backlash, fine appearance and strong structure so can assure smooth rotation.

* Dividing head can divide in any angle by the direct indirect or different methods * The ratio between the worm and the worm gear is 40:1 * The spindle is hardened and ground and rigidly supported in taper roller bearings * The swivel head can be locked in any angle from 10ø below horizontal to 90ø vertical -precision fitting to base assures smooth rotation * All models have threaded spindle nose and 24 hole dividing plate with easy conversionto fast direct indexing on numbers 2 3 4 6 8 12 and 24 * Easy indexing of all numbers from 2 to 50 and many numbers from 52 to 380 and for spiral cutting * Accurate precision little back lash fine appearance and strong structure assure smoth rotation

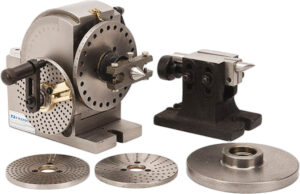

* This fully universal dividing head come complete with dividing plates tailstock flange plate and driving gears * Has all the features of the BS-1 dividing head but with a larger centre height and bore * Made to the same rigid specifications as all Vertex products 1. UNIVERSAL Dividing Head can divide in any angle by the direct, in-direct, or different methods. The ratio between the warm and the warm gear is 40:1. 2. Hardened and ground spindle is rigidly held in a taper roller bearing. Worm is hardened and ground also. 3. The swivel head can be locked of any angle from 10˚ below horizontal to 90˚ vertical-precision fitting to base assures smooth rotation. 4. All models have threaded spindle nose and 24 hole dividing plate with easy conversion to fast direct indexing on numbers 2,3,4,6,8,12, and 24. 5. Easy indexing of al numbers from 2 to 50 and many numbers from 52 of 380. Model BS-2 is also equipped for different indexing for all numbers from 2 to 380, and for spiral cutting. 6. Accurate precision, little backlash, fine appearance and strong structure so can assure smooth rotation.

* This gear is to suit the BS-1 dividing head

* These dividing plates are to suit the Vertex BS-2 dividing head * Consist of 3pc set
