MILLING MACHINE: 5H 1270 X 254MM TABLE TURRET TAIWAN
Excl. GST: $0.00
Incl. GST: $0.00
Incl. GST: $0.00
MILLING MACHINE: 7H 1350 X 305MM TABLE VERT/HORZ
Excl. GST: $0.00
Incl. GST: $0.00
Incl. GST: $0.00

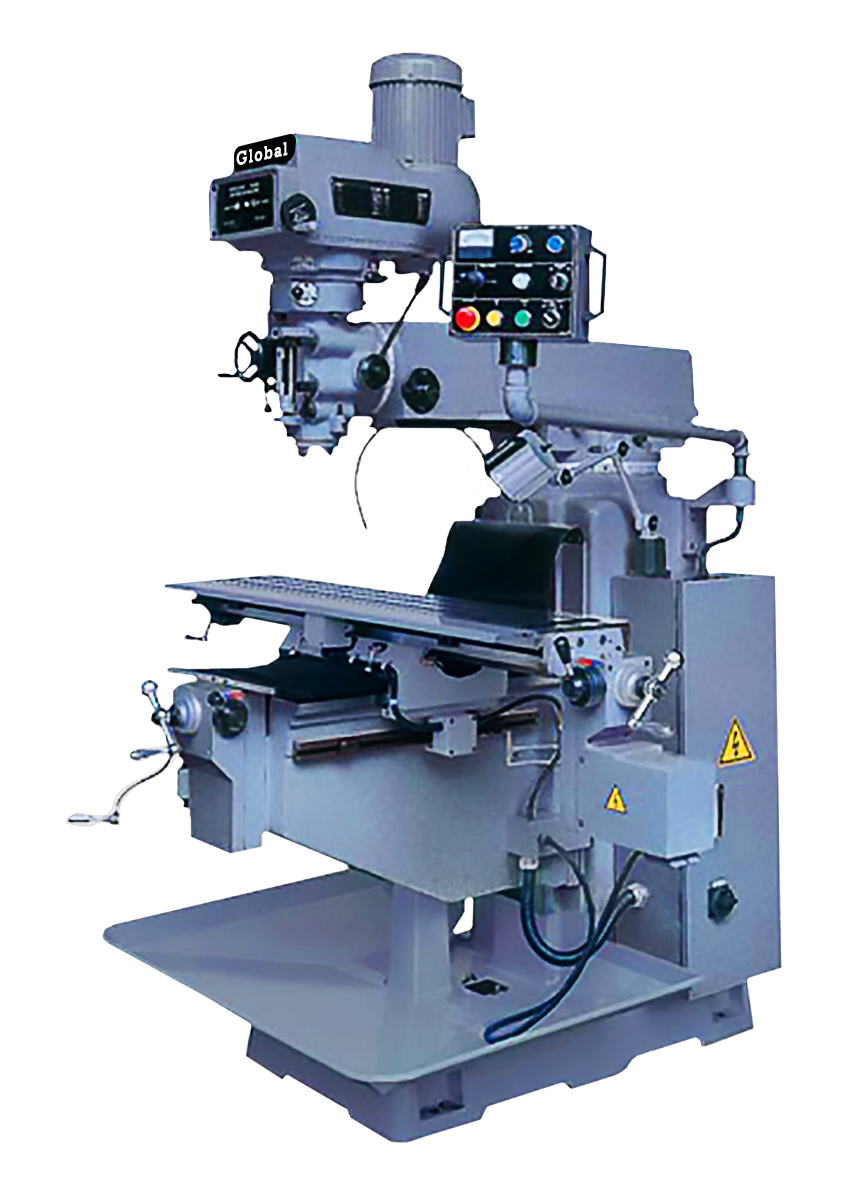

MILLING MACHINE: 6H 1372 X 254MM TABLE TURRET TAIWAN
Excl. GST: $0.00
Incl. GST: $0.00
* The 6H model comes with standard 1372mm table length.
* Table is hardened and ground for durability and long service life.
* Powerful 5hp motor.
* Large diameter quill (105mm) for rigid milling performance.
* Y-Z axis rubber way cover.
* Auto lubrication system.
* Electrical cabinet.
* Made in Taiwan.
| Weight | 1710 kg |
|---|---|
| Dimensions | 1.72 × 1.51 × 2.24 cm |
Description
| Table Size (mm) | 1270 x 254 |
|---|---|
| Travel X-axis (mm) | 875 |
| Travel Y-axis (mm) | 400 |
| Travel Z-axis (mm) | 445 |
| Quill Stroke (mm) | 127 |
| Quill Diameter (mm) | 105 |
| Spindle Taper | NT40 |
| Speeds (no.) | 3 steps |
| Speed Range (rpm) | 60 – 4200 |
| Motor (kW) | 3.75 |
| Weight (kg) | 1700 |
| Volume | 5.8177cm |
| Packing Size L x W x H (mm) | 1510 x 1510 x 2240 |
Shipping & Delivery
Related products
MILLING MACHINE: TM240 TURRET R8 1PH
SKU:
MM-228000
* The TM-240A (X6325A) is a turret style milling machine.
* Fully tiliting, swivelling & rotating head.
* The saddle guideways are lined with turcite wearable material.
* Hardened & precision ground work table and guideways.
* High quality meehanite cast body.
* Chromed and ground spindle.
* Double 55° dovetail guide way is adopted on both Y and Z axis.
* One shot lubrication.
MILLING MACHINE: X6325D /TM240 NT40 1 PH (BALL SCREWS)
SKU:
MM-228510
* The TM-240 (X6323B) is a turret style milling machine.
* Fully tiliting, swivelling & rotating head.
* The saddle guideways are lined with turcite wearable material.
* Hardened & precision ground work table and guideways.
* High quality meehanite cast body.
* Chromed and ground spindle.
* Double 55° dovetail guide way is adopted on both Y and Z axis.
* One shot lubrication.
MILLING MACHINE: TM240A (X6325A) NT30 (BALL SCREWS)
SKU:
MM-228512
* The TM-240A (X6325A) is a turret style milling machine.
* Fully tiliting, swivelling & rotating head.
* The saddle guideways are lined with turcite wearable material.
* Hardened & precision ground work table and guideways.
* High quality meehanite cast body.
* Chromed and ground spindle.
* Double 55° dovetail guide way is adopted on both Y and Z axis.
* One shot lubrication.
MILLING MACHINE: TM270 (M6325D) TURRET 3PH NT40
SKU:
MM-228615
* The TM-270 (X6325D) is a turret style milling machine.
* Head is fully tiliting, swivelling & rotating
* The saddle guideways are lined with turcite wearable material.
* Hardened & precision ground work table and guideways.
* High quality meehanite cast body.
* Chromed and ground spindle
* Variable speed from 65-4500rpm
* Double 55° dovetail guide way is adopted on both Y and Z axis.
* One shot lubrication
* Comes with power rise and fall on X axis
* X & Y axis are fitted with aglin power feeds (Taiwan)
Digital 3 axis readout is Sino brand
MILLING MACHINE: TM330 TURRET (M6333) NT40
SKU:
MM-228620
* The TM-330 (M6333) is a turret style milling machine.
* Fully tiliting, swivelling & rotating head.
* The saddle guideways are lined with turcite wearable material.
* Hardened & precision ground work table and guideways.
* High quality meehanite cast body.
* Chromed and ground spindle.
* 3 axis digital readout & X/Y axes powerfeed.
* Powered rise & fall of the milling table.
* Automted lubrication system.
* NT40 spindle taper for heavy milling operations.
* Power drawbar fitted.
MILLING MACHINE: TM330 (X6333) TURRET NT40 BALL (SCREWS)
SKU:
MM-228625
* The TM330 (X6333) is a turret style milling machine.
* Fully tiliting, swivelling & rotating head.
* The saddle guideways are lined with turcite wearable material.
* Hardened & precision ground work table and guideways.
* High quality meehanite cast body.
* Chromed and ground spindle.
* Double 55° dovetail guide way is adopted on both Y and Z axis.
* One shot lubrication.
MILLING MACHINE: MDH50B NT40 1PH VM
SKU:
MM-280823
* Small & economical knee type milling machine.
* Precision milling table with machined T-slots.
* Heavy castings & large slide surfaces for performance & stability.
* In built recyclable coolant system.
* One shot oil lubrication.
* 3 axis digital readout & X axis powerfeed.
* Ideal machine for small workshops.
TURRET MILL: CNC B3VC KNEE TYPE
SKU:
MMC400410
