GL550 ACCESSORY-COOLANT SYSTEM
Excl. GST: $295.00
Incl. GST: $339.25
Incl. GST: $339.25
BED MILL: CNC K3VLC
Excl. GST: $0.00
Incl. GST: $0.00
Incl. GST: $0.00

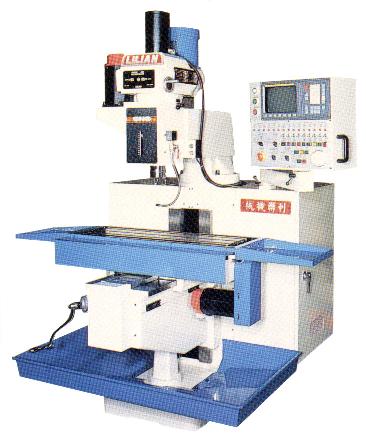

TURRET MILL: CNC BMT-2500V-NC
Excl. GST: $0.00
Incl. GST: $0.00
* This is a Knee type milling machine fitted with 3 axis ball screws
* Spindle is powered by 5hp AC induction motor with inverter
* Slide ways and gibs are Turcite-B coated
* Fagor 8055B controller
| Weight | 1800 kg |
|---|
Description
| CONTROLLER | Fagor |
|---|---|
| WORKING SURFACE | 54″X 12″ |
| TRAVEL XYZ | 800X 400 x 450mm |
| SPINDLE TO TABLE | 520mm |
| MAX TABLE LOAD | 350kg |
| SPINDLE SPEED | 60 – 3600rpm |
| SPINDLE TAPER | NT40 |
| CUTTING FEED RATE | |
| RAPID TRAVERSE XY | |
| RAPID TRAVERSE Z | |
| ATC TYPE | Nil |
| TOOL STORAGE CAP | – |
| SPINDLE MOTOR | 5hp |
| POWER CONSUMPTION | |
| WEIGHT NETT/GROSS | 1800kg |
| VOLUME | |
| FLOOR SPACE |
Shipping & Delivery
Related products
MILLING MACHINE: TM240 TURRET R8 1PH
SKU:
MM-228000
* The TM-240A (X6325A) is a turret style milling machine.
* Fully tiliting, swivelling & rotating head.
* The saddle guideways are lined with turcite wearable material.
* Hardened & precision ground work table and guideways.
* High quality meehanite cast body.
* Chromed and ground spindle.
* Double 55° dovetail guide way is adopted on both Y and Z axis.
* One shot lubrication.
MILLING MACHINE: X6325A /TM240 TURRET NT30 1PH (B/SCREWS)
SKU:
MM-228509
* The TM-240 (X6323B) is a turret style milling machine.
* Head is fully tiliting, swivelling & rotating
* The saddle guideways are lined with turcite wearable material.
* Hardened & precision ground work table and guideways.
* High quality meehanite cast body.
* Chromed and ground spindle
* Variable speed from 65-4500rpm
* Double 55° dovetail guide way is adopted on both Y and Z axis.
* One shot lubrication
* Fitted with precision ball screws for utmost accuracy
* Comes with power rise and fall on X axis
* X & Y axis are fitted with aglin power feeds (Taiwan)
Digital 3 axis readout is Sino brand
MILLING MACHINE: X6325D /TM240 NT40 1 PH (BALL SCREWS)
SKU:
MM-228510
* The TM-240 (X6323B) is a turret style milling machine.
* Fully tiliting, swivelling & rotating head.
* The saddle guideways are lined with turcite wearable material.
* Hardened & precision ground work table and guideways.
* High quality meehanite cast body.
* Chromed and ground spindle.
* Double 55° dovetail guide way is adopted on both Y and Z axis.
* One shot lubrication.
MILLING MACHINE: TM270 (M6325D) TURRET 3PH NT40
SKU:
MM-228615
* The TM-270 (X6325D) is a turret style milling machine.
* Head is fully tiliting, swivelling & rotating
* The saddle guideways are lined with turcite wearable material.
* Hardened & precision ground work table and guideways.
* High quality meehanite cast body.
* Chromed and ground spindle
* Variable speed from 65-4500rpm
* Double 55° dovetail guide way is adopted on both Y and Z axis.
* One shot lubrication
* Comes with power rise and fall on X axis
* X & Y axis are fitted with aglin power feeds (Taiwan)
Digital 3 axis readout is Sino brand
MILLING MACHINE: 5H 1270 X 254MM TABLE TURRET TAIWAN
SKU:
MM-244132
* The 5H model comes with standard 1270mm table, with an option of 1372mm.
* Table is hardened and ground for durability and long service life.
* Powerful 5hp motor.
* Large diameter quill (105mm) for rigid milling performance.
* Y-Z axie rubber way cover.
* Auto lubrication system.
* Electrical cabinet.
* Made in Taiwan.
MILLING MACHINE: 4VS 1370 X 254MM TABLE TURRET TAIWAN
SKU:
MM-244242
* The 4VS model turret milling machine comes with two table options - 1270 & 1370mm.
* Table and guideways are hardened and precision ground.
* Y-Z axis have rubber way cover for protection.
* Auto lubrication system.
* Electrical cabinet.
* One shot lubrication system.
* Ways are X & Y are Tercite B coated.
* Fitted with power feed on X travel.
* Made in Taiwan.
MILLING MACHINE: V2 1224 X 228MM TABLE NT40 1PH TURRET
SKU:
MM-244300
* This 2V model is the smallest of the Turret milling machines made in China
* Fitted with Tawann milling head which icorperates P5 spindle bearings
Comes with E-GEO lead screws for utmost accuracy
* Fitted with 2 axis DRO
* Comes as a manual machine but you can add power feeds etc onto it
* Y-Z axes rubber way covers.
* Auto lubrication system.
* Electrical cabinet
* Shindle taper is NT40
Overhead pentant control panel for convenient
MILLING MACHINE: MDH50B NT40 1PH VM
SKU:
MM-280823
* Small & economical knee type milling machine.
* Precision milling table with machined T-slots.
* Heavy castings & large slide surfaces for performance & stability.
* In built recyclable coolant system.
* One shot oil lubrication.
* 3 axis digital readout & X axis powerfeed.
* Ideal machine for small workshops.
