| Swing Over Bed (mm) | 330 |
|---|---|
| Swing Over X-slide (mm) | 198 |
| Swing Over Gap (mm) | 476 |
| Between Centres (mm) | 1,000 |
| Bed Width (mm) | 187 |
| Spindle Nose | D1-4 |
| Speeds (no.) | 8 |
| Speed Range (rpm) | 70 – 2,000 |
| Spindle Bore (mm) | 38 |
| Spindle Taper | MT5 |
| Metric Threading (M) | 0.45 – 10 |
| Imperial Threading (tpi) | 2-1/4 – 40 |
| Tailstock Taper | MT3 |
| Tool Height (mm) | 16 |
| Motor (kW) | 1.5 |
| Voltage (V) | 230 |
| Weight Nett / Gross (kg) | 620 / 670 |
| Volume (m³) | 2.22 |
| Packing Size L x W x H (mm) | 1,950 x 760 x 1,500 |
| 7030 |

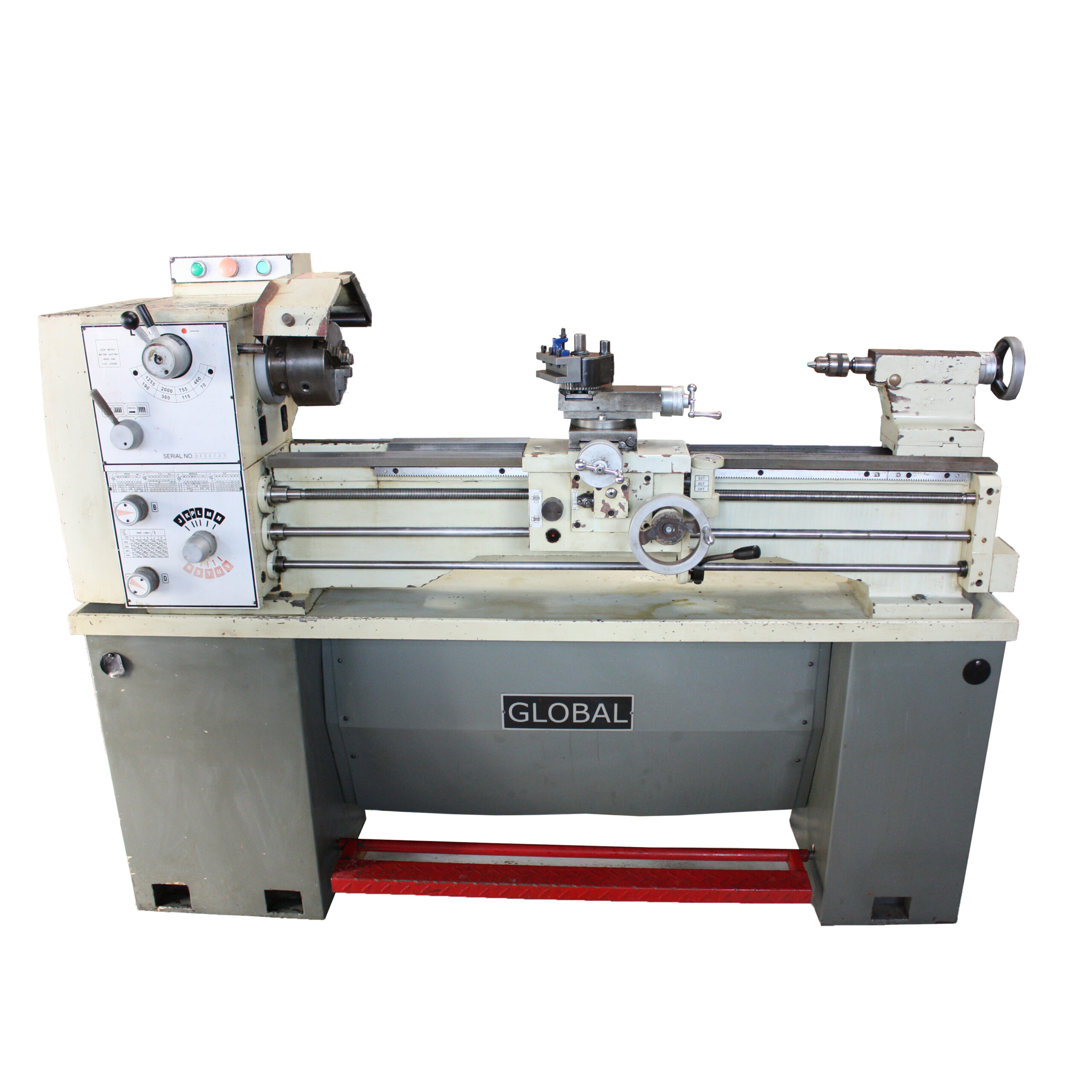

Description
SKU : USD100383
Price per Unit
$3,500.00 (Exc GST)
$4,025.00 (Inc GST)
FEATURES:
* Inductioned hardened and precision ground V bed.
* D1-4 spindle supported by high quality tapered roller bearing.
* Hardened and ground gears in head stock.
* Automatic feed and threading fully interlocked.
* Gearbox has large feed and threading function.
| Weight | 620 kg |
|---|---|
| Dimensions | 1.95 × 0.75 × 1.56 cm |
Specifications
Description
Reviews (0)
Shipping & Delivery
Related products
LATHE: GOSAN 1440 356 X 1000MM TURNPOWER 3PH
SKU:
L--109142
* Gosan has been building lathes for over 35 years.
* Heavy duty geared head lathe.
* Hardened and ground gears.
* Hardened and ground bed-way.
* Open type chip tray can be pulled out easily to remove chip.
* Foot brake giving rapid braking.
* Emergency stop button equipped on the front of headstock.
* Jog button for easy gear engagement and inching spindle.
* Extra safety switch shuts down machine entirely for changing belt or gear for threading cutting.
LATHE: GOSAN 1440 356 X 1000MM 1PH VARIABLE SPEED
SKU:
L--109150
* Gosan has been building lathes for over 35 years.
* Heavy duty geared head lathe.
* Hardened and ground gears.
* Hardened and ground bed-way.
* Open type chip tray can be pulled out easily to remove chip.
* Foot brake giving rapid braking.
* Emergency stop button equipped on the front of headstock.
* Jog button for easy gear engagement and inching spindle.
* Extra safety switch shuts down machine entirely for changing belt or gear for threading cutting.
LATHE: GOSAN 1440V 356 X 1000MM TURNPOWER 3PH VARIABLE SPEED
SKU:
L--109152
* Gosan has been building lathes for over 35 years.
* Heavy duty geared head lathe.
* Hardened and ground gears.
* Hardened and ground bed-way.
* Open type chip tray can be pulled out easily to remove chip.
* Foot brake giving rapid braking.
* Emergency stop button equipped on the front of headstock.
* Jog button for easy gear engagement and inching spindle.
* Extra safety switch shuts down machine entirely for changing belt or gear for threading cutting.

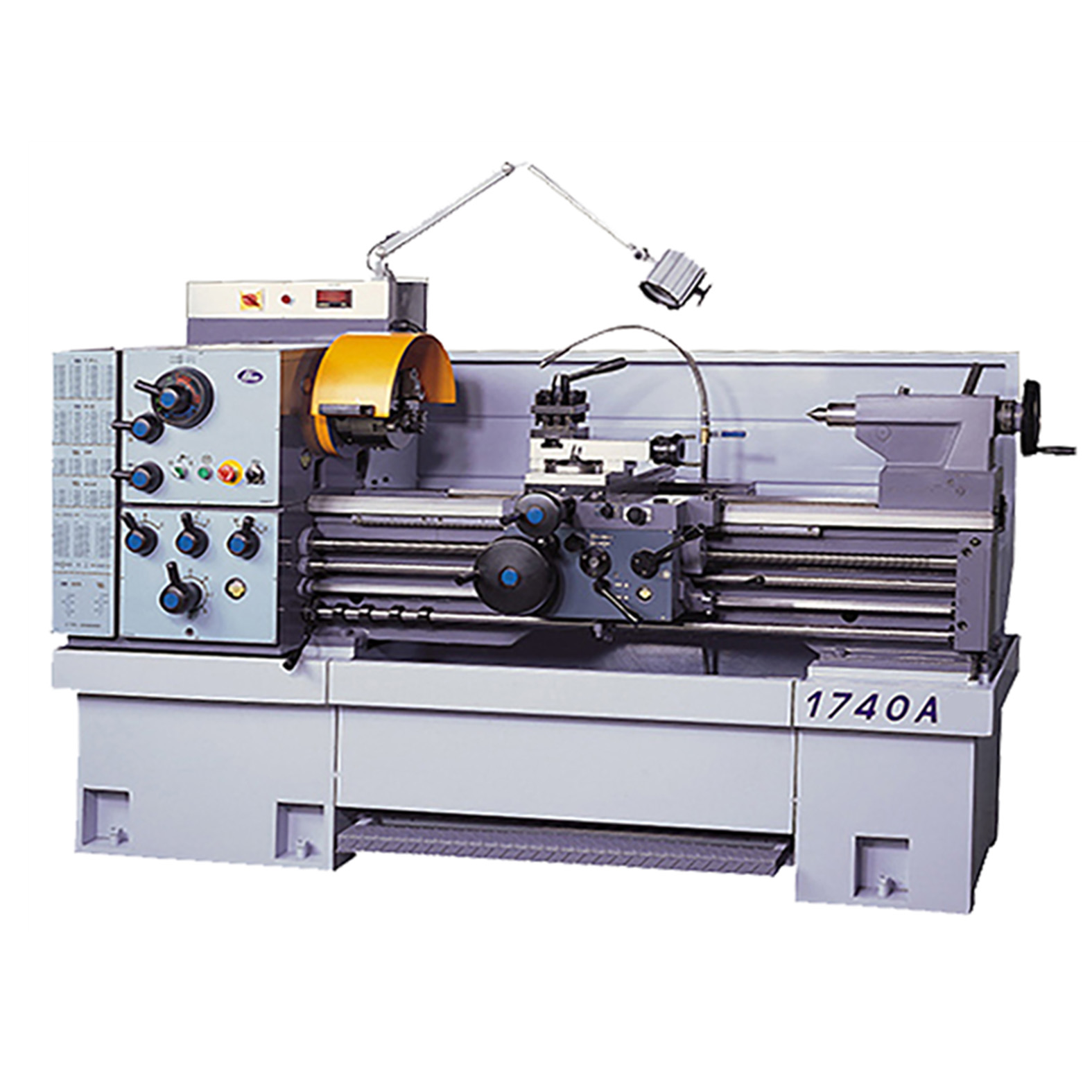

LATHE: GOSAN 1740A 434 X 1000MM 7.5HP
