LATHE: BL-336D 300 X 900 X 38MM BORE DRO, 1 PHASE
Excl. GST: $8,800.00
Incl. GST: $10,120.00
Incl. GST: $10,120.00
LATHE: EL300 300 X 750 X 38MM BORE ELOTRONIC 1PH V/S
Excl. GST: $9,900.00
Incl. GST: $11,385.00
Incl. GST: $11,385.00

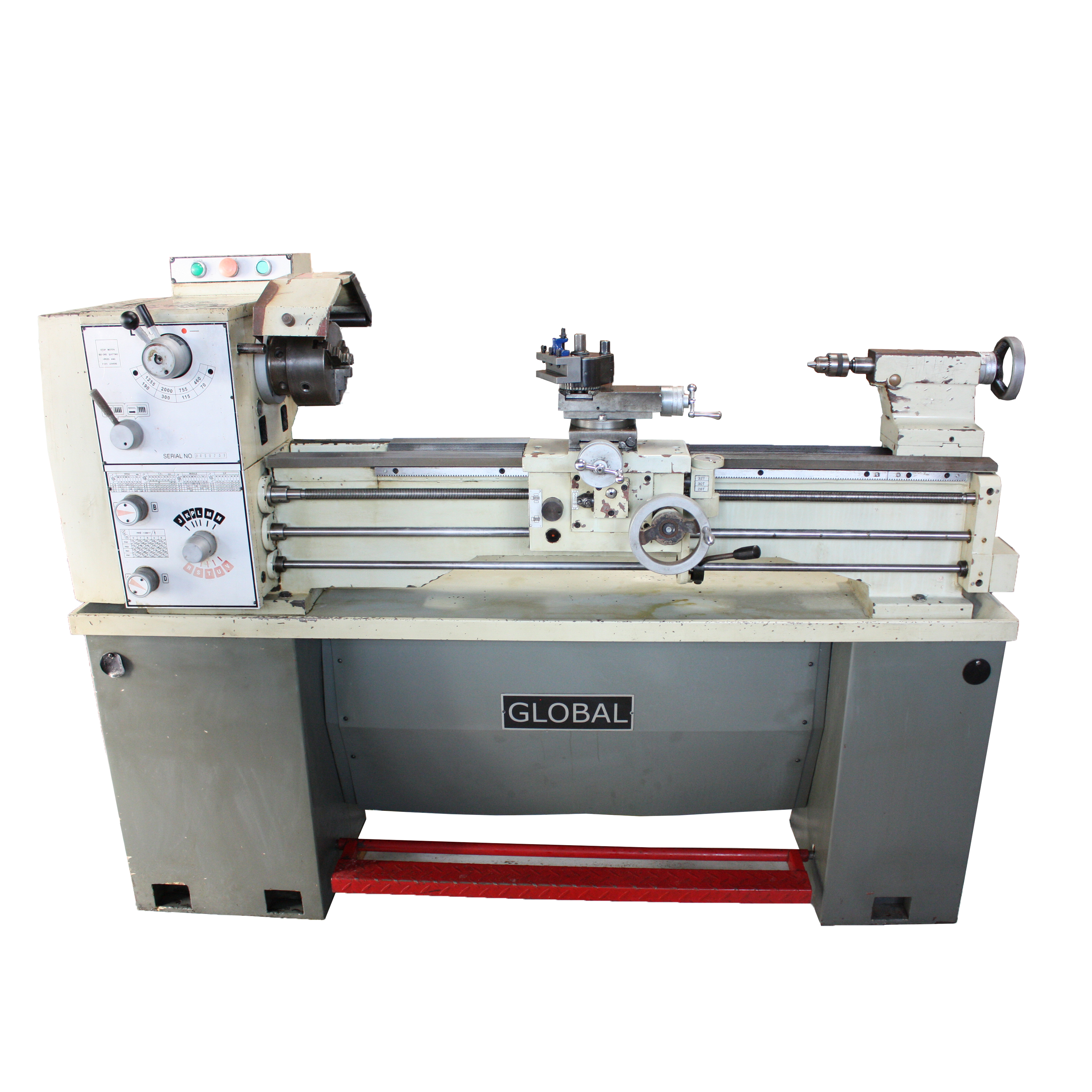

LATHE: TPG1340 330 X 1000 X 38MM BORE 2HP 1 PHASE
Excl. GST: $3,500.00
Incl. GST: $4,025.00
* Inductioned hardened and precision ground V bed.
* D1-4 spindle supported by high quality tapered roller bearing.
* Hardened and ground gears in head stock.
* Automatic feed and threading fully interlocked.
* Gearbox has large feed and threading function.
| Weight | 620 kg |
|---|---|
| Dimensions | 1.95 × 0.75 × 1.56 cm |
In stock
Description
| Swing Over Bed (mm) | 330 |
|---|---|
| Swing Over X-slide (mm) | 198 |
| Swing Over Gap (mm) | 476 |
| Between Centres (mm) | 1,000 |
| Bed Width (mm) | 187 |
| Spindle Nose | D1-4 |
| Speeds (no.) | 8 |
| Speed Range (rpm) | 70 – 2,000 |
| Spindle Bore (mm) | 38 |
| Spindle Taper | MT5 |
| Metric Threading (M) | 0.45 – 10 |
| Imperial Threading (tpi) | 2-1/4 – 40 |
| Tailstock Taper | MT3 |
| Tool Height (mm) | 16 |
| Motor (kW) | 1.5 |
| Voltage (V) | 230 |
| Weight Nett / Gross (kg) | 620 / 670 |
| Volume (m³) | 2.22 |
| Packing Size L x W x H (mm) | 1,950 x 760 x 1,500 |
| 7030 |
Shipping & Delivery
Related products
LATHE: GOSAN 1440V 356 X 1000MM TURNPOWER 3PH VARIABLE SPEED
SKU:
L--109152
* Gosan has been building lathes for over 35 years.
* Heavy duty geared head lathe.
* Hardened and ground gears.
* Hardened and ground bed-way.
* Open type chip tray can be pulled out easily to remove chip.
* Foot brake giving rapid braking.
* Emergency stop button equipped on the front of headstock.
* Jog button for easy gear engagement and inching spindle.
* Extra safety switch shuts down machine entirely for changing belt or gear for threading cutting.
LATHE: GOSAN 1740A 434 X 1000MM 7.5HP
SKU:
L--109170
* Heavy duty geared head lathe, with hardened and ground gears.
* 3-point supported spindle using 2 precision taper roller bearings and 1 ball bearing.
* Spray lubrication system used for headstock.
* One shot lubrication pump for cross slide and bed-ways.
* Quick-change universal gearbox for inch, metric, DP and MP threading.
* Adjustable overload clutch in apron ensures proper cutting load.
* Cross slide screw is permanently immersed in oil and supported by thrust bearing.
* One piece base casting for maximum rigidity.
LATHE: GOSAN 1740AV 434 X 1000MM VARIABLE SPEED
SKU:
L--109172
* Heavy duty geared head lathe, with hardened and ground gears.
* 3-point supported spindle using 2 precision taper roller bearings and 1 ball bearing.
* Spray lubrication system used for headstock.
* One shot lubrication pump for cross slide and bed-ways.
* Quick-change universal gearbox for inch, metric, DP and MP threading.
* Adjustable overload clutch in apron ensures proper cutting load.
* Cross slide screw is permanently immersed in oil and supported by thrust bearing.
* One piece base casting for maximum rigidity.
LATHE: GOSAN 1760A 434 X 1500MM 7.5 HP
SKU:
L--109180
* Heavy duty geared head lathe, with hardened and ground gears.
* 3-point supported spindle using 2 precision taper roller bearings and 1 ball bearing.
* Spray lubrication system used for headstock.
* One shot lubrication pump for cross slide and bed-ways.
* Quick-change universal gearbox for inch, metric, DP and MP threading.
* Adjustable overload clutch in apron ensures proper cutting load.
* Cross slide screw is permanently immersed in oil and supported by thrust bearing.
* One piece base casting for maximum rigidity.
LATHE: GOSAN 1760AV 434 X 1500MM VARIABLE SPEED
SKU:
L--109182
* Heavy duty geared head lathe, with hardened and ground gears.
* 3-point supported spindle using 2 precision taper roller bearings and 1 ball bearing.
* Spray lubrication system used for headstock.
* One shot lubrication pump for cross slide and bed-ways.
* Quick-change universal gearbox for inch, metric, DP and MP threading.
* Adjustable overload clutch in apron ensures proper cutting load.
* Cross slide screw is permanently immersed in oil and supported by thrust bearing.
* One piece base casting for maximum rigidity.
LATHE: GL-6236K 360 x 1000 X 51MM BORE 1 PHASE
SKU:
L--120005
* Hardened precision ground gears in headstock.
* Induction hardened precision ground V way bedways.
* D1-5 spindle supported by high quality tapered roller bearings.
* Large 51mm spindle bore for bar work.
* Gap bed for larger diameter work pieces.
* Independent leadscrew & feed rod.
* Automatic feed & threading.
* Fitted with digital readout, quickchange toolpost.
LATHE: GL-6240F 400 X 1000 X 51MM BORE, 1 PHASE
SKU:
L--120012
* This GL-6240F lathe comes with hardened and ground bedways.
* Headstock gears are hardened and ground to offer a long service life.
* Precision headstock taper rolling bearings on the spindle.
* Integrated cast iron floor stand.
* Three points support for spindle.
* 16 Speed changes 45-1800rpm
* Very rigid machine
* Emergency stop buttons on both sides of the machine for added safety !
LATHE: L22 GM6256 560 X 2000 X 103MM BORE
SKU:
L--120033
* Precision ground & supersonic frequency hardened bedways, with double wall structure for super rigidity.
* Highly accurate & rigid spindle system.
* Large 103mm spindle bore.
* Optimized design of the main drive, with hardened & ground headstock gears.
* Fitted with 2 axis digital readout, taper turning attachment.
* Over 200 thread cutting options available, in metric, whitworth, module & DP, with no gear changing required.
* Adjustable auto stop mechanism for longitudinal travel.
* Gap bed for larger diameter work pieces.
