LATHE: JESSEY STUDTURN 360 X 1000MM (TAIWAN)
Excl. GST: $21,000.00
Incl. GST: $24,150.00
Incl. GST: $24,150.00
LATHE: JESSEY GENERAL 660 X 3000 (TAIWAN)
Excl. GST: $0.00
Incl. GST: $0.00
Incl. GST: $0.00

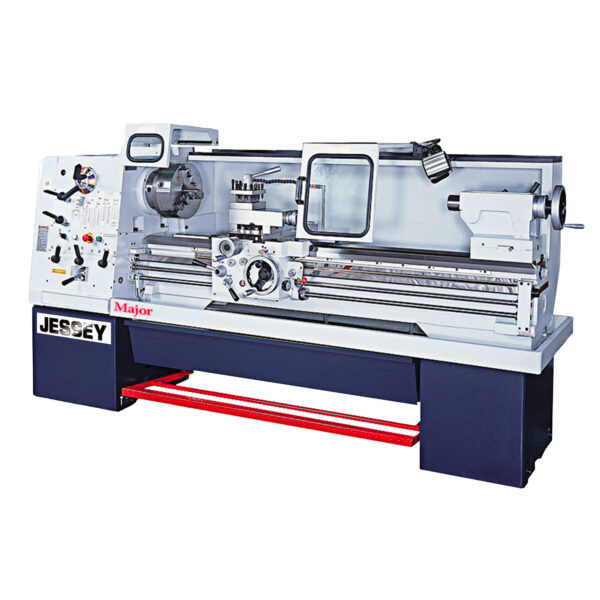

LATHE: JESSEY MAJOR 460 X 2000MM (TAIWAN)
Excl. GST: $0.00
Incl. GST: $0.00
* Rigid construction beds are induction hardened and precision ground.
* Harden and ground spindle & gears in headstock for high speed running with low noise.
* ‘One shot’ oil pump on saddle provides excellent slideways central lubrication.
* Fitted with 2 axis digital readout & quickchange toolpost.
* Two grouped change levers for 16 spindle speeds.
* Moveable front chip tray allows easy chip cleaning.
* Adjustable apron clutch for bi-directional feed pressure adjustment.
* Comprehensive range of metric, imperial, diametral & modular threads.
* Made in Taiwan.
| Weight | 2600 kg |
|---|---|
| Dimensions | 2.947 × 1.1 × 1.573 cm |
Description
| Swing Over Bed (mm) | 460 |
|---|---|
| Swing Over X-slide (mm) | 290 |
| Swing Over Gap (mm) | 710 x 220 |
| Between Centres (mm) | 2000 |
| Speeds (no.) | 16 |
| Speed Range (rpm) | 20 – 1600 |
| Spindle Bore (mm) | 80 |
| Spindle Taper | MT7 |
| Metric Threading (M) | 0.2 – 14 |
| Imperial Threading (tpi) | 2 – 72 |
| Tailstock Taper | MT5 |
| Motor (kW) | 7.5 |
| Voltage (V) | 415 |
| Weight Nett / Gross (kg) | 2300 / 2600 |
| Volume | 5.0992cm |
| Packing Size L x W x H (mm) | 2947 x 1100 x 1573 |
Shipping & Delivery
Related products
LATHE: GOSAN 1430 356 X 750MM TURNPOWER 1PHASE
SKU:
L--109141
* Gosan has been building lathes for over 35 years.
* Heavy duty geared head lathe.
* Hardened and ground gears.
* Hardened and ground bed-way.
* Open type chip tray can be pulled out easily to remove chip.
* Foot brake giving rapid braking.
* Emergency stop button equipped on the front of headstock.
* Jog button for easy gear engagement and inching spindle.
* Extra safety switch shuts down machine entirely for changing belt or gear for threading cutting.
LATHE: GOSAN 1440 356 X 1000MM 1PH VARIABLE SPEED
SKU:
L--109150
* Gosan has been building lathes for over 35 years.
* Heavy duty geared head lathe.
* Hardened and ground gears.
* Hardened and ground bed-way.
* Open type chip tray can be pulled out easily to remove chip.
* Foot brake giving rapid braking.
* Emergency stop button equipped on the front of headstock.
* Jog button for easy gear engagement and inching spindle.
* Extra safety switch shuts down machine entirely for changing belt or gear for threading cutting.
LATHE: GOSAN 1740A 434 X 1000MM 7.5HP
SKU:
L--109170
* Heavy duty geared head lathe, with hardened and ground gears.
* 3-point supported spindle using 2 precision taper roller bearings and 1 ball bearing.
* Spray lubrication system used for headstock.
* One shot lubrication pump for cross slide and bed-ways.
* Quick-change universal gearbox for inch, metric, DP and MP threading.
* Adjustable overload clutch in apron ensures proper cutting load.
* Cross slide screw is permanently immersed in oil and supported by thrust bearing.
* One piece base casting for maximum rigidity.
LATHE: GOSAN 1760A 434 X 1500MM 7.5 HP
SKU:
L--109180
* Heavy duty geared head lathe, with hardened and ground gears.
* 3-point supported spindle using 2 precision taper roller bearings and 1 ball bearing.
* Spray lubrication system used for headstock.
* One shot lubrication pump for cross slide and bed-ways.
* Quick-change universal gearbox for inch, metric, DP and MP threading.
* Adjustable overload clutch in apron ensures proper cutting load.
* Cross slide screw is permanently immersed in oil and supported by thrust bearing.
* One piece base casting for maximum rigidity.
LATHE: JESSEY MAJOR 560 X 1500MM (TAIWAN)
SKU:
L--110168
* Rigid construction beds are induction hardened and precision ground.
* Harden and ground spindle & gears in headstock for high speed running with low noise.
* 'One shot' oil pump on saddle provides excellent slideways central lubrication.
* Fitted with 2 axis digital readout & quickchange toolpost.
* Two grouped change levers for 16 spindle speeds.
* Moveable front chip tray allows easy chip cleaning.
* Adjustable apron clutch for bi-directional feed pressure adjustment.
* Comprehensive range of metric, imperial, diametral & modular threads.
* Made in Taiwan.
LATHE: GL-1440K 360 X 1000 x 40.0MM BORE 1 PHASE
SKU:
L--120002
* One piece casting base make this lathe very sturdy under all turning conditions.
* Hardened precision ground gears in headstock.
* Induction hardened precision ground V way bedways.
* D1-4 spindle supported by high quality tapered roller bearings.
* Large 40mm spindle bore for bar work.
* Fitted with quickchange toolpost and digital readout.
LATHE: 420 X 1000 X 52MM BORE, 3 PHASE
SKU:
L--120006
* This D420 lathe comes with hardened and ground bedways.
* Hardened and ground gears in the headstock to offer a long service life.
* Precision headstock taper rolling bearings on the spindle.
* Integrated cast iron floor stand.
* Three points support for spindle.
* Two speed motor.
* Digital readout and quickchange toolpost.
LATHE: TPG1340 330 X 1000 X 38MM BORE 2HP 1 PHASE
SKU:
USD100383
