LATHE: GL-1860 460 X 1500MM 80MM BORE, 3 PHASE
$23,900.00
* Large 80mm spindle bore makes this machine a very desirable machine for any workshop.
* Bed is hardened and ground offering a long wear resistant lifespan.
* All headstock gears are hardened and ground.
* No changing of gears required to cut metric or imperial threads.
* Auto stop mechanisim for longditudinal travel which can be set to the desired length.
* Full cast bed make this machine very rigid.
| Weight | 2.9 kg |
|---|---|
| Dimensions | 2.93 × 0.76 × 1.68 cm |
In stock
Description
| Swing Over Bed (mm) | 460 |
|---|---|
| Swing Over X-slide (mm) | 290 |
| Swing Over Gap (mm) | 700 |
| Between Centres (mm) | 1,500 |
| Bed Width (mm) | 335 |
| Spindle Nose | D1-8 |
| Speeds (no.) | 12 |
| Speed Range (rpm) | 42 – 1,800 |
| Spindle Bore (mm) | 80 |
| Spindle Taper | MT7 |
| Metric Threading (M) | 0.5 – 20.0 |
| Imperial Threading (tpi) | 72 – 1 5/8 |
| Tailstock Taper | MT5 |
| Tool Height (mm) | 25 |
| Motor (kW) | 5.5 |
| Voltage (V) | 415 |
| Weight Nett / Gross (kg) | 2,635 / 2,900 |
| Volume | 37410cm |
| Packing Size L x W x H (mm) | 2,930 x 760 x 1,680 |
Shipping & Delivery
Related products
LATHE: GOSAN 1740A 434 X 1000MM 7.5HP
SKU:
L--109170
* Heavy duty geared head lathe, with hardened and ground gears.
* 3-point supported spindle using 2 precision taper roller bearings and 1 ball bearing.
* Spray lubrication system used for headstock.
* One shot lubrication pump for cross slide and bed-ways.
* Quick-change universal gearbox for inch, metric, DP and MP threading.
* Adjustable overload clutch in apron ensures proper cutting load.
* Cross slide screw is permanently immersed in oil and supported by thrust bearing.
* One piece base casting for maximum rigidity.
LATHE: JESSEY MAJOR 560 X 1500MM (TAIWAN)
SKU:
L--110168
* Rigid construction beds are induction hardened and precision ground.
* Harden and ground spindle & gears in headstock for high speed running with low noise.
* 'One shot' oil pump on saddle provides excellent slideways central lubrication.
* Fitted with 2 axis digital readout & quickchange toolpost.
* Two grouped change levers for 16 spindle speeds.
* Moveable front chip tray allows easy chip cleaning.
* Adjustable apron clutch for bi-directional feed pressure adjustment.
* Comprehensive range of metric, imperial, diametral & modular threads.
* Made in Taiwan.
LATHE: GL-1880 460 X 2000MM 80MM BORE, 3 PHASE
SKU:
L--110340
* Large 80mm spindle bore makes this machine a very desirable machine for any workshop.
* Bed is hardened and ground offering a long wear resistant lifespan.
* All headstock gears are hardened and ground.
* No changing of gears required to cut metric or imperial threads.
* Auto stop mechanisim for longditudinal travel which can be set to the desired length.
* Full cast bed make this machine very rigid.

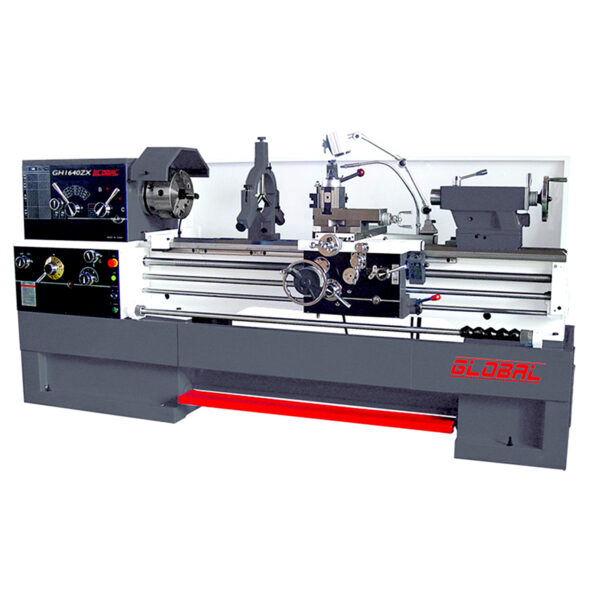

LATHE: GH-1640 410 X 1000 X 52MM BORE, 3 PHASE
SKU:
L--120007
* This GH-1640 lathe comes with hardened and ground bedways.
* Headstock gears are hardened and ground to offer a long service life.
* Precision headstock taper rolling bearings on the spindle.
* Integrated cast iron floor stand.
* Three points support for spindle.
* Two speed motor.
* Very rigid machine.
LATHE: L-6256 560 X 2000 X 80MM BORE
SKU:
L--120025
LATHE: L22 GM6256 560 X 2000 X 80MM BORE
SKU:
L--120030
* Precision ground & supersonic frequency hardened bedways, with double wall structure for super rigidity.
* Highly accurate & rigid spindle system.
* Optimized design of the main drive, with hardened & ground headstock gears.
* Fitted with 2 axis digital readout, taper turning attachment & quickchange toolpost.
* Over 200 thread cutting options available, in metric, whitworth, module & DP, with no gear changing required.
* Adjustable auto stop mechanism for longitudinal travel.
* Gap bed for larger diameter work pieces.
LATHE: TPG1340 330 X 1000 X 38MM BORE 2HP 1 PHASE
SKU:
USD100381
LATHE: TPG1340 330 X 1000 X 38MM BORE 2HP 1 PHASE
SKU:
USD100383
