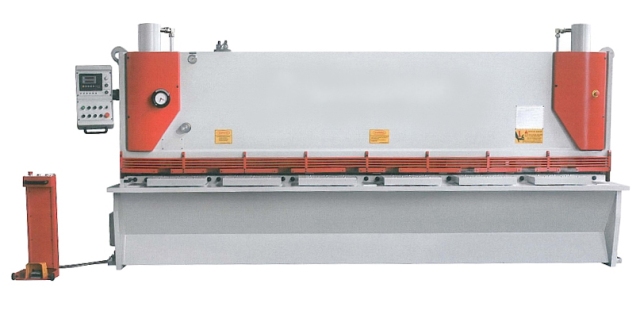

HYDRAULIC GUILLOTINE: HSH 20MM X 3200MM VARIABLE RAKE
$65,900.00
| Weight | 15600 kg |
|---|---|
| Dimensions | 4.5 × 2.5 × 1.7 cm |
Description
| MODEL | HSH 20 X 3200 |
|---|---|
| CONTROLLER | Estun E-21S |
| SHEARING CAPACITY | 20mm Mild Steel |
| BLADE LENGTH | 3200mm |
| RAKE ANGLE VARIABLE | YES |
| MAX RAKE ANGLE | 2.5 Degree |
| MIN RAKE ANGLE | 1 Degree |
| NO HOLDDOWN | 12Pcs |
| HOLDING FORCE | 30 Psi |
| BACK GAUGE TRAVEL | 900mm |
| MOTOR | 30 Kw |
| LENGTH | 4150mm |
| WIDTH | 2200mm |
| HEIGHT | 2520mm |
| WEIGHT NETT/GROSS | 15500/15600kg |
| VOLUME | 19125cm |
Shipping & Delivery
Related products
HYDRAULIC GUILLOTINE: BENZEL 4MM X 2500MM
SKU:
SRH132211
* Blade gap adjusting dial mounted on side of machine for convenient and accurate alteration for all your material thickness from 0.5 - 4mm
* This dial is designed so that a straightforward rotation clock or anti clockwise to achieve desired plate thickness
* Measurement on dial indicates and refers to actual blade gap distance in millimetres
* Controller: Estun E21S. Control unit mounted on swivel pendant arm
* Transfer balls inserted into work table allowing material to be easily moved
HYDRAULIC GUILLOTINE: BENZEL 4MM X 3200MM
SKU:
SRH132220
* This Benzel 4.0mm x L3200mm guillotine is the variable rake type
* Heavy construction with Motorised Back gauge motor is driven with Invertor
* Maximum back gauge travel is 900mm and comes with ball screw for total accuracy
* This machine is fitted with the Estun E-245 controller for easy and effective cutting control
* Fitted with photo sensor protection at the rear of this machine *
HYDRAULIC GUILLOTINE: BENZEL 4MM X 4000MM HSH
SKU:
SRH132221
* This Benzel 4.0mm x L4000mm guillotine is the swing beam type
* Heavy construction with Motorised Back gauge motor is driven with Invertor
* Maximum back gauge travel is 900mm and comes with ball screw for total accuracy
* This machine is fitted with the Estun E-215 controller for easy and effective cutting control
* Fitted with photo sensor protection at the rear of this machine
HYDRAULIC GUILLOTINE: BENZEL 6MM X 3200MM
SKU:
SRH132223
* This Benzel 6.0mm x L3200mm swing beam type
* Heavy construction with Motorised Back gauge motor is driven with Invertor
* Maximum back gauge travel is 900mm and comes with ball screw for total accuracy
* This machine is fitted with Estun E-245 controller for easy effective cutting control
* Fitted with photo sensor protection at the rear of this machine
HYDRAULIC GUILLOTINE: BENZEL 8MM X 3200MM Swing Beam
SKU:
SRH132225
HYDRAULIC GUILLOTINE: HSH 6MM X 4200MM VARIABLE RAKE
SKU:
SRH132226
HYDRAULIC GUILLOTINE: HSH 12MM X 3200MM VARIABLE RAKE
SKU:
SRH132227
HYDRAULIC GUILLOTINE: HSH 12MM X 4000MM VARIABLE RAKE
SKU:
SRH132238
