WELDING COLUMN & BOOM: CZJZ STATIONARY 2000 X 6000MM
Excl. GST: $0.00
Incl. GST: $0.00
Incl. GST: $0.00
WM-250: # GEAR 50T
Excl. GST: $95.00
Incl. GST: $109.25
Incl. GST: $109.25

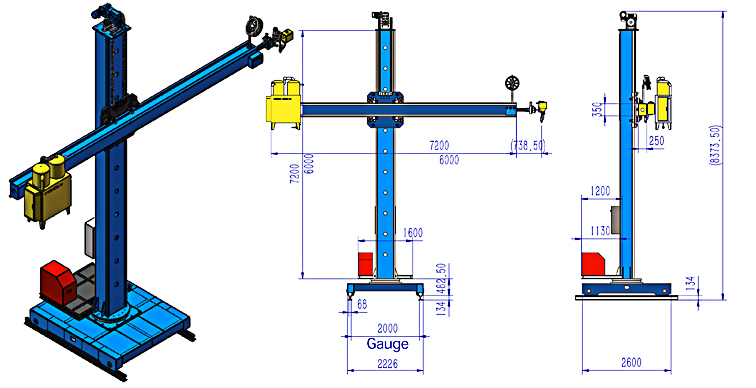

WELDING COLUMN & BOOM: MANUAL 6000 X 6000MM
Excl. GST: $0.00
Incl. GST: $0.00
* Welding Column & Boom fixed base
* Including: Column, Boom, Control box, Elevating mechanism
* Effective verticle stroke = 6 metres
* Effective horizontal stroke = 6 metres
* Boom loading at extremity = 300kg
* Extending speed + VDF 100-1000m/min
* Verticle lifting speed – 1000m/min
* Welding machines not included
| Weight | 960 kg |
|---|---|
| Dimensions | 1.85 × 0.4 × 0.51 cm |
Description
| DESCRIPTION | Welding Column & Boom |
|---|---|
| MODEL NUMBER | CZJZ-66M-SY060101 |
| VERTICLE LIFT | 6000mm |
| HORIZONTAL EXTENSION | 6000mm |
| LIFTING SPEED | 1000mm/min |
| LIFTING DRIVE | Worm |
| BOOM TRAVEL SPEED | 100-1000mm (VFD) |
| BOOM LOADING | 300kg |
| BASE SWIVEL | Manual |
| BASE TYPE | Traveling ( Rails ) |
| WEIGHT NETT/GROSS | 960kg |
| VOLUME | 0.3774cm |
| PACKING SIZE L x W x H |
Shipping & Delivery
Related products
WELDING POSITIONER: 450MM TABLE V/SPEED
SKU:
WER1000612
- 240V Welding positioner
- Can be titled from 0-90 degrees
- Foot Pedal for convenient operation
- Comes with a chuck
- Compatible with the KD series chucks.
- Variable speed controller allows you to dial in the right speed.
- Responds quickly, starts and stops very smoothly
- Suitable for Welding, Cutting, Grinding, Polishing, Finishing, Painting, Assembly, Dissemble, Shot Blasting, Runner Riser Cutting, Machining etc
WELDING POSITIONER: 500MM TABLE V/SPEED
SKU:
WER1000616
- 240V Welding positioner
- Can be titled from 0-90 degrees
- Foot Pedal for convenient operation
- Compatible with the KD series chucks.
- Variable speed controller allows you to dial in the right speed.
- Responds quickly, starts and stops very smoothly
- Suitable for Welding, Cutting, Grinding, Polishing, Finishing, Painting, Assembly, Dissemble, Shot Blasting, Runner Riser Cutting, Machining etc
WELDING POSITIONER: 1200MM TABLE V/SPEED H/DUTY
SKU:
WER1000626
- 3 Phase Welding positioner
- Can be titled from 0-90 degrees
- Foot Pedal for convenient operation
- Comes with a remote with controls.
- Compatible with the KD series chucks.
- Variable speed controller allows you to dial in the right speed.
- Responds quickly, starts and stops very smoothly
- Suitable for Welding, Cutting, Grinding, Polishing, Finishing, Painting, Assembly, Dissemble, Shot Blasting, Runner Riser Cutting, Machining etc
WELDING POSITIONER: 2000MM TABLE V/SPEED H/DUTY
SKU:
WER1000646
- 3 Phase Welding positioner
- Can be titled from 0-90 degrees
- Foot Pedal for convenient operation
- Comes with a remote with controls.
- Compatible with the KD series chucks.
- Variable speed controller allows you to dial in the right speed.
- Responds quickly, starts and stops very smoothly
- Suitable for Welding, Cutting, Grinding, Polishing, Finishing, Painting, Assembly, Dissemble, Shot Blasting, Runner Riser Cutting, Machining etc
WELDING CHUCK: 500MM SELF CENTERING
SKU:
WER1000712
WELDING CHUCK: 600MM SELF CENTERING
SKU:
WER1000716
WELDING COLUMN & BOOM: CZJZ STATIONARY 2000 X 6000MM
SKU:
WER1000860
* Welding Column & Boom ( Manual Rotating) (Manual Traveling)
* Including: Column, Boom, Control box, Elevating mechanism, Rotating machanism
* Lifting guide bracket, Welding machine holding seat, Hand pendant control.
* Effective verticle stroke = 3 metres
* Effective horizontal stroke = 3 metres
* Boom loading at extremity = 300kg
* Manual rotating +/- 180deg ( including welding machine platform )
* Extending speed + VDF 100-1000m/min
* Verticle lifting speed - 1000m/min
WELDING COLUMN & BOOM: 1000 X 1000MM W/WELDER AND POSITIONER
SKU:
WER1000894
* Welding Column & Boom with manual swivel base
* Column and Boom are manual settings
* Effective verticle stroke = 1 metres
* Effective horizontal stroke = 1 metres
* Manual rise and fall by handle on top of column
* Boom loading at extremity = 30kg
* Welding machines 400 Tig with wire feed
* Welding positioner is the BWJ-1 400mm with 400mm chuck
* Comes with 10 Litre wate tank & Pneumatic Gun
Also includes welding torch and oscillator
