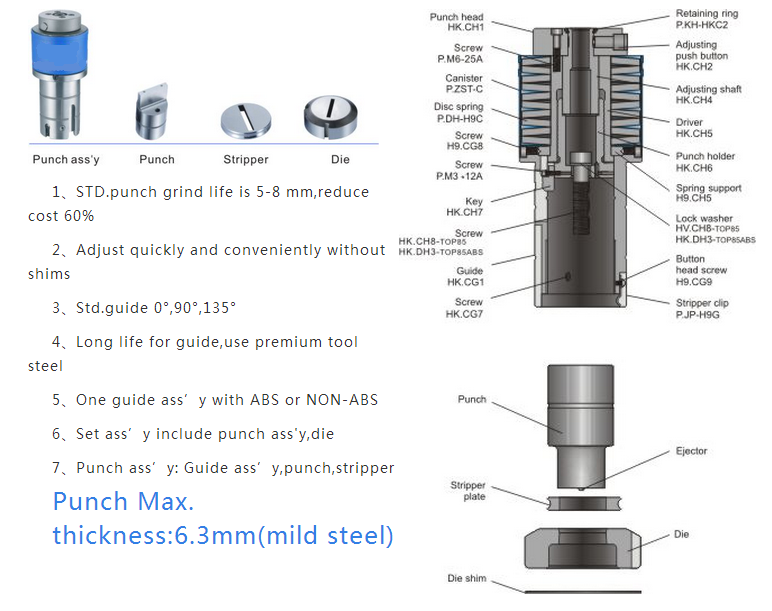

TURRET VT-300: C station THICK TURRET 43.00MM ROUND

The ideal punching machine to enter the world of punching, at an affordable price. It is the evolution of Tecnumerik in fact it has the same CNC functions as an automatic machine. The rotating head allow the orientation of any type of tool, as well as the use of multi-tools, drag tools for cutting, ribs, off-set, and tapping tool. Innovative vertical turret The strategic position of the Vertical Turret enables more complex forming operations to be carried out, thanks to the reduced encumbrance in the work area. Moreover, the operator has a better visibility of the sheet metal being worked. Maximum configuration versatility The machine configuration can be customized by inserting any kind of tool in every station. The innovative Speedy Setup system allows to equip each station in just 12 seconds. All tools are rotating (auto-index) By rotating any tool from 0° to 360° the number of tools to be purchased and the machining time is significantly reduced. Sheet metal waste is minimized thanks to the possibility of performing complex nestings. Latest servo drive technolgy with FANUC motor and FANUC Controller. Compatibility with Trumpf tools

MODEL VT-300 DESCRIPTION “D” Station Thick Turret TO SUIT VT-300 SIZE 40.0mm Square WEIGHT VOLUME

MODEL VT-300 DESCRIPTION “D” Station Thick Turret TO SUIT VT-300 SIZE 40 x 5mm Rect WEIGHT VOLUME
