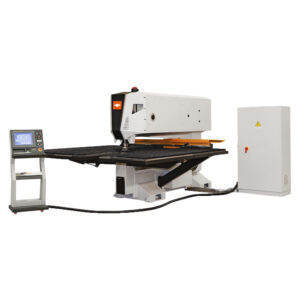

TURRET VT-300: A STATION THICK TURRET 6.8MM ROUND

The ideal punching machine to enter the world of punching, at an affordable price. It is the evolution of Tecnumerik in fact it has the same CNC functions as an automatic machine. The rotating head allow the orientation of any type of tool, as well as the use of multi-tools, drag tools for cutting, ribs, off-set, and tapping tool. Innovative vertical turret The strategic position of the Vertical Turret enables more complex forming operations to be carried out, thanks to the reduced encumbrance in the work area. Moreover, the operator has a better visibility of the sheet metal being worked. Maximum configuration versatility The machine configuration can be customized by inserting any kind of tool in every station. The innovative Speedy Setup system allows to equip each station in just 12 seconds. All tools are rotating (auto-index) By rotating any tool from 0° to 360° the number of tools to be purchased and the machining time is significantly reduced. Sheet metal waste is minimized thanks to the possibility of performing complex nestings. Latest servo drive technolgy with FANUC motor and FANUC Controller. Compatibility with Trumpf tools

One of the key features of TECHNOLOGY Italiana is the huge working area, which allow the processing of oversize sheet metal by repositioning, and enable to achieve incomparable results. It shares with TP Zeta all the advantages of the vertical turret: highest accessibility and versatility, as well as all the innovative technology of TECNOPUNCH machines. SERVO DRIVE PUNCHING UNIT: FANUC high-performance servo drive punching unit without any hydraulic oil, ensuring low energy consumption. It also includes DualCam technology for high frequency machining operations avoiding overheating of the motor VERTICAL TURRET: Groundbreaking 15-stations tool change system, unique on the market thanks to its vertical design. This feature, worldwide patented by TECHNOLOGY, allows to have the smallest possible encumbrance in the working area. It can be set up in few seconds thanks to the Speedy Setup system. “C” FRAME: It enables you to process sheets that are bigger than the machine's working range and to load them both frontally and sideways. The open "C" frame ensures the operator the highest accessibility and visibility of the working area. INTEGRATED AUTO-INDEX SYSTEM: It enables to rotate any tool from 0° to 360° DUAL MOTOR ON Y-AXIS: The TP Zeta is equipped with a dual motor for Y-axis movement that takes performances to the next level. TP Zeta can reach a punching frequency of 900 strokes/min Compatibility with Trumpf tools
