POWER FEED: AL-510S X-AXIS
Excl. GST: $620.00
Incl. GST: $713.00
Incl. GST: $713.00
SURFACE GRINDER: SGD2550H 500 X 250MM AUTO
Excl. GST: $15,300.00
Incl. GST: $17,595.00
Incl. GST: $17,595.00
SURFACE GRINDER: SG-820 Table 500 X 280MM MANUAL 3PH
Excl. GST: $8,300.00
Incl. GST: $9,545.00
* Quality castings and Precision
* Japanese P4 ball bearing supporting the spindle
* Coolant system with nozzle and flow control valve
* Cast iron machine body and stand for maximum rigidity and smooth operation
* Vertical dial graduations 0.01mm
* Cross travel graduations 0.02mm
* Manual one shot lubrication pump
* Wheel balancing stand
400 x 200mm Magnetic Chuck
* Diamond wheel dresser
* Halogen work light
| Weight | 750 kg |
|---|---|
| Dimensions | 1.45 × 1.16 × 1.96 cm |
In stock
Description
| DESCRIPTION | Surface Grinder |
|---|---|
| MODEL | SG-820 |
| MAX SURFACE GRINDING | 500 X 280mm |
| MAX DIST SPINDLE TO TABLE | 430mm |
| TABLE SPEED | Manual |
| TABLE GUIDEWAYS | V-TYPE Double Rail & Roller |
| RAPID HEAD ELEVATION | Manual Only |
| AUTO DOWN FEED | Manual Only |
| WHEEL SPEED | 2800rpm |
| WHEEL DIMENSION | 200 x 20 x 31.75mm |
| SPINDLE MOTOR | 1.5 Kw x 3 Phase 400volts |
| HYD PUMP MOTOR | Nil |
| AUTO XFEED MOTOR | Manual |
| RAPID HEAD MOTOR UP/DOWN | Manual |
| WEIGHT NETT/GROSS | 850/750kg |
| VOLUME | 3.2117cm |
| PACKING L x W x H | 1950 x 1350 x 1220mm |
Shipping & Delivery
Related products

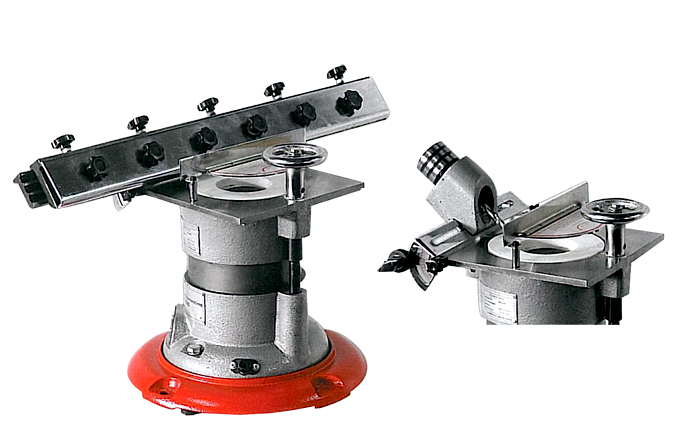

KNIFE GRINDER: WT624 550MM GRINGING LENGTH
SKU:
KG-357223
SURFACE GRINDER: SGD2550H 500 X 250MM AUTO
SKU:
SGD329200
* Hydraulic longitudinal table travel
* Quality castings and Precision Japanese P4 ball bearing supporting the spindle
* Coolant system with nozzle and flow control valve
* Cast iron machine body and stand for maximum rigidity and smooth operation
* Vertical dial graduations 0.01mm
* Cross travel graduations 0.02mm
* Manual one shot lubrication pump
* Wheel balancing stand and arbor
* 400 x 200mm magnetic chuck
* Diamond wheel dresser
* Halogen work light
