SPOT WELDER: DTN-50 50AMP 380V 2PH PNEUMATIC
SPOT WELDER: DTN-50 50AMP 380V 2PH PNEUMATIC Excl. GST: $4,500.00
Incl. GST: $5,175.00
Back to products
SPOT WELDER: DTN-75 75AMP 380V 2PH PNEUMATIC
SPOT WELDER: DTN-75 75AMP 380V 2PH PNEUMATIC Excl. GST: $5,900.00
Incl. GST: $6,785.00
SPOT WELDER: DTN-63 63AMP 380V 2PH PNEUMATIC - Image 1
Click to enlarge

SPOT WELDER: DTN-63 63AMP 380V 2PH PNEUMATIC

Excl. GST: $4,700.00
Incl. GST: $5,405.00

Weight 303 kg
Dimensions 1.03 × 0.4 × 1.76 cm
PLEASE ENQUIRE
Add to compare
Add to wishlist
SKU: WES178215 Category:
Description
DESCRIPTION Pneumatic Spot Welder
MODEL DTN-63
RATED VOLTAGE 380V 2 Phase 50hz
RATED INPUT CAPACITY 63kva
RATED INPUT CURRENT 166amp
RATED DUTY CYCLE 20%
NO LOAD VOLTAGE 0.5-67V
ARM LENGTH 430mm
WORKING STROKE 25-100mm
ELECTRODE SIZE 25mm
MAX WELD THICKNESS Aluminium 0.6+0.06
Stainless Steel 1.2+1.2
AIR CONSUMPTION 12M3/h
WATER COOLANT FLOW 6L/min
WEIGHT NETT/GROSS 300/303kg
VOLUME 0.7251cm
PACKING SIZE L X W X H
Shipping & Delivery

Related products

Add to compare

STUD WELDER CONTROL BOARD: 500W

SKU: WEB178482
Excl. GST: $980.00
Incl. GST: $1,127.00
This control board is to suit the RSR-2500 stud welder
Add to wishlist
Add to cart
Quick view
Add to compare

SPOT WELDER: DNY-3Q 3 KVA 1PH PORTABLE

SKU: WES178060
Excl. GST: $1,065.00
Incl. GST: $1,224.75
* Welds 0.5mm + 0.5mm * Single phase 30amp supply required * Rated Power 3KVA. Rated duty cycle 20% * This model comes with digital display
Add to wishlist
Read more
Quick view
Add to compare

SPOT WELDER:7900 – Portable Hand Spot Welder

SKU: WES178074
Excl. GST: $1,850.00
Incl. GST: $2,127.50
* Welds 2.0mm + 2.0mm * Single phase 30amp supply required * Rated Power 5KVA. Rated duty cycle 20% * 125mm arm length
Add to wishlist
Read more
Quick view
Add to compare

SPOT WELDER: DN-25 25KVA 380V 2 X PHASE PEDAL OPP

SKU: WES178112
Excl. GST: $2,250.00
Incl. GST: $2,587.50
* Welds 3.0mm + 3.0mm * 380v Two phase * 30amp supply required * Rated Power 25kva * Rated duty cycle 30%
Add to wishlist
Read more
Quick view
Add to compare

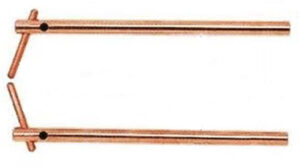

SPOT WELDER: ARMS 2PC SET LONG DN-25
