WELDING ROTATOR IDLER: 10 TON IDLER ONLY
Excl. GST: $3,950.00
Incl. GST: $4,542.50
Incl. GST: $4,542.50
LONG GER:ADAPTER M8 TO SUIT DRILL 3.5 mm
Excl. GST: $25.00
Incl. GST: $28.75
Incl. GST: $28.75

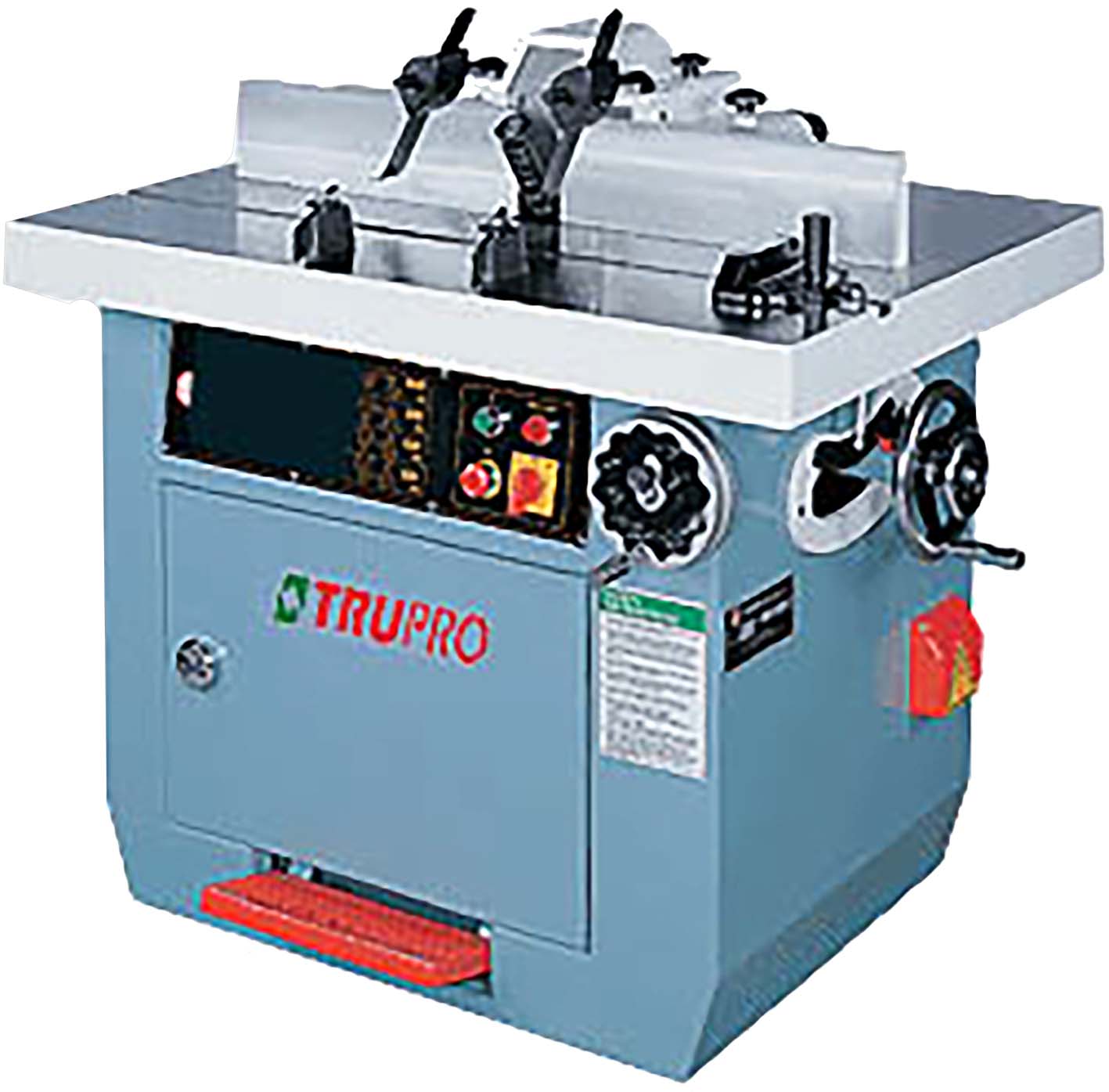

SPINDLE MOULDER: SS-512TS 5.5HP
Excl. GST: $0.00
Incl. GST: $0.00
* Spindle tilting is executed by means of a frontal handwheel with a dial indicator allowing a simple and precise setting.
* Hardened ground and electronically balanced spindle in special steel guarantees the absolute absence of vibrations.
* Quick locking of the spindle and sleeve.
* Heavy cast iron extruded aluminum fence assembly is fully adjustable.
* Automatic built-in brake stops cutter-spindle in seconds.
| Weight | 580 kg |
|---|---|
| Dimensions | 0.85 × 0.11 × 0.12 cm |
Description
| Description | Spindle Moulder |
|---|---|
| Model | SS-512TS |
| Table Size (mm) | 800 x 1050 |
| Spindle Diameter (mm) | 1 – 1/4″ |
| Speeds (no) | 4 |
| Speeds (rpm) | 3,000 – 10,000 |
| Spindle Travel (mm) | 130 |
| SPINDLE TILT | -45° / +5° |
| Max Table Insert Ø (mm) | 255 |
| Fence Size (mm) | 125 x 900 |
| Voltage (V) | 415 |
| Motor Power (kW) | 5.625 |
| Weight (kg) | 580 |
| Volume | 0.0112cm |
Shipping & Delivery
Related products
SPINDLE MOULDER: SM-28SP 3HP
SKU:
SM-337605
SPINDLE MOULDER: SK-28SP 3HP
SKU:
SM-337610
* Tilting spindle to 30ø for shaping various patterns. * Three spindle speeds can be affected by changing the pulley belts * Spindle lock for easy spindle change. * Large handwheels for adjusting spindle with lock knobs. * Large precision ground cast iron table. * Adjustable fence with dust hood and cutter guard. * Magnetic overload protection. * Forward and reverse switch.
SPINDLE MOULDER: WS-500N 2HP
SKU:
SM-337732
SPINDLE MOULDER: TANNER 1.5HP 1PH S/TABLE
SKU:
SM-337740
SPINDLE MOULDER: TANNER 3HP 1PH W0401F
SKU:
SM-337744
* The Tanner W0401F spindle moulder come with cast iron table
* Table with T-slot and mitre fence
* Alu Fence with 100mm dust outlet
* Two interchangeable spindles 3/4" & 30mm
Comes with collets to suit 1/2" & 1/4" router bits
* Splindle speeds 5300 - 8300rpm
* Versitile splinde moulder to suit most operations
