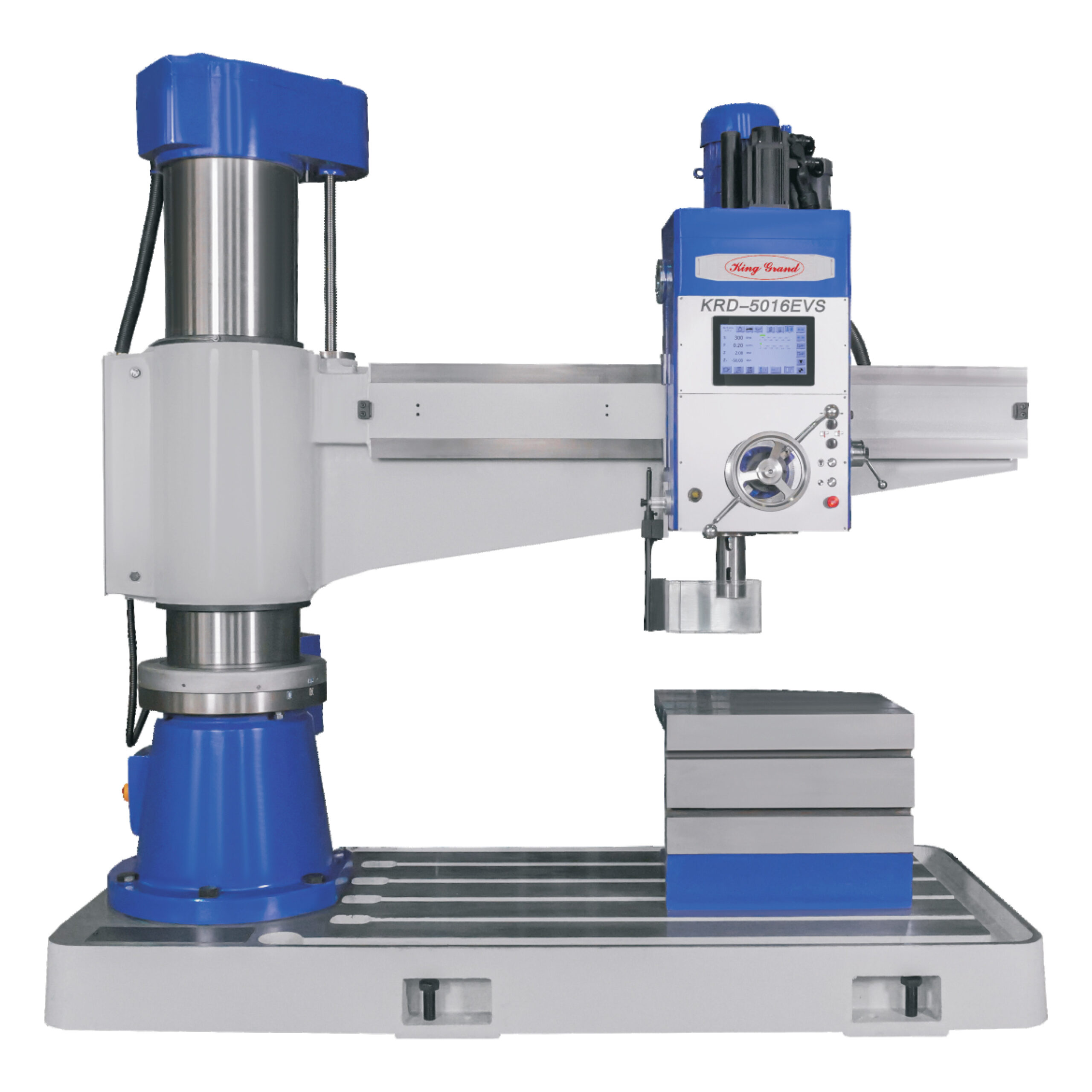

RADIAL DRILL: Z1600EVS X 1600MM SERVO VARIABLE SPEED
Excl. GST: $28,000.00
Incl. GST: $32,200.00
* This new Z5016EVS Radial Drilling machines are now available
* Uses include drilling, Tapping, Counterboring, Reaming, Boring etc
* The Z-Series Radial Drill has been developed and manufactured for over 58 years in one of the largest production facilities in the world
* It has a unique Hydraulic variable frequency motor that allows a stepless regulation of the spindle speeds including Forward/Reverse & Stop using one control lever
* Features include the new digital touch screen display panel
| Weight | 3500 kg |
|---|---|
| Dimensions | 2.73 × 1.12 × 2.57 cm |
Description
| MODEL | Z5016EVS |
|---|---|
| DRILL CAPACITY TAPPING | 50mm 30mm |
| SPINDLE QUILL TRAVEL | 315mm |
| SPINDLE TAPER | MT 5 |
| SPINDLE SPEEDS | 20 ~ 1600rpm |
| SPINDLE STEPS | Variable 2 Steps Auto Change |
| SPINDLE FEED RANGE | 0.05-3 mm/rev |
| COLUMN DIAMETER | 350mm |
| MAX ARM DISTANCE | 1615mm |
| MAX HEAD TRAVEL | 1250mm |
| SPINDLE CENTRE TO COLUNM | Min = 365mm Max =1615mm |
| SPINDLE NOSE TO BASE | Min = 365mm Max =1260mm |
| MAIN MOTOR | 5.5kw |
| ARM LIFT MOTOR | 1.5kw |
| COLUMN CLAMPING MOTOR | 370w |
| ARM CLAMPING MOTOR | 180w |
| SPINDLE CLAMPING MOTOR | 120w |
| WEIGHT NETT/GROSS | 3000/3500kg |
| VOLUME | 7.8580cm |
| PACKING L x W x H | 2730 x 1120 x 2570mm |
