BRAND | TTMC QCS-400 |
---|---|
TYPE | Up Cutting Saw |
BLADE SPEED | 2800rpm |
CLAMPING | Pneumatic Vertical Clamping |
MOTOR | 1.1 Kw |
VOLTAGE | 3 Phase |
CUTTING CAPACITY 90° | Round: 105mm Square: 100mm Rectangle: 200 x 80 |
CUTTING CAPACITY 45° | Round: 105mm Square: 80mm |
OTHER | Rectangle: 200 x 80 |
WEIGHT NETT / GROSS | 100/ 130kg |
VOLUME | 0.6096cm |
PACKING SIZE L X W X H | L800 x 600 x 1270mm |
“FLAPWHEEL: 50.0 X 20.0MM 80GRIT 6.0MM SHANK” has been added to your cart. Continue shopping
Availability : Enquire Now
Price per Unit
ex-gst
$5,500.00Inc-gst

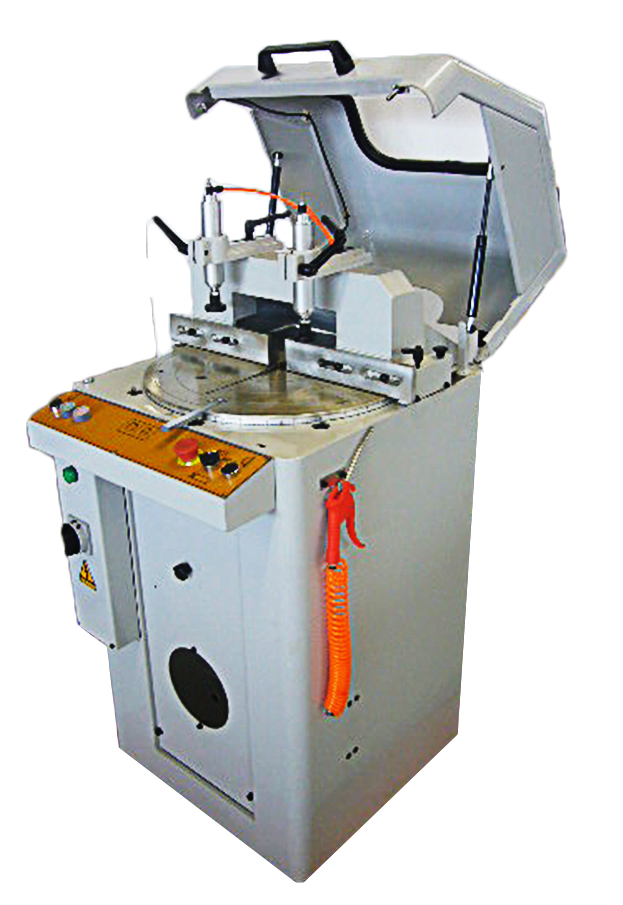

$6,325.00MITRE SAW; QCS-400 UP CUTTING
Description
SKU : ALU301040
Price per Unit
$5,500.00 (Exc GST)
$6,325.00 (Inc GST)
FEATURES:
* Suitable for cutting aluminum and alloy.
* Head can be swiveled +/- 45°.
* Pneumatic cylinder for controlled descent.
* Pneumatic clamps.
* Rotating tyable.
* Fully enclosed cutting area.
* Dust extraction chute.
Weight | 130 kg |
---|---|
Dimensions | 0.8 × 0.6 × 1.27 cm |
Specifications
Description
Reviews (0)
Be the first to review “MITRE SAW; QCS-400 UP CUTTING” Cancel reply
