| Table Size (mm) | 254 x 1370 |
|---|---|
| Travel X-axis (mm) | 920 |
| Travel Y-axis (mm) | 410 |
| Travel Z-axis (mm) | 400 |
| Quill Stroke (mm) | 127 |
| Quill Diameter (mm) | 100 |
| Spindle Taper | NT40 |
| Speeds (no.) | Variable |
| Speed Range (rpm) | 65 – 3750 |
| Max Nose to Table (mm) | 405 |
| Max Nose to Column (mm) | 650 |
| Table Slot (mm) | 16 |
| Motor (kW) | 2.25 |
| Voltage (V) | 415 |
| Weight Nett / Gross (kg) | 1490 / 1590 |
| Volume | 6.7320cm |
| Packing Size L x W x H (mm) | L 1,700mm X W 1,800 X H 2,200 |
Description
SKU : MM-228610
Price per Unit
$0.00 (Exc GST)
$0.00 (Inc GST)
FEATURES:

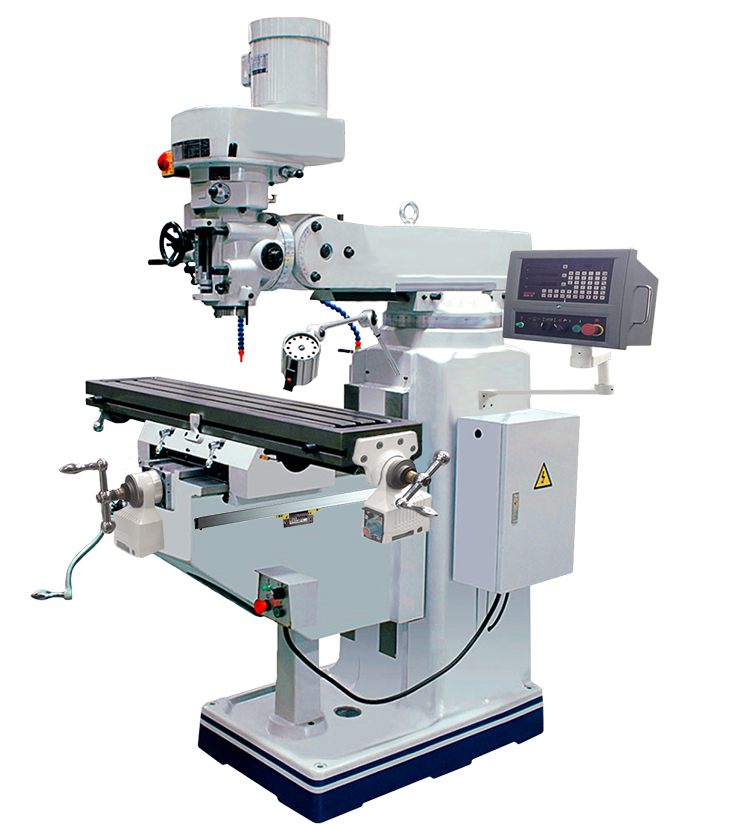

* The TM-240A (X6325A) is a turret style milling machine.
* Fully tiliting, swivelling & rotating head.
* The saddle guideways are lined with turcite wearable material.
* Hardened & precision ground work table and guideways.
* High quality meehanite cast body.
* Chromed and ground spindle.
* Double 55° dovetail guide way is adopted on both Y and Z axis.
* One shot lubrication.
| Weight | 1590 kg |
|---|---|
| Dimensions | 1.7 × 1.8 × 2.2 cm |
