| Table Size (mm) | 1500 x 330 |
|---|---|
| Travel X-axis (mm) | 1000 |
| Travel Y-axis (mm) | 368 |
| Travel Z-axis (mm) | 450 |
| Quill Stroke (mm) | 127 |
| Quill Diameter (mm) | 100 |
| Spindle Taper | NT40 |
| Speeds (no.) | Variable |
| Speed Range (rpm) | 65 – 3750 |
| Max Nose to Table (mm) | 450 |
| Max Nose to Column (mm) | 760 |
| Table Slot (mm) | 16 |
| Motor (kW) | 3.75 |
| Voltage (V) | 415 |
| Weight Nett / Gross (kg) | 2,000 / 2,200 |
| Volume | 5.272cm |
| Vari-Speed V Belts | Bando – VS9000 VC3830 |
| Packing Size | 2000 x 1800 x 2300mm |
Description
SKU : MM-228660
Price per Unit
$27,500.00 (Exc GST)
$31,625.00 (Inc GST)
FEATURES:

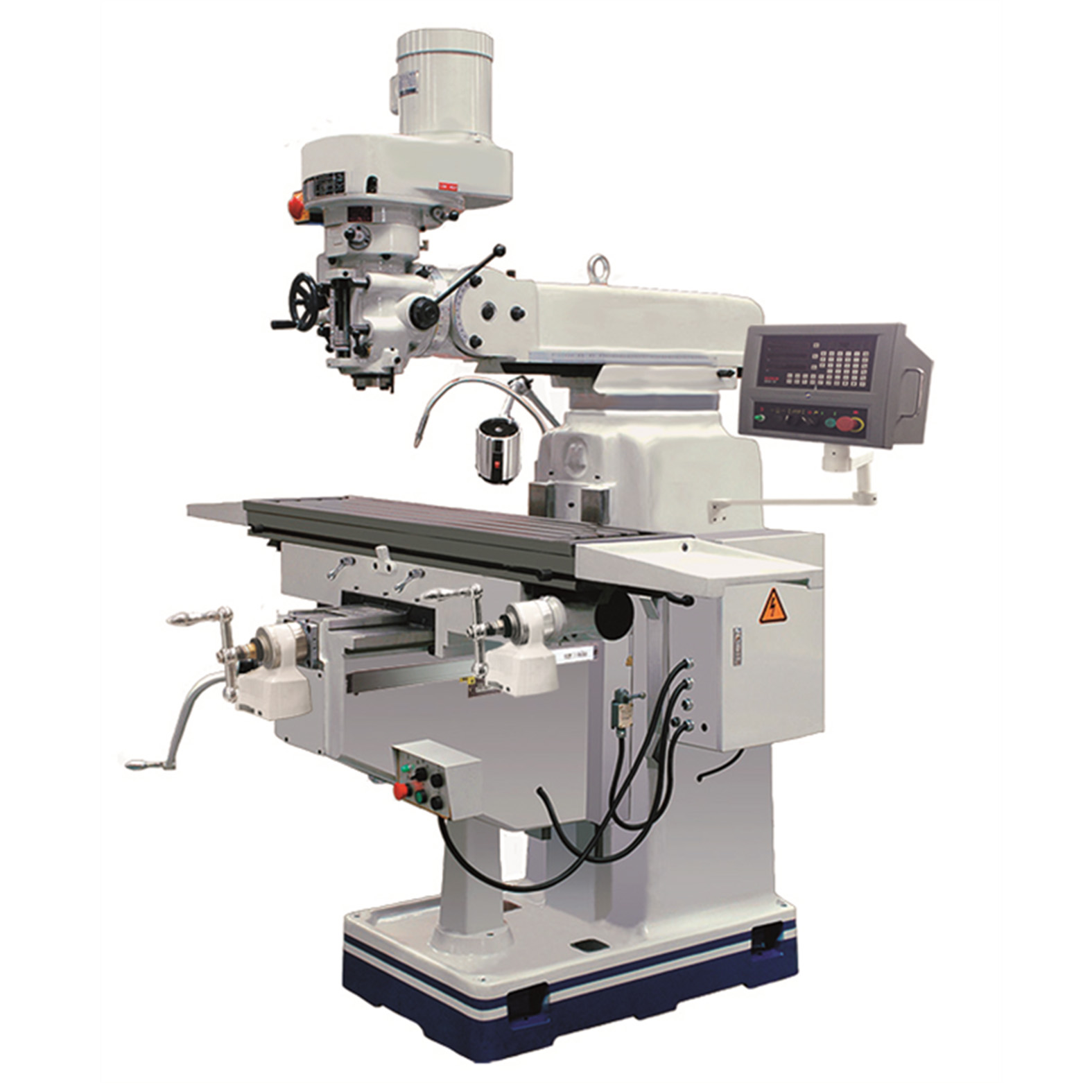

* The TM330 (X6333) is a turret style milling machine.
* Fully tiliting, swivelling & rotating head.
* The saddle guideways are lined with turcite wearable material.
* Hardened & precision ground work table and guideways.
* High quality meehanite cast body.
* Chromed and ground spindle.
* Double 55° dovetail guide way is adopted on both Y and Z axis.
* One shot lubrication.
| Weight | 2200 kg |
|---|---|
| Dimensions | 1.8 × 2.02 × 2 cm |
