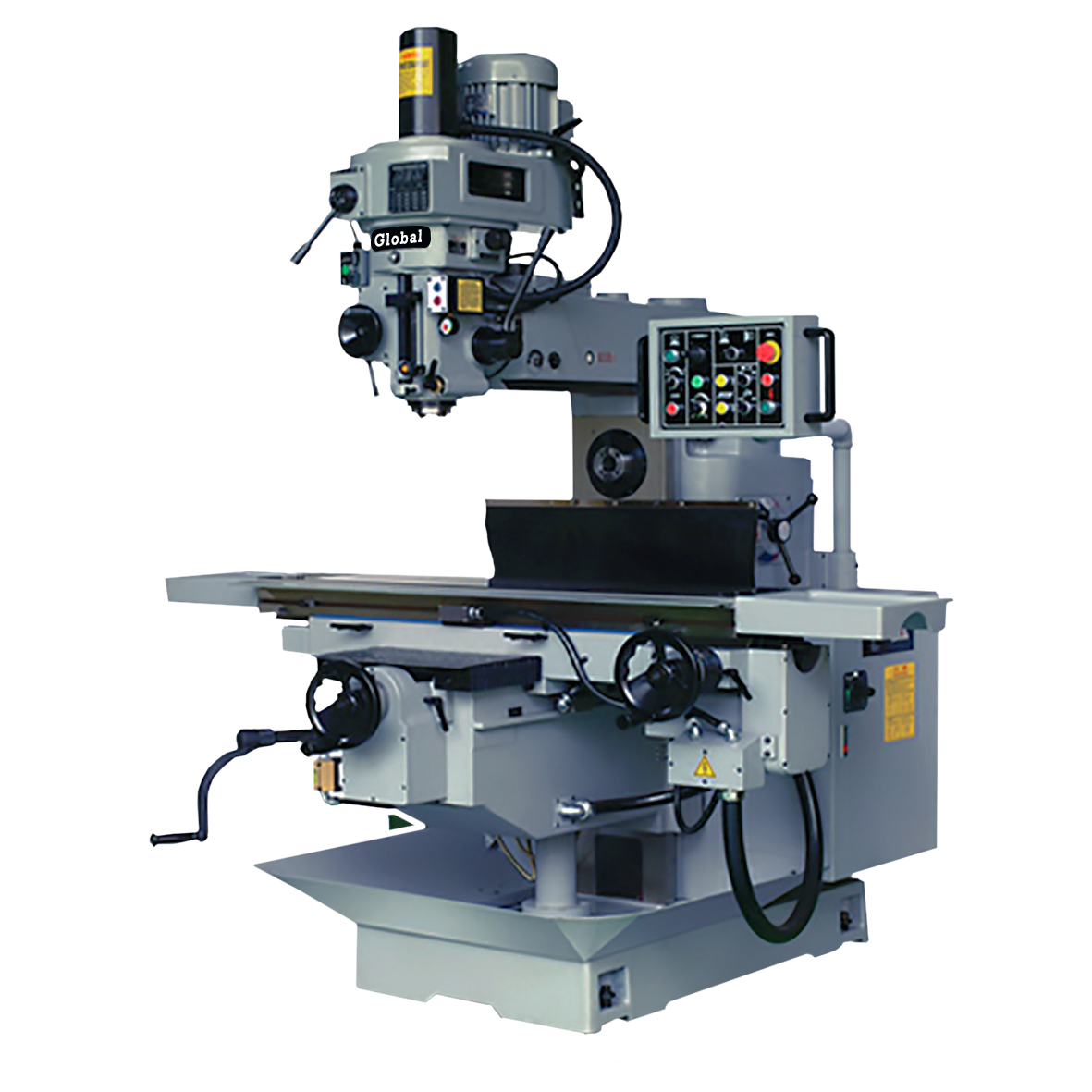

MILLING MACHINE: 7H 1350 X 305MM TABLE VERT/HORZ
$0.00
* This 7H horizontal & verticle model comes with standard 1350 x 305mm table.
* Hardened and ground for durability and long service life.
* Powered by 5hp 3 phase motor for constant performance.
* Large diameter quill (110mm) for rigid milling.
* Head can swivel 45 deg both left & right.
* Power feed to table with rapids
* Powered verticle rise and fall.
* Y-Z axis rubber way cover.
* Auto lubrication system.
* Electrical cabinet.
* Made in Taiwan.
| Weight | 2430 kg |
|---|---|
| Dimensions | 2.05 × 1.84 × 2.38 cm |
Description
| Table Size (mm) | 1350 x 305 |
|---|---|
| Travel X-axis (mm) | 970 |
| Travel Y-axis (mm) | 400 |
| Travel Z-axis (mm) | 400 |
| Quill Stroke (mm) | 140 |
| Quill Diameter (mm) | 110 |
| Spindle Taper | NT40 |
| Speeds (no.) | 9 Steps |
| Speed Range (rpm) | 70 – 1050 |
| Max Nose to Table (mm) | 530 |
| Max Nose to Column (mm) | 150 – 600 |
| Motor (kW) | 3.75 |
| Weight Nett / Gross (kg) | 2400 / 2430 |
| Volume | 8.9774cm |
| Packing Size L x W x H (mm) | 2050 x 1840 x 2380 |
