| Table Size (mm) | 1270 x 254 |
|---|---|
| Travel X-axis (mm) | 914 |
| Travel Y-axis (mm) | 445 |
| Travel Z-axis (mm) | 445 |
| Quill Stroke (mm) | 127 |
| Quill Diameter (mm) | 105 |
| Spindle Taper | NT40 |
| Speeds (no.) | 3 steps |
| Speed Range (rpm) | 0 – 4200 |
| Motor (kW) | 3.75 |
| Weight Nett / Gross (kg) | 1650 / 1680 |
| Volume | 5.8177cm |
| Packing Size L x W x H (mm) | 1510 x 1510 x 2240 |
Description
SKU : MM-244132
Price per Unit
$0.00 (Exc GST)
$0.00 (Inc GST)

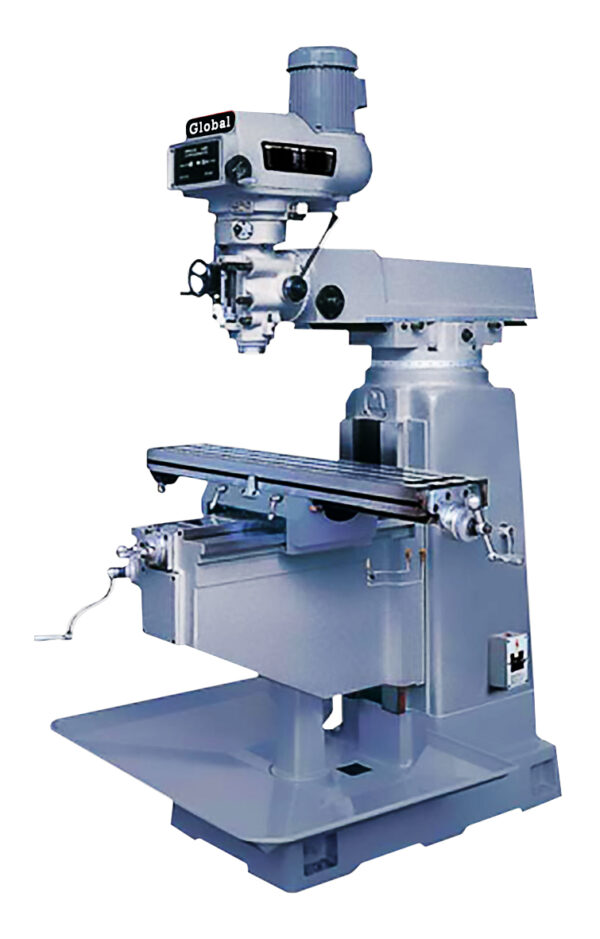

FEATURES:
* The 5H model comes with standard 1270mm table, with an option of 1372mm.
* Table is hardened and ground for durability and long service life.
* Powerful 5hp motor.
* Large diameter quill (105mm) for rigid milling performance.
* Y-Z axie rubber way cover.
* Auto lubrication system.
* Electrical cabinet.
* Made in Taiwan.
| Weight | 2430 kg |
|---|---|
| Dimensions | 1.72 × 1.51 × 2.24 cm |
Specifications
Description
Reviews (0)
Shipping & Delivery
