LINE BORING MACHINE: 36-150MM DIAMETER X 1600MM
Excl. GST: $0.00
Incl. GST: $0.00
Incl. GST: $0.00
VALVE GRINDING MACHINE: RANGE 30-90MM DIA
Excl. GST: $0.00
Incl. GST: $0.00
Incl. GST: $0.00

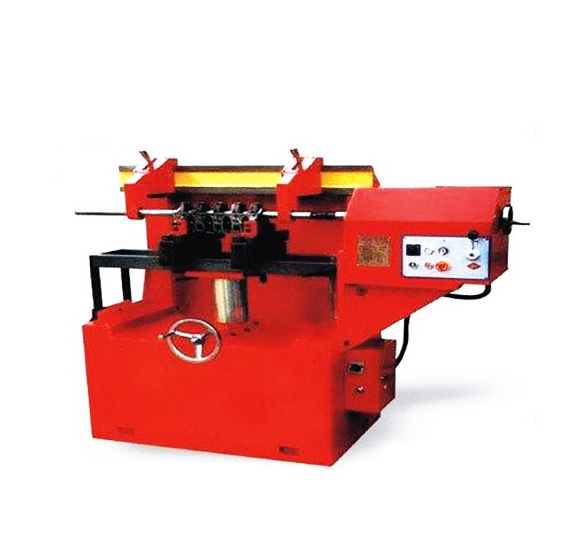

LINE BORING MACHINE: 36-200MM DIAMETER X 2000MM
Excl. GST: $0.00
Incl. GST: $0.00
* The T8108 line boring machine has a maximum working length of 800mm
* Easy to set up
* Larger models avalable *
| Weight | 2500 kg |
|---|---|
| Dimensions | 3.51 × 0.65 × 1.41 cm |
Description
| DESCRIPTION | Line Boring Machine |
|---|---|
| MODEL | T8115B X 2000 |
| MAX BORING DIAMETER | 36-200mm |
| MAX BORING LENGTH | 2000mm |
| MAX SPINDLE ELOGATION | 300mm |
| SPINDLE ROTATION SPEED | 210-945rpm (6 Steps ) |
| SPINDLE FEED RATE | 0.044-0.167mm/r |
| MOTOR POWER | 1.1kw |
| VOLTAGE | 415v 3 Phase |
| WEIGHT NETT/GROSS | 2500kg |
| VOLUME | 3.2169cm |
| PACKING | L3510 x W650 x D1410mm |
Shipping & Delivery
Related products
LINE BORING MACHINE: 24-110MM DIAMETER X 1000MM
SKU:
AUT10001140
* This is an updated model with larger capacity
* The LB1000 line boring machine has been specially designed for boring small to middle size engine blocks, camshaft & crankshaft bushings
* It can also be used for con rod bushes with a special fixture
* The boring carriage adopts a guideway movement, centre of the main shaft already adjusted in advance
* Verticle column has an up and down movement
* Machine is ridgid thus offering accurate boring with sepless spindle feed
LINE BORING MACHINE: 36-150MM DIAMETER X 1600MM
SKU:
AUT10001144
