| Swing Over Bed (mm) | 300 |
|---|---|
| Swing Over X-slide (mm) | 180 |
| Swing Over Gap (mm) | 430 |
| Between Centres (mm) | 910 |
| Spindle Nose | D1-4 |
| Speeds (no.) | 18 |
| Speed Range (rpm) | 65 – 1,810 |
| Spindle Bore (mm) | 38 |
| Spindle Taper | MT5 |
| Metric Threading (M) | 0.4 – 7.0 |
| Imperial Threading (tpi) | 4 – 60 |
| Tailstock Taper | MT3 |
| Tool Height (mm) | 12 |
| Motor (kW) | 1.5 |
| Voltage (V) | 230 |
| Weight Nett / Gross (kg) | 360 / 450 |
| Volume | |
| Packing Size L x W x H (mm) |
Description

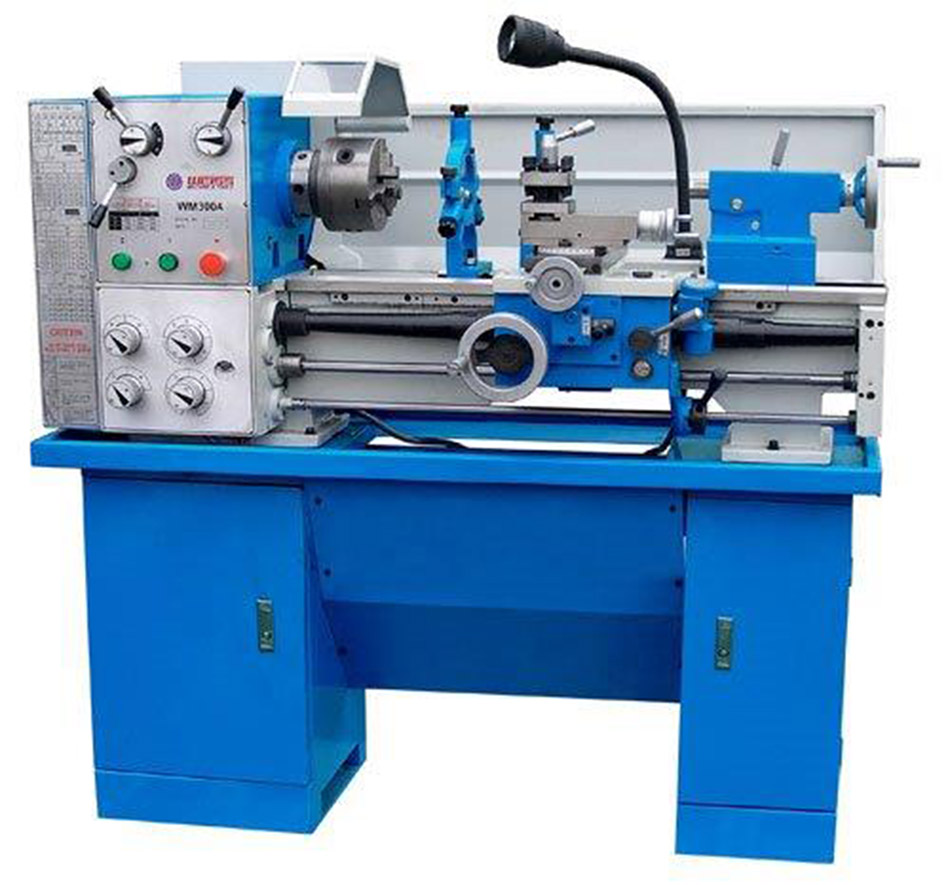

SKU : L--120500
Price per Unit
$0.00 (Exc GST)
$0.00 (Inc GST)
FEATURES:
* Enclosed oil bath headstock.
* Quick change feed gearbox for easy feed speed selection.
* Precision V bed hardened & ground.
* Change gears for metric and imperial thread cutting.
* D1-4 camlock spindle for quick chuck changes & safe reverse turning.
* Removable gap for larger diameter jobs.
| Weight | 450 kg |
|---|
