| Swing Over Bed (mm) | 510 |
|---|---|
| Swing Over X-slide (mm) | 342 |
| Swing Over Gap (mm) | 730 |
| Between Centres (mm) | 1,500 |
| Bed Width (mm) | 330 |
| Spindle Nose | D1-8 |
| Speeds (no.) | Variable |
| Speed Range (rpm) | 10 – 2,000 |
| Spindle Bore (mm) | 86 |
| Spindle Taper | MT5 |
| Metric Threading (M) | 0.2 – 14 |
| Imperial Threading (tpi) | 2 – 72 |
| Tailstock Taper | MT5 |
| Tool Height (mm) | 25 |
| Motor (kW) | 7.5 |
| Voltage (V) | 415 |
| Weight Nett / Gross (kg) | 2,100 / 2,200 |
| Volume | |
| Packing Size L x W x H (mm) |
Description
SKU : L--109234
Price per Unit
$0.00 (Exc GST)
$0.00 (Inc GST)
FEATURES:

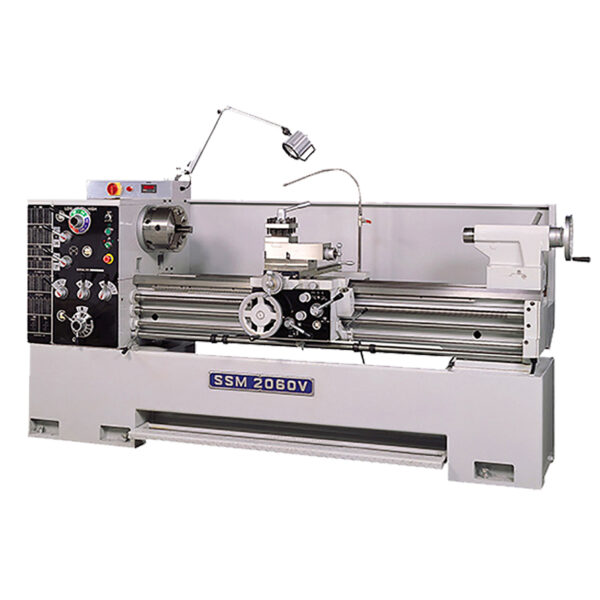

* Heavy duty geared head lathe, with hardened and ground gears.
* 3-point supported spindle using 2 precision taper roller bearings and 1 ball bearing.
* Spray lubrication system used for headstock.
* One shot lubrication pump for cross slide and bed-ways.
* Quick-change universal gearbox for inch, metric, DP and MP threading.
* Adjustable overload clutch in apron ensures proper cutting load.
* Cross slide screw is permanently immersed in oil and supported by thrust bearing.
* One piece base casting for maximum rigidity.
| Weight | 2200 kg |
|---|
Specifications
