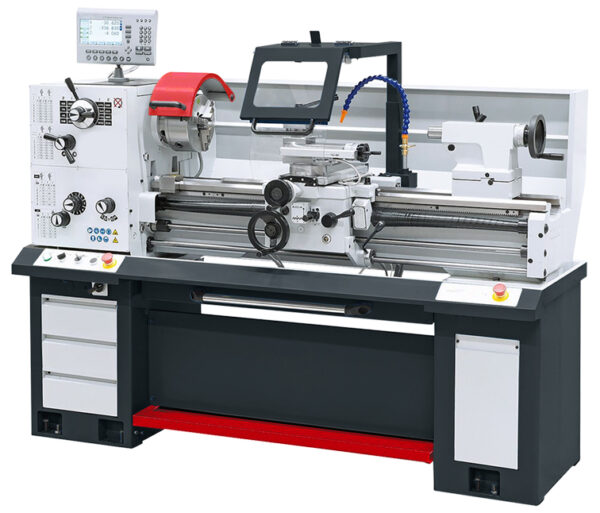

DESCRIPTION | Centre Lathe |
---|---|
MODEL | GL-6240F |
SWING OVER BED | 400mm |
SWING OVER GAP | 546mm |
SWING OVER X SLIDE | 220mm |
DISTANCE BETWEEN CENTRES | 1000mm |
BED WIDTH | 206mm |
SPINDLE BORE TAPER | MT6 |
SPINDLE NOSE | D1-5 |
SPINDLE SPEEDS | 16 Steps |
SPEED RANGE | 45 – 1800rpm |
LONGITUDINAL FEEDS | 0.043-0 653mm/r |
CROSS FEEDS | 0.015-0 220mm/r |
TAILSTOCK TAPER | MT3 |
MOTOR | 2.2kw |
VOLTAGE | 415v |
WEIGHT NETT/GROSS | 800kg |
VOLUME | 2.1158cm |
Packing Size L x W x H (mm) |
Description
SKU : L--120010
Price per Unit
$13,990.00 (Exc GST)
$16,088.50 (Inc GST)
FEATURES:
* This GL-6240F lathe comes with hardened and ground bedways.
* Headstock gears are hardened and ground to offer a long service life.
* Precision headstock taper rolling bearings on the spindle.
* Integrated cast iron floor stand.
* Three points support for spindle.
* 16 Speed changes 45-1800rpm
* Very rigid machine
* Emergency stop buttons on both sides of the machine for added safety !
Weight | 800 kg |
---|---|
Dimensions | 1.92 × 0.76 × 1.45 cm |
